Tekvox TekTouchPad 78034 Installation Manual

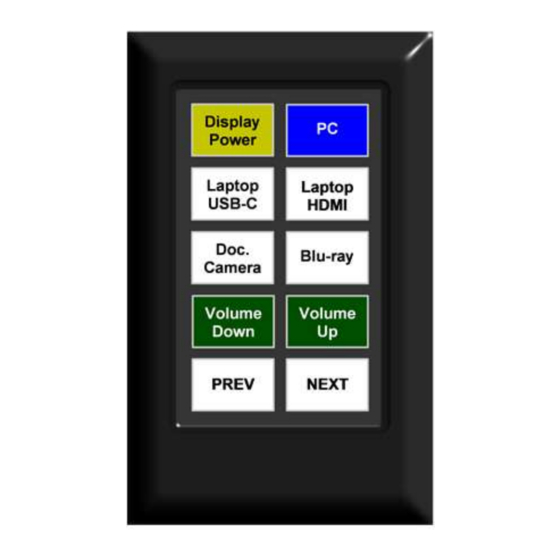

TekTouchPad - Podium
78034 Installation Guide

Included in this Product Package:

Screws (4)
TekTouchPad Back Mounting

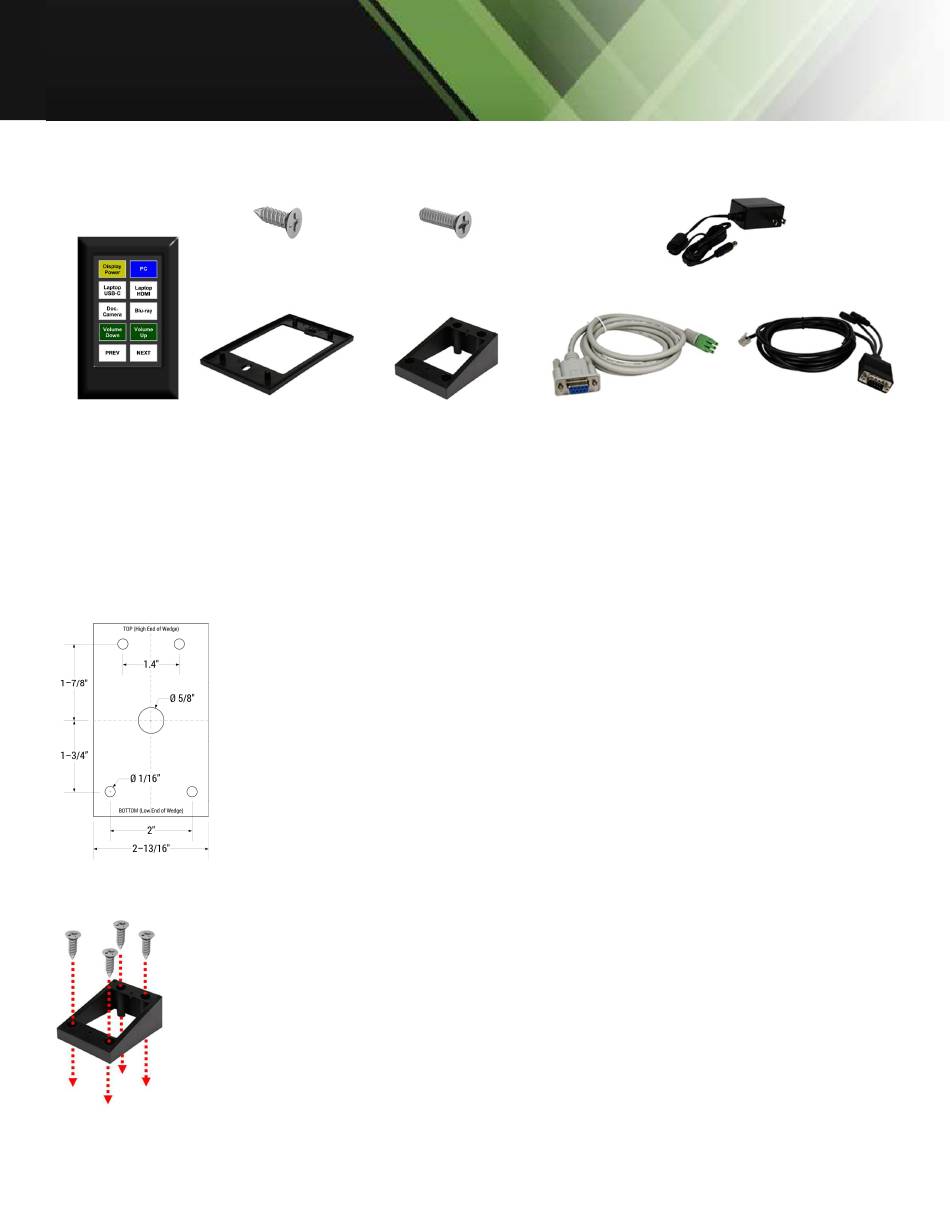

Step 1: Select Location for TekTouchPad

The TekTouchPad mounting wedge should be placed on the podium or table so that it is comfortably
accessible, and does not obstruct any displays or monitors. There must be at least 3" to either side
of the wedge to allow for normal usage. The wedge is approximately 4 3/4" long & 2 13/16" wide.
Step 2: Drill Screw & Cable Passthrough Holes
With the TekTouchPad mounting wedge in its intended location, lightly trace
around its perimeter with a pencil. Remove the wedge, and mark the positions of
all five (5) holes shown on the hole template. When mounted, the lower end of
the angled wedge face should be facing towards the user.
Using a 1/16" bit, drill the four (4) holes—one in each corner—for mounting the
wedge to a depth of ½". Next, use a 5/8" bit to drill the central cable passthrough
hole all the way through the table surface. Clean away all sawdust and/or debris
from the drilling process.

Step 3: Attach Mounting Wedge to Table

Using the four (4) provided wood screws, attach the TekTouchPad mounting wedge
to the table. With the taller end of the wedge facing away from the user, the four
mounting posts on the wedge should align with the 1/16" holes drilled in Step 2.
Tighten screws until snug, but do not overtighten, as this can damage the wedge.
Ensure that the wedge is stable before proceeding.
#6 Wood
6-32 Machine
Screws (2)
Mounting Wedge
Plate
www.tekvox.com
DC Power Supply
3-pin/DB9
Serial Cable
DB9/RJ12
Serial Cable
