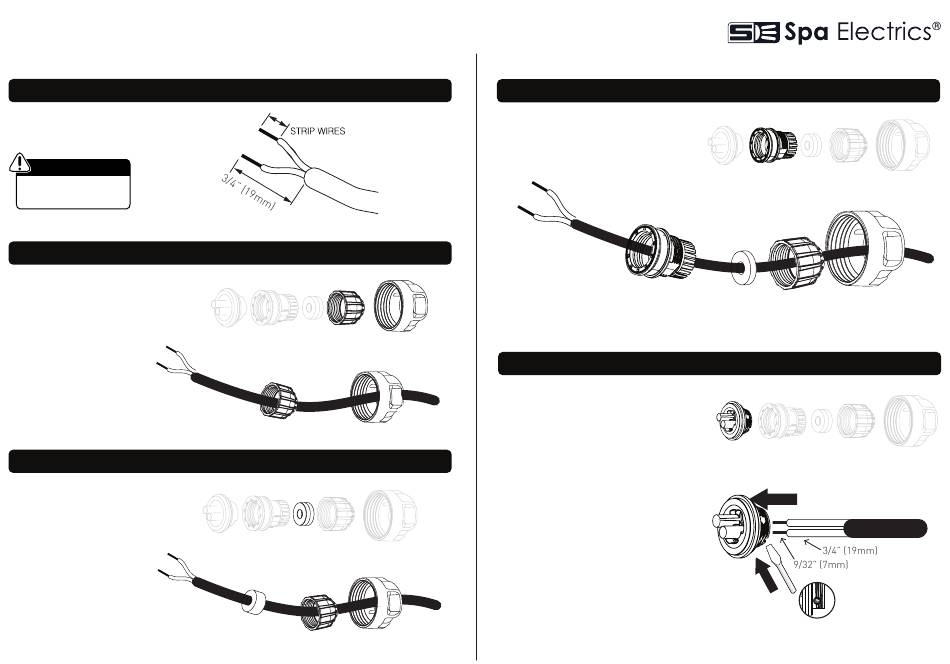

ARGON SERIES
CABLE INSTALLATION GUIDE
1: CABLE PREPARATION
STRIP POOL LIGHT CABLE
TO SPECIFIED LENGTH.
NOTE
IF CABLE LENGTH ALLOWS,
CUT CABLE BACK UNTIL
FRESH COPPER APPEARS.
2: START ASSEMBLY OF CONNECTOR PLUG
1: FEED THE CONNECTOR
COLLAR ONTO THE CABLE,
THEN FEED THE GLAND
NUT ONTO THE CABLE.
3: CHOOSE THE APPROPRIATE GLAND
SELECT THE CABLE
GLAND THAT FITS THE
EXISTING POWER CABLE
WITHOUT BULGING.
1
9/32" (7mm)
GLAND
NUT
CONNECTOR
COLLAR
CABLE
GLAND
4: CONTINUE ASSEMBLY OF CONNECTOR PLUG
FEED THE CONNECTOR
BARREL ONTO THE CABLE.
5: CONNECT THE SCREW TERMINAL END
1: FEED THE TWO
STRIPPED CABLE ENDS
THROUGH THE TWO HOLES
IN THE BACK OF THE
SCREW TERMINAL END.
2: USE A FLAT BLADE
SCREWDRIVER TO
TIGHTEN THE FASTENERS
ON EITHER SIDE OF THE
SCREW TERMINAL.
2
CONNECTOR
BARREL
SCREW TERMINAL END
1
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Spa Electrics ARGON Series
Summary of Contents for Spa Electrics ARGON Series
- Page 1 ARGON SERIES CABLE INSTALLATION GUIDE 1: CABLE PREPARATION 4: CONTINUE ASSEMBLY OF CONNECTOR PLUG STRIP POOL LIGHT CABLE FEED THE CONNECTOR TO SPECIFIED LENGTH. BARREL ONTO THE CABLE. 9/32” (7mm) NOTE CONNECTOR BARREL IF CABLE LENGTH ALLOWS, CUT CABLE BACK UNTIL FRESH COPPER APPEARS.
- Page 2 ARGON SERIES CABLE INSTALLATION GUIDE 8: ADD LANOLIN 6: START ASSEMBLY OF CONNECTOR PLUG 1: REMOVE 2: INJECT LANOLIN 3: REPLACE THE 1: CAREFULLY THREAD CONNECTOR BARREL ONTO 2 X FILLER SCREWS INTO LEFT FILLER HOLE O’RING SEALS AND SCREW TERMINAL AND TIGHTEN FIRMLY BY HAND.
