Operating Manual: XL 8
8 m Telescopic Lance Series
Telescopic Lance with 8m working height!
Telescopic Lance with 8m Working Height!
Attaches to DR 5
Attaches to DR 5 and Birchmeier
Lance Lab Ltd™
C2 Strangford Park
Ards Business Centre
Jubilee Road, Newtownards
County Down, BT23 4YH
Lance Lab Ltd™ ∙ C2 Strangford Business Park ∙ Ards Business Centre
www.lancelab.com
Jubilee Road ∙ Newtownards ∙ County Down ∙ BT23 4YH ∙ United Kingdom
028 9181 8313
(14.02.15)
Description:
•
•
•
•
•
Specification:
•
•
•
•
•
sprayers.
READ MANUAL BEFORE USE.
www.lancelab.com
XL 8 D

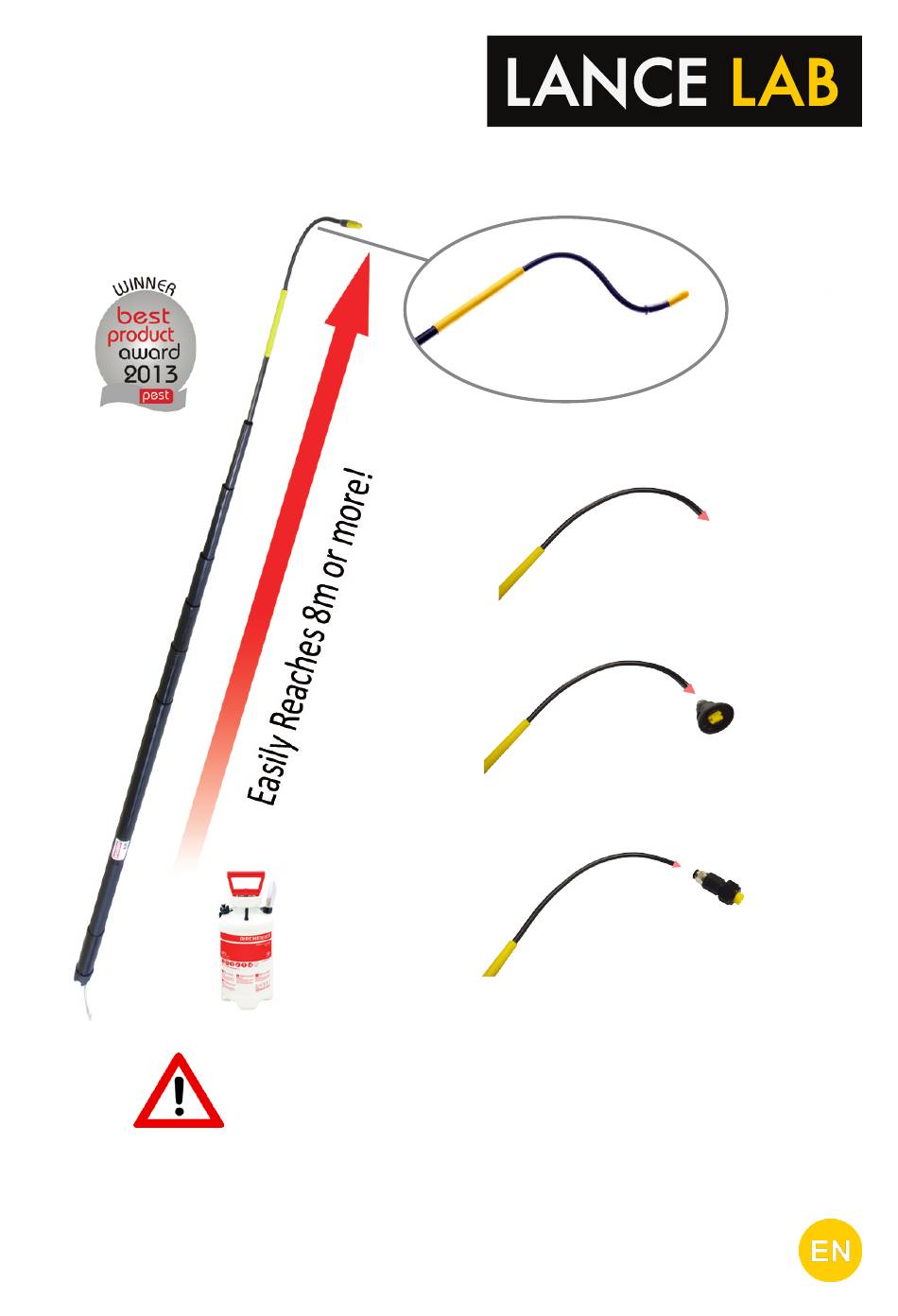

Bendable Flexi Nozzle
Allows precision dusting at height.
Lance has a working height of 1.5m to 8m.
Reduces treatment time.
Reduces the need for access equipment.
Reduces the risk of injury from using
ladders.
7 sections, 7.1m lance + tubing kit (8m)
A compact 1.3m tough carriage case.
25cm flexi tip is easily bent to the
required angle.
10cm high viz yellow sight tip.
A Spray Nozzle Kit is available for
Liquid Spraying.
UK & Ireland Distributors for XL 8 Lances
DR 5 dusting.
Cone spray liquid nozzle.
(Sold separately).
Flat fan liquid nozzle.
(Sold separately).
TM
