- Page 1 AS-1 WRITER User Manual Rev.1.0 1/ 8 AS-1 WRITER User Manual Rev.1.0 TAKUMA SEIKO CO., LTD +81-46-239-0755 +81-46-239-0750 Rev.1.0 TAKUMA SEIKO CO., LTD...
- Page 2 AS-1 WRITER User Manual Rev.1.0 2 / 8 Contents Introduction ............................3 Appearance............................. 3 Specification ............................3 Part names ............................. 4 Interface ..............................5 Operation ............................... 6 REGULATORY COMPLIANCE INFORMATION ................8 Revision History ............................. 8 Rev.1.0 TAKUMA SEIKO CO., LTD...

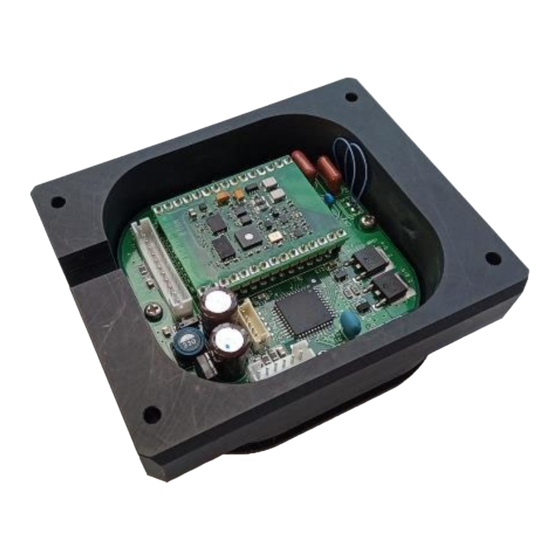

- Page 3 AS-1 has two types of the functions by factory default, AS-1 READER is an RFID reader function for use with AGV, AS-1 WRITER is an RFID writer function for writing an ID to a tag. This user manual describes the AS1 WRITER unit.
- Page 4 AS-1 WRITER User Manual Rev.1.0 4 / 8 4 Part names Rev.1.0 TAKUMA SEIKO CO., LTD...
- Page 5 AS-1 WRITER User Manual Rev.1.0 5 / 8 5 Interface CN1 (JST B12B-PH-K-S) Pin No. Pin Name Function Description DC +12V Power /OKT Execute done signal for EXE LED Data bit 7 for LCD (1602) module Data bit 6 for LCD (1602) module...
- Page 6 6 Operation Write operation: Turn on the power. Put AS-1 WRITER above the ID tag you want to write. Set R/W switch to WRITE side. Press the CLEAR, UP, X10, DOWN button and select the number you want to write ID address number.
- Page 7 AS-1 WRITER User Manual Rev.1.0 7 / 8 Read operation: Turn on the power. Put AS-1 WRITER above the ID tag you want to read. Set R/W switch to READ side. Press the EXE button. If reading was succeeded, ID address number will present on LCD display.
- Page 8 AS-1 WRITER User Manual Rev.1.0 8 / 8 7 REGULATORY COMPLIANCE INFORMATION Product Name: Address sensor unit Model Name : AS-1 WRITER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
