- Page 1 AS-1 READER User Manual Rev.1.0 1/ 6 AS-1 READER User Manual Rev.1.0 TAKUMA SEIKO CO., LTD +81-46-239-0755 +81-46-239-0750 Rev.1.0 TAKUMA SEIKO CO., LTD...
- Page 2 AS-1 READER User Manual Rev.1.0 2 / 6 Contents Introduction ............................3 Appearance............................. 3 Specification ............................3 Part names ............................. 4 Interface ..............................4 Operation ............................... 5 REGULATORY COMPLIANCE INFORMATION ................6 Revision History ............................. 6 Rev.1.0 TAKUMA SEIKO CO., LTD...

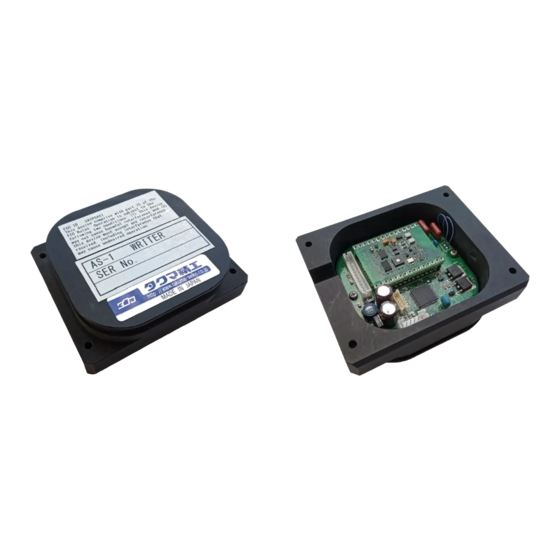

- Page 3 Address tags are used by the AGV to determine its position while driving. AS-1 has two types of the functions by factory default, AS-1 READER is an RFID reader function for use with AGV, AS-1 WRITER is an RFID writer function for writing an ID to a tag.
- Page 4 AS-1 READER User Manual Rev.1.0 4 / 6 4 Part names 5 Interface CN1 (JST B12B-PH-K-S) Pin No. Pin Name Function Description Ground DC +12V Power /Stop RF output stop signal to sleep (L: Stop mode) /Clock Data enable signal (100msec) for Data...
- Page 5 6 Operation Normal operation: Turn on the power. AS-1 READER can be read ID value (D7-D0) from RFID tag with /Clock = L. User system will be known an ID value by /Clock = L 100msec width. Stop mode: AS-1 READER can be entered stop mode (low power consumption) by /Stop = L.
- Page 6 AS-1 READER User Manual Rev.1.0 6 / 6 7 REGULATORY COMPLIANCE INFORMATION Product Name: Address sensor unit Model Name : AS-1 READER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
