Task Lighting T1 Quick Start Manual

Glass panel/Touch colour wheel/DC input/4 channel constant voltage PWM output/Wireless remote contro

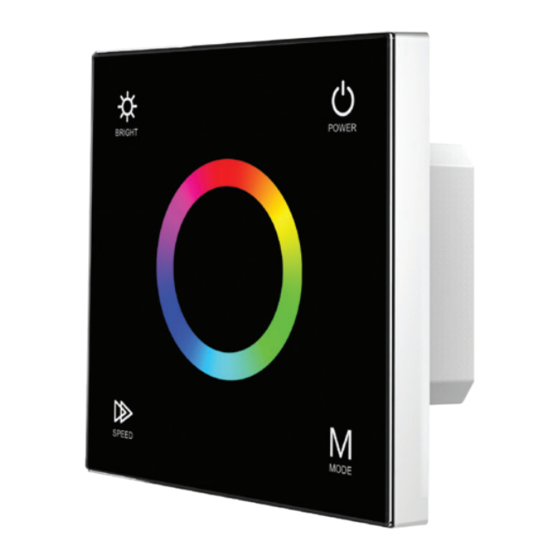

W all Mounted Touch Panel
Model No.: T1, T2, T3, T4
1-4 color/Glass panel/Touch color wheel/DC input/4 channel constant voltage PWM output/Wireless remote control
LCDMSD-T1-B (black)
LCDMSD-T1-W (white)

Features

T1
• Touch panel single colour, dual colour, RGB or RGBW PWM constant voltage controller
Features
• Ultra sensitive high strength glass touch panel with touch colour wheel in the middle and back lighting
• Compatible with our wireless 2.4G remote range
Touch panel single color, dual color, RGB or RGBW PWM constant voltage controller.
• Touch keys with chord tones and LED indicator
Ultra sensitive high strength glass touch panel with touch color wheel in the middle and backlighting.
Compatibility with
Touch keys with chord tones and LED indicator.

Technical Parameters

Technical Parameters
Input and Output
Model
Input voltage
Input current
Output voltage
Output current
Output power
Output type
Light type
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
W eight
Net weight
Gross weight
User Manual Ver 1.0.5
Wall Mounted Touch Panel
T1, T2, T3, T4
LCDMSD-T2-B (black)
LCDMSD-T2-W (white)
T2
Skydance's 2.4G single zone or multiple zone remote control
LCDMSD-T1 Black LCDMSD-T2
White
12-24VDC 12-24VDC
12.5A 12.5A
4 x (12-24)VDC 4 x (12-24)VDC
4CH,3A/CH 4CH,3A/CH
144-288W 144-288W
Constant voltage Constant voltage
Single colour
Dual colour
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
0 . 118k g
0 . 230k g
LCRGBSD-T3-B (black)
LCRGBSD-T3-W (white)
T3
.
Black LCRGBSD-T3 Black
White White
12-24VDC
12.5A
3 x (12-24)VDC
3CH,4A/CH
144-288W
Constant voltage
RGB
Environment
Operation temperature Ta: -30
Case temperature Max.
( ) T c: +85
IP rating
IP20
W arranty and Protection
5 years
Warranty
Protection Reverse Polarity
L E D S P E C I A L I S T S
l
LCRGBWSD-T4-B (black)
LCRGBWSD-T4-W (white)
T4
LVD
LCRGBWSD-T4 Black
White
12-24VDC
12.5A
4 x (12-24)VDC
4CH,3A/CH
144-288W
Constant voltage
RGBW
O O
C ~ +55 C
O C
Ke
• L
• L
•
•
Note
