User Manual for
USB Microscopes
PCE-MM 200 and PCE-MM 200 UV
Version 1.1
30.01.2012
Advertisement
Table of Contents
Related Manuals for PCE Instruments PCE-MM 200
Summary of Contents for PCE Instruments PCE-MM 200
- Page 1 From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com User Manual for USB Microscopes PCE-MM 200 and PCE-MM 200 UV Version 1.1 30.01.2012...
- Page 2 Table of Contents 1. Introduction........................3 1.1 Delivery Contents......................3 2. Safety..........................3 2.1 Warning Signal........................3 2.2 Precautions........................4 3. Specifications........................4 4. Installation the Software....................4 5. Use of the Microscope…………………………………………………………………………………………………... 5 6. Other Functions of the Software..................5 7.

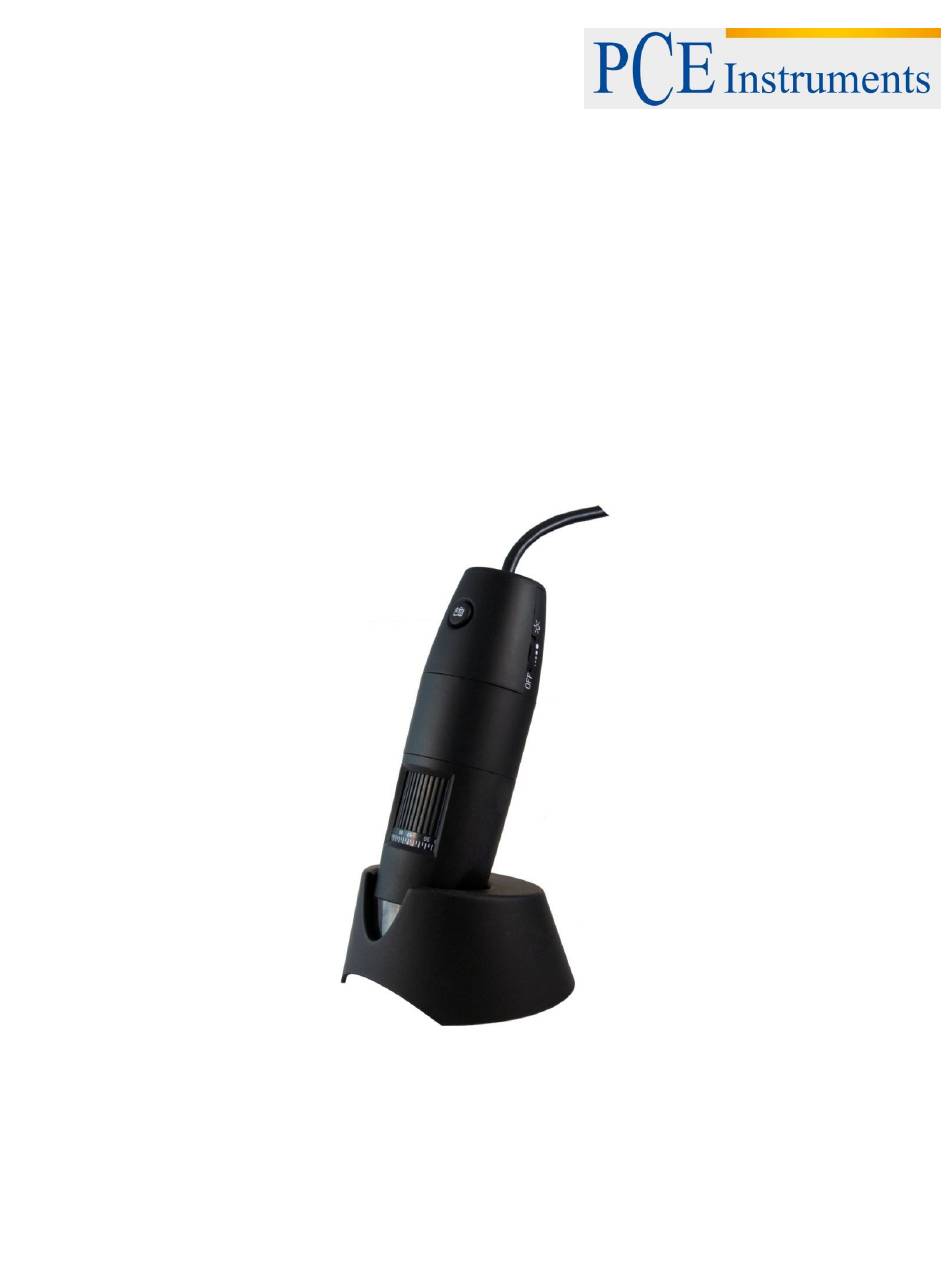

- Page 3 1 Introduction Suitable for professional, educational and recreational use, the USB microscope displays tiny details in real time on a computer screen. The microscope magnifies objects up to 200 times. Four locally mounted LED lights illuminate objects from all sides, providing brilliant, razor-sharp imagery. The UV USB microscope uses 8 UV LEDs with a wavelength of 400 nm to illuminate objects.
- Page 4 The device should be cleaned only with a damp cloth. No abrasive cleaners or cleaning agents containing solvent should be used. · The device may only be used with the accessories offered by PCE Instruments or their equivalents. · Please check the device’s housing for visible damage prior to each use. If there is visible damage, do not use the device.
- Page 5 (4) After installation of the software, connect the USB microscope to a USB port on the computer. (5) The computer directly recognizes the newly connected hardware. 5 Use of Microscope Note: Always close the software before disconnecting the USB microscope from the computer. (1) Start the software by clicking on the desktop shortcut "PCE-MM200.”...
- Page 6 Set the image resolution, video options and menu language. In the detail of an image: Draw lines, squares, circles, etc. in a photo. Perform measurements after calibrating the microscope. Choose a suitable object and mark the measuring points in the image. The measurement result is displayed. By clicking the mouse in the result, the image can be drawn.
- Page 7 PIN adjustments can be made. Text can be entered and inserted in the image. Calibration can be performed. Select a known distance in the image and enter the value in millimeters to input a mask.
- Page 8 7 Cleaning the Device Clean the device with a moist, lint-free cotton cloth and, if necessary, a gentle cleaner. Do not use abrasives or solvents.
