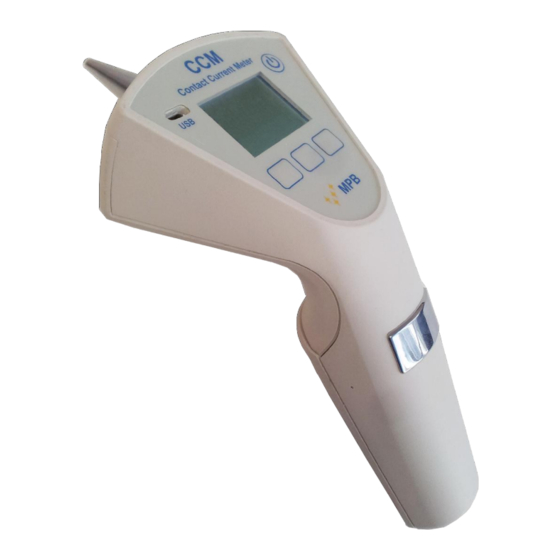

- Page 1 All manuals and user guides at all-guides.com MPB S.r.l. User Manual Contact Current Meter...
- Page 2 All manuals and user guides at all-guides.com SAFETY NOTES Read carefully before using the product Please use the device only after checking the presence and valid- ity of the safety devices (e.g. breakers, dierential switches and the conformity of the grounding) GROUND PLANE before HAND...
- Page 3 All manuals and user guides at all-guides.com Declaration of Conformity (in accordance with the Directives: EMC 89/336/EEC and Low Voltage 73/23/EEC) MPB S.r.l.
- Page 4 All manuals and user guides at all-guides.com...
- Page 5 All manuals and user guides at all-guides.com Contents General Information Principle of operation CCM Usage...
- Page 6 All manuals and user guides at all-guides.com CONTENTS Data Download JIG - General Information JIG - Functioning Figures List...
- Page 7 All manuals and user guides at all-guides.com Chapter 1 General Information...
- Page 8 All manuals and user guides at all-guides.com 1. General Information Introduction Description GROUND PLANE Composition 1.3.1 Standard Con guration...
- Page 9 All manuals and user guides at all-guides.com 1. General Information 1.3.2 Optional Kit 1.3.3 Optional Item...
- Page 10 All manuals and user guides at all-guides.com 1. General Information Front On/O switch Micro USB connector Keyboard...
- Page 11 All manuals and user guides at all-guides.com 1. General Information Rear Measure Tip Measure trigger Ground connector...
- Page 12 1. General Information Technical Speci cations Frequency Range Frequency Response < + < + < + Measurement range < + < + < + Input signal attenuation Input signal attenuation (CCM-A) Measurement modes Alarm sound Display Detectors Contact tip USB Interface...
- Page 13 All manuals and user guides at all-guides.com 1. General Information Standards Operating Temperature Power supply Operation Dimension Weight Recommended calibration interval Built-in self-test...
- Page 14 All manuals and user guides at all-guides.com 1. General Information...
- Page 15 All manuals and user guides at all-guides.com Chapter 2 Principle of operation Logic Schema true Hand Band detector Filter Display Medium true Ground Band Plane detector Filter true High Band detector Filter...
- Page 16 All manuals and user guides at all-guides.com 2. Principle of operation Measurements V(t) Contact Current...
- Page 17 All manuals and user guides at all-guides.com 2. Principle of operation Safety...
- Page 18 All manuals and user guides at all-guides.com 2. Principle of operation...
- Page 19 All manuals and user guides at all-guides.com Chapter 3 CCM Usage Turn On Release n...
- Page 20 All manuals and user guides at all-guides.com 3. CCM Usage First Use STANDBY WAIT READY READY Press the trigger to switch the instrument mode from STANDBY to READY. Only when the READY key appears (please do not press the trigger again) reach the equipment under test with the tip and, only after making con- tact, press the trigger to start the measurement.
- Page 21 With each new measurement, the operator will be warned by an acoustic signal (if enabled) and, simultaneously, by a brighter display illumination. All measures are automatically stored by the CCM. In both modes the measuring tip of the CCM must never be removed from the equipment under test.
- Page 22 All manuals and user guides at all-guides.com 3. CCM Usage Standby Screen State Measurement Mode Battery level Battery Measurement Mode HAND GROUND PLANE State Hand or GP...
- Page 23 All manuals and user guides at all-guides.com 3. CCM Usage HAND before HAND Hand...
- Page 24 All manuals and user guides at all-guides.com 3. CCM Usage Bandwidth/Total BW/T %T OT AL = M AX(%LF ; %M F ; %HF ) valLF [mA] %LF (t) = [mA] valM F [mA] %M F (t) = 0, 4 valHF...
- Page 25 All manuals and user guides at all-guides.com 3. CCM Usage Low band Filter High band Filter Built-in self-test...
- Page 26 All manuals and user guides at all-guides.com 3. CCM Usage...
- Page 27 All manuals and user guides at all-guides.com 3. CCM Usage CCM Menu...
- Page 28 All manuals and user guides at all-guides.com 3. CCM Usage 3.7.1 Regulation limits MENU 3.7.2 Beep on press 3.7.3 Alarm NEXT...
- Page 29 All manuals and user guides at all-guides.com 3. CCM Usage 3.7.4 Auto OFF...
- Page 30 All manuals and user guides at all-guides.com 3. CCM Usage 3.7.5 Date & Time DOWN...
- Page 31 All manuals and user guides at all-guides.com 3. CCM Usage 3.7.6 Contrast DOWN 3.7.7 Clear Data...
- Page 32 All manuals and user guides at all-guides.com 3. CCM Usage...
- Page 33 All manuals and user guides at all-guides.com Chapter 4 Data Download Connect to PC Excel When connecting your device, it must be already turned on. Windows MPB (CCM)
- Page 34 All manuals and user guides at all-guides.com 4. Data Download Data Format HAND To correctly display the date and time, the format to enter is dd:mm:yyyy:hh:mm:ss.
- Page 35 All manuals and user guides at all-guides.com 4. Data Download To correctly display the acquired values: the decimal separator is the . (point), and the digit grouping symbol is a , (comma) In case of visualization issues, please change the Language and re- gion setting in the control panel MS Excel...
- Page 36 All manuals and user guides at all-guides.com 4. Data Download...
- Page 37 All manuals and user guides at all-guides.com Chapter 5 JIG - General Information Introduction...
- Page 38 All manuals and user guides at all-guides.com 5. JIG - General Information Description Composition...
- Page 39 All manuals and user guides at all-guides.com 5. JIG - General Information Kit Case GP Compartment JIG lock R45 and Z-2251 Batteries...
- Page 40 All manuals and user guides at all-guides.com 5. JIG - General Information Ground Plane Thickness...
- Page 41 All manuals and user guides at all-guides.com Chapter 6 JIG - Functioning Equipment...
- Page 42 All manuals and user guides at all-guides.com 6. JIG - Functioning Install the CCM on the JIG (a) CCM TIP (b) unplug the TIP (c) CCM TIP unplugged...
- Page 43 All manuals and user guides at all-guides.com 6. JIG - Functioning...
- Page 44 All manuals and user guides at all-guides.com 6. JIG - Functioning Ground Plane Test...
- Page 45 All manuals and user guides at all-guides.com 6. JIG - Functioning Hand Test...
- Page 46 All manuals and user guides at all-guides.com 6. JIG - Functioning Certi cate Measurements 6.5.1 Low Band 6.5.2 Medium Band 0.97 +5.05 +13.01...
- Page 47 All manuals and user guides at all-guides.com 6. JIG - Functioning 6.5.3 High Band +19.03...
- Page 48 All manuals and user guides at all-guides.com 6. JIG - Functioning...
- Page 49 All manuals and user guides at all-guides.com List of Figures...
- Page 50 All manuals and user guides at all-guides.com LIST OF FIGURES...
