Summary of Contents for RCA SPS36073

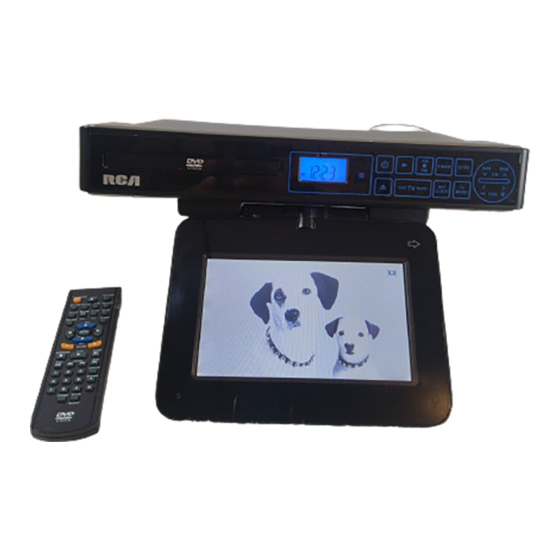

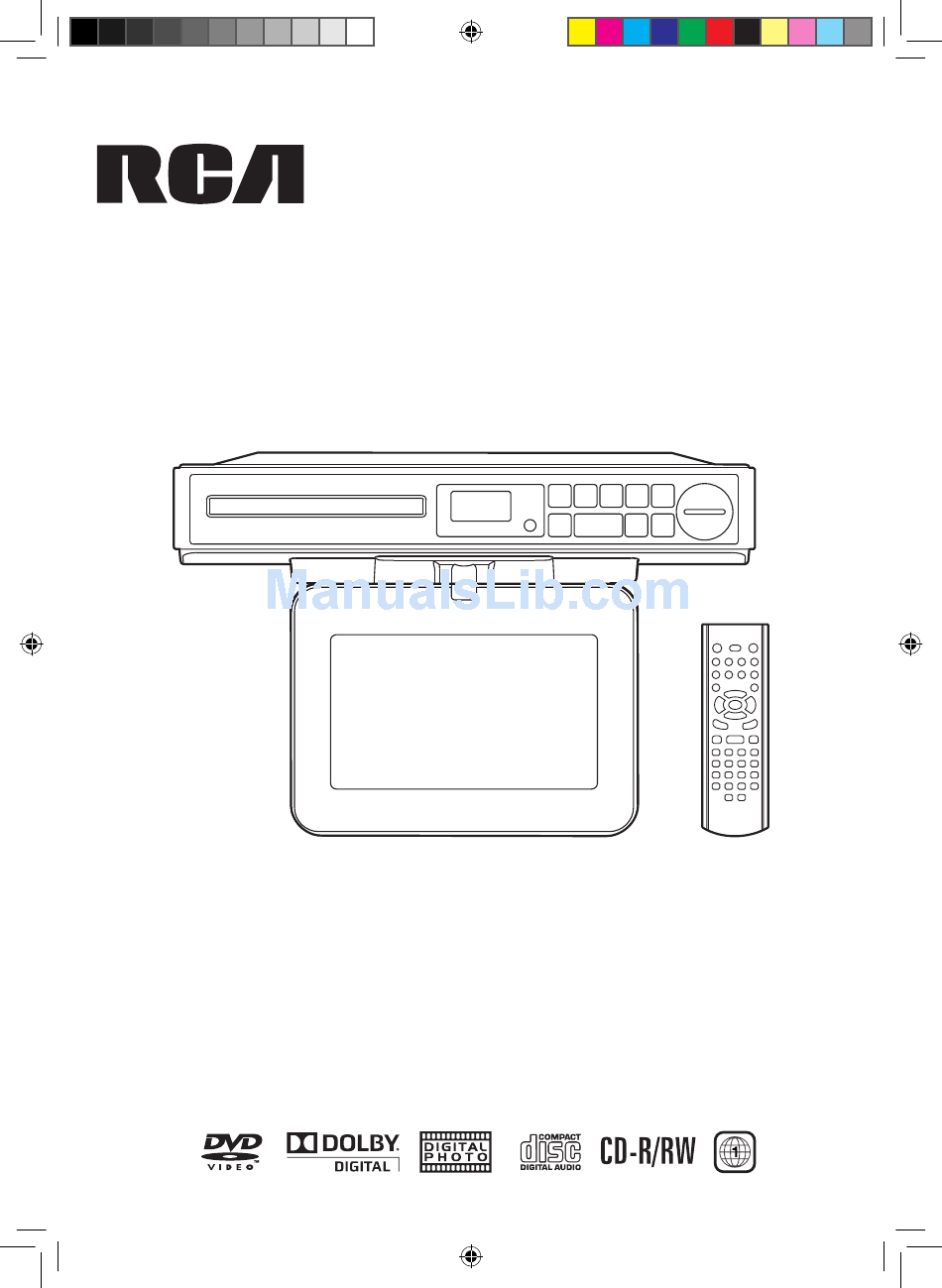

  • Page 1 Model: SPS36073 7” Kitchen LCD TV / DVD Combo OWNER’S MANUAL RCA SPS36073 English IB W012 OK.indd 1 8/21/2009 4:47:39 PM...
  • Page 2: Safety Precautions

    INSERT. WARNiNG: Should any trouble occur, disconnect the AC power cord and refer servicing to a qualified technician. RCA SPS36073 English IB W012 OK.indd 2 ThE LiGhTNiNG fLASh AND ARROWhEAD WiThiN ThE TRiANGLE iS A WARNiNG SiGN ALERTiNG yOU Of “DANGEROUS VOLTAGE”...
  • Page 3 Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. RCA SPS36073 English IB W012 OK.indd 3 8/21/2009 4:47:40 PM...
  • Page 4: Important Safety Instructions

    E. Battery shall not be exposed to excessive heat such as sunshine, fire or the like. RCA SPS36073 English IB W012 OK.indd 4 Portable Cart Warning 8/21/2009 4:47:40 PM...
  • Page 5: Table Of Contents

    Audio Selection ... 17 Display Function ... 18 Special Function ...18 Locating a Specific Title/Chapter(DVD)..18 Locating a Specific Time..18 RCA SPS36073 English IB W012 OK.indd 5 Repeat Playback ...19 Programmable memory ...20 DVD programmed Memory...20 CD programmed Memory... 20 viewing jPeg Files ...21...
  • Page 6: Disc Formats

    You may not be able to play back some DVDs on this unit if they were purchased from outside your geographic area or made for business purposes. RCA SPS36073 English IB W012 OK.indd 6 DiSC fORMATS Language selections for audio...
  • Page 7: Accessories

    WARNING: Do not dispose of batteries in a fire. Batteries may explode or leak. CAUTiON: When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be strictly followed. RCA SPS36073 English IB W012 OK.indd 7 ACCESSORiES REMOTE CONTROL 2.
  • Page 8: Control Reference Guide

    CONTROL REfERENCE GUiDE Remote Control STOP/AM/FM RCA SPS36073 English IB W012 OK.indd 8 1) MUTE button Press to turn off the sound. 2) STANDby/ON button Turns on the unit and puts it in standby mode. 3) DiSPLAy button Changes disc status information displayed on the screen.
  • Page 9 CONTROL REfERENCE GUiDE Remote Control STOP/AM/FM RCA SPS36073 English IB W012 OK.indd 9 14) fUNCTiON button Use to select DVD, TV or RADIO mode. 15) GOTO button Goes directly to a programmed location on a DVD/CD. 16) SUbTiTLE button Selects one of the subtitle languages programmed on a DVD.
  • Page 10 Press to go back to previous chapters / tracks in DVD mode. Press to change TV channel in TV mode. RCA SPS36073 English IB W012 OK.indd 10 Use to search for a station automatically or select presetted stations. button Press to advance to chapters / tracks in DVD mode.
  • Page 11: Mounting Instructions

    Go to STEP 3. Template Figure 3 RCA SPS36073 English IB W012 OK.indd 11 STEP 3 If your cabinet does NOT have an overhang: a) Eight screws are included with this unit, but you will only need four of them.
  • Page 12 5) Hold the drill firmly against the cabinet to keep the drill from “walking”. RCA SPS36073 English IB W012 OK.indd 12 e) Partially tighten each screw, but do not fully tighten the screws until all of them have been started (see Figure 6).
  • Page 13: Connections

    FM: Fully unwind the antenna wire and position it for the best reception. AM: Fully unwind and rotate the loop antenna, then position it for the best reception. RCA SPS36073 English IB W012 OK.indd 13 CONNECTiONS To the TV ANT IN terminal...
  • Page 14: Plugging In The Unit

    1. Gently pull the monitor down from the back, and twist it clockwise so the screen is visible. 2. The screen can be turned up to 270 NOT turn completely around. RCA SPS36073 English IB W012 OK.indd 14 CONNECTiONS AC power cord To AC outlet .
  • Page 15: Unit Operation

    An additional Dolby Digital decoder is required for reproduction of the discrete multi-channel soundtracks available on many DVDs. Manufactured under license from Dolby Laboratories. ‘Dolby’ and the double-D symbol are trademarks of Dolby Laboratories. RCA SPS36073 English IB W012 OK.indd 15 UNiT OPERATiON SOUND SySTEM 8/21/2009 4:47:48 PM...
  • Page 16: Setting The Clock

    • Press the TiMER button until the time of the cooking timer shows “OFF”. The “TIMER” indicator will disappear. RCA SPS36073 English IB W012 OK.indd 16 SETTiNG ThE CLOCK 3. Press the hours then press the SET CLOCK button once to confirm.
  • Page 17: Playing A Disc

    The DVD player mutes sound during reverse and forward scan of DVD video discs. • The fast playback speed may differ depending on the disc. RCA SPS36073 English IB W012 OK.indd 17 PLAyiNG A DiSC ” means that the desired operation is not ”...
  • Page 18: Angle Selection

    DVD MENU button and choose the appropriate language on the disc menu. You can select different audio channels (Left, Right or Stereo) on an audio CD by pressing the AUDiO • button repeatedly. RCA SPS36073 English IB W012 OK.indd 18 PLAyiNG A DiSC Sequence of angle shots ” is displayed.
  • Page 19: Display Function

    • Some scenes may not be located as precisely as specified. • This method for accessing specific locations is available only within the current title of the disc. RCA SPS36073 English IB W012 OK.indd 19 PLAyiNG A DiSC SPECiAL fUNCTiON...
  • Page 20: Repeat Playback

    While the disc is playing, press the REPEAT button repeatedly until the The entire disc is played repeatedly. To Resume Normal Playback Press the REPEAT button repeatedly until the RCA SPS36073 English IB W012 OK.indd 20 REPEAT PLAybACK indicator displays on the screen. indicator displays on the indicator displays on the indicator displays on the screen.
  • Page 21: Programmable Memory

    3. Press the ENTER button to confirm. The highlight bar will move to the next item automatically. 4. Repeat step 2 to add additional tracks. RCA SPS36073 English IB W012 OK.indd 21 button button again to highlight a PROGRAM...
  • Page 22: Viewing Jpeg Files

    • Some DVDs may not include your pre-selected language. In this case, the DVD player automatically displays disc menus consistent with the disc’s initial language setting. RCA SPS36073 English IB W012 OK.indd 22 ViEWiNG JPEG fiLES button button to highlight the...
  • Page 23: Video Setup

    8. To exit the SETUP MENU and return to the normal screen, simply press SETUP button or press the Exit Setup Mode and press the ENTER button. RCA SPS36073 English IB W012 OK.indd 23 button to highlight the button to highlight the...
  • Page 24: Using The Tv

    NTSC TV mode: Press the DiSPLAy button, the upper window will pop up, then press the DiSPLAy button once to exit. RCA SPS36073 English IB W012 OK.indd 24 USiNG ThE TV button to TV button ” indicator always blinks on the LCD display until...
  • Page 25: Tv Setup

    Adjust the balance level toward the left or right speakers. Audio Language: Use the system only). NOTE: Only for DTV/ATSC input source mode, thus it is not available in other input source mode. RCA SPS36073 English IB W012 OK.indd 25 TV SETUP Picture Mode Contrast...
  • Page 26: Tv Timer Setting

    Restore Setting: If you reset the TV to the factory settings, all your present settings on picture & sound will be erased and replaced by the factory’s default settings. RCA SPS36073 English IB W012 OK.indd 26 TV SETUP OSD Duration...
  • Page 27: Tv Channel Setting

    4. After editing, press the DiSPLAy button and the Channel & Channel Label will be shown on the screen. RCA SPS36073 English IB W012 OK.indd 27 TV SETUP Antenna Auto Scan...
  • Page 28: Listening To The Radio

    AM: Fully unwind and rotate the loop antenna then position it for the best reception. NOTE: Do not connect the FM antenna to an outside antenna. RCA SPS36073 English IB W012 OK.indd 28 ” indicator ” appears on the ”...
  • Page 29: Troubleshooting Guide

    No color of picture. No picture and sound. Colored patches of picture. RCA SPS36073 English IB W012 OK.indd 29 CAUSe (AND RemeDY) • Ensure the AC power cord is connected. • The unit is not turned on.
  • Page 30: Maintenance

    Important Note Before transporting the unit, remove the disc from the disc compartment. Power source: Specifications and external appearance are subject to change without notice. RCA SPS36073 English IB W012 OK.indd 30 MAiNTENANCE SPECifiCATiONS AC 120V ~ 60Hz Printed in China...
