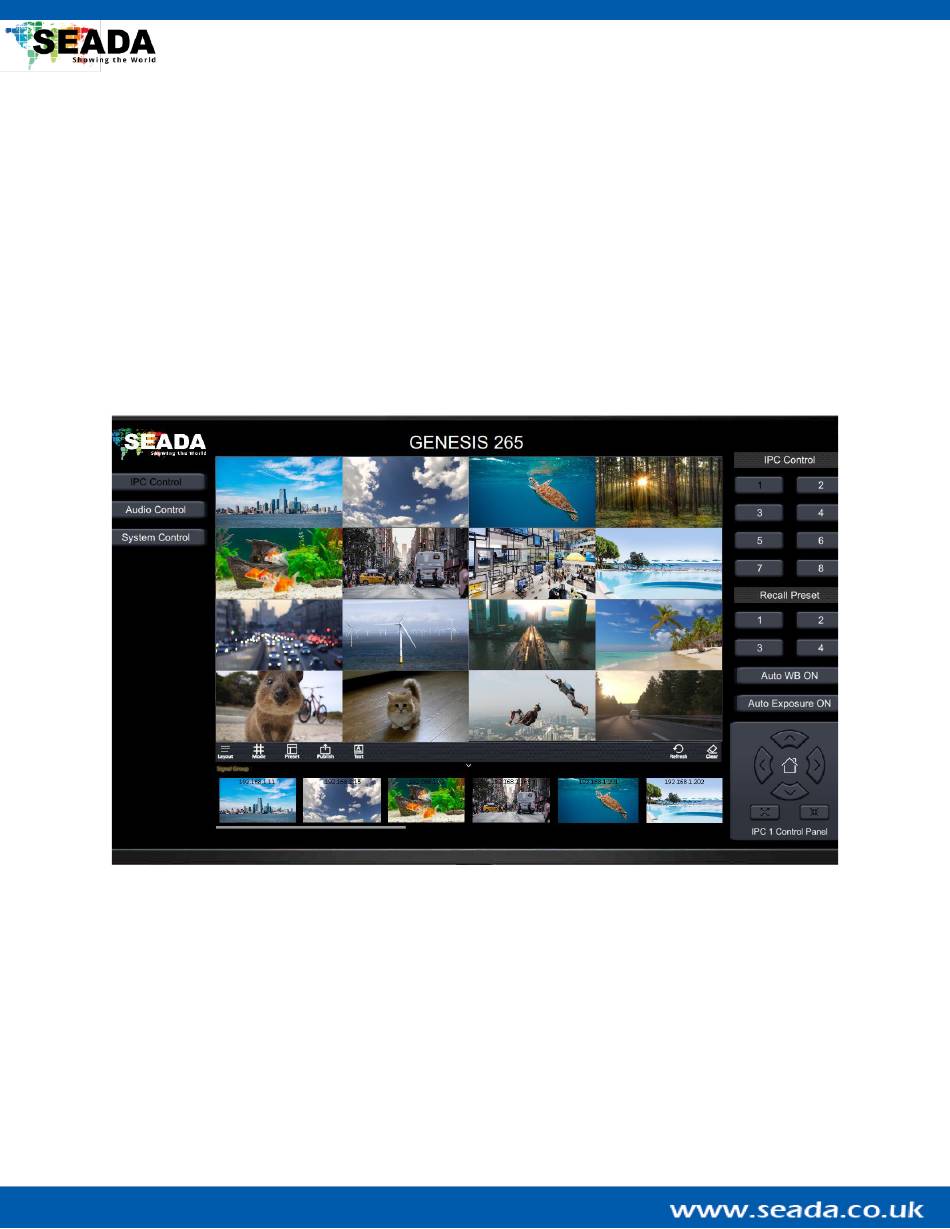

- Page 1 GENESIS™265 User Guide This user guide provides instructions for setting up SEADA GENESIS™265 using the G265 UMPlatform, G265 Designer Software and G265 Client.
-
Page 2: Table Of Contents
Table of Contents 1. G265 Introduction .......................... 1 1.1. G265 Overview ........................... 1 1.2. Key Features ............................1 1.3. Specifications ............................. 2 1.4. Models..............................2 1.5. System Diagram ..........................2 2. Connection Setup ........................... 3 2.1. Set up the G265 transceiver ....................... 3 2.2. - Page 3 4.7. Panel Setting ............................ 28 4.7.1. Scan Output ..........................28 4.7.2. Bind windows to outputs ......................28 4.7.3. Mode ............................28 4.7.4. Audio Follow ..........................28 4.8. Input Setting ............................. 29 4.8.1. Scan Input ..........................29 4.8.2. Config Inputs ..........................29 4.8.3.
-
Page 4: G265 Introduction

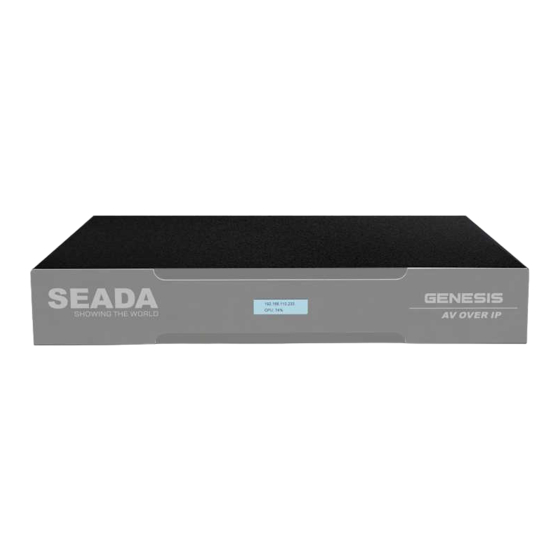

1. G265 Introduction 1.1. G265 Overview The GENESIS™265 (G265) Transceivers (encoder and decoder in one unit) are designed to transmit video and audio over standard Gigabit Ethernet with low latency and high image quality in real-time. As a decoder, with its unique decoding ability to decode up to 16 IP streams, the G265 can be used as multi-viewers or matrix switchers incorporated with RTSP IP sources for applications in security, conference, corporation, university etc. -
Page 5: Specifications
1.3. Specifications Input / Output Protocol RTSP Output Format H.265/H264 RS232 Connection Phoenix connector Power Supply 12DC from main power adapter or PoE Audio Input / Output Connector Phoenix connector Audio Input Format Unbalanced Operating Temperature Range 0~40 degrees centigrade Operating Humidity Range 10%~90% non-condensing Storage Temperature Range... -
Page 6: Connection Setup
2. Connection Setup 2.1. Set up the G265 transceiver Before starting up, user first needs to set up the G265 transceiver. The steps will be as follow: 1. Use CAT6 (or higher) to connect G265 transceiver with an IP switch supports PoE (optional). 2. -
Page 7: Config The G265 Transceiver
3. Config the G265 transceiver Run ‘G265 UMPlatform’, user can change parameters, such as the network setting and output setting, for the G265 transceiver if necessary. 3.1. Main Tabs: This tab provides basic functions to operate the G265 transceiver. Input/Output: Switch between the list for the encoders and decoders. Scan: Scan and display all G265 transceiver under the current Input/Output list. -
Page 8: Information Tabs
3.2. Information-Tabs: This tab contains information about the G265 transceiver. Input/Output IP: The IP address of the device. Firmware Version: The firmware version of the device. SD-EN-030 5 / 40 V1.0... -
Page 9: Sub Tabs - Input (Encoder - Tx)
3.3. Sub-Tabs – Input (Encoder - TX): This tab provides customised configurations for the selected encoders. (Always click ‘Apply’ to apply modifications to the device) To use G265 transceivers as RTSP encoders for 3 party decoders, the mainstream address is rtsp://192.168.1.208/0 and substream address is rtsp://192.168.1.208/1. - Page 10 • Master-slave: Change the master-slave mode. Ensure that there is only one ‘Master’ in both the encoders and decoders. • Crop: Crop the input signal to any size. • OSD: Add OSD onto the input signal. • System Info: The information of the device. As ‘Switch to output’ function is no longer being used, user needs to toggle the switch on the back of the G265 transceiver and restart it to switch between encoder and decoder.
-
Page 11: Sub Tabs - Output (Decoder - Rx)
3.4. Sub-Tabs – Output (Decoder - RX): This tab provides customised configurations for the selected G265 decoder. (Always click ‘Apply’ to apply the modification to the device) Network setting: Config the network parameters for the device, including name, IP address, subnet mask, gateway, and MAC address. - Page 12 • Background: Set up the background for the G265 transceiver when there is no content being displayed. User can also remove the background picture with this tab. • System: The information of the device. As ‘Switch to output’ function is no longer being used, user needs to toggle the switch on the back of the G265 transceiver and restart it to switch between encoder and decoder.
-
Page 13: G265 Designer Software User Guide
ID will be automatically filled when running the software. Note that the custom ID should not be modified, otherwise the G265 Designer Software will fail to run. PLEASE re-download the software package from our website (https://seada.co.uk/downloads) if above occurs. -
Page 14: Designer Menu
4.2. Designer Menu This is the main menu of the G265 Designer Software and it contains all the functions supported by the G265 transceiver. UI Design: Contain components to build up the User Interface (UI) for the G265 Client. Panel Setting: Config the output panel and its audio settings. Input Setting: Scan and manage input signals. -
Page 15: Designer Tool Menu
4.3. Designer Tool Menu This menu contains basic functions to operate the designer. Run test: Enter the test mode to check the UI design of the software, such as page switching and button binding. Note that this mode runs offline and is only used to check the UI design, such as page switching and button binding. -
Page 16: Ui Design Area
4.4. UI Design Area This is the area where UI components for the G265 Client are created. The layout of the UI in the G265 Client will follow the design in the ‘UI Design Area’. On the top-right of the area, there are three buttons: ‘Logout’, ’Min’... -
Page 17: Ui Tool Menu
4.5. UI Tool Menu This menu contains operations that can be made to the UI components in the ‘UI Design Area’. Merge: Merge the selected components into one group. Cancel Group: Cancel the merge of the selected components. Set Top: Set the selected component to the top. Set Bottom: Set the selected component to the bottom. -
Page 18: Ui Design - Ui Menu
4.6. UI Design – UI Menu This menu contains components to build up the UI for the G265 Client. Except ‘New Page’, all components can be ‘dragged&dropped’ onto the ‘UI Design Area’ to be created. All the UI components can also be deleted by clicking ‘Del’... -
Page 19: New Page
4.6.1. New Page SD-EN-030 16 / 40 V1.0... - Page 20 By default, the designer has a global page with one output panel, one input signal group and multiple function buttons. The function buttons grant user access to a blank page without contents, an IPC control page for the IPC control, an audio control page to control audio and a system control page with multiple buttons for further use.
-
Page 21: Rectangle
4.6.2. Rectangle The rectangle component is normally used for setting up backgrounds or searching signals. Position/Size: Config the position and size of the rectangle component. They can also be adjusted by dragging the yellow adjustment box around the component in the ‘UI Design Area’. Basic Attribute: The rectangle component can be used as a search box. -
Page 22: Text
4.6.3. Text This component creates a text box allowing user to enter texts. Position/Size: Config the position and size of the text box. They can also be adjusted by dragging the yellow adjustment box around the component in the ‘UI Design Area’. Text: Change the format of the texts in the text box, such as the font, size and colour. -
Page 23: Button
4.6.4. Button This component can be used as a button. Position/Size: Config the position and size of the button. They can also be adjusted by dragging the yellow adjustment box around the component in the ‘UI Design Area’. Basic Attribute: (a) Page Button: When there are multiple pages being set up, by clicking the box on the right and choosing a page number, the selected button can be used as a page switch button. - Page 24 User must enter the following information to set up the command communication: • TCP: Whether via TCP/IP or serial port. • HEX: Send commands in HEX • IP: IP address of the target device. • Port: Port number of the target device. •...
-
Page 25: Slider
4.6.5. Slider The slider component is used to adjust the volume of the output audio. Position/Size: Config the position and size of the slider. They can also be adjusted by dragging the yellow adjustment box around the component in the ‘UI Design Area’. Basic Attribute: The slider can be set either in a horizontal or a vertical direction. -
Page 26: Signal
4.6.6. Signal The signal component can be assigned with input signals from different devices, such as IP cameras and media players. Position/Size: Config the position and size of the signal component. They can also be adjusted by dragging the yellow adjustment box around the component in the ‘UI Design Area’. Basic Attribute: The signal component can be set in a horizontal or vertical direction. -
Page 27: Panel
4.6.7. Panel The panel component is the area where the output will be set up. Position/Size: Config the position and size of the panel component. They can also be adjusted by dragging the yellow adjustment box around the component in the ‘UI Design Area’. Basic Attribute: If ‘Clone Panel’... -
Page 28: List
4.6.8. List The list component can be used as a list in multiple ways. Position/Size: Config the position and size of the list component. They can also be adjusted by dragging the yellow adjustment box around the component in the ‘UI Design Area’. Basic Attribute: The list component can be used in multiple ways: (a) Page Switch: Show all the pages that have been created and this list can be used to switch... -
Page 29: Get Back
4.6.9. Get Back The get back component reads the output audio volume and display it in the G265 Client in the same way as an amplitude bar. Position/Size: Config the position and size of the get back component. They can also be adjusted by dragging the yellow adjustment box around the component the ‘UI Design Area’. -
Page 30: Matrix
4.6.10. Martix The matrix component can be used to switch video/audio on the output panel between inputs and outputs in the same way as a matrix switcher. Position/Size: Config the position and size of the matrix component. They can also be adjusted by dragging the yellow adjustment box around the component in the ‘UI Design Area’. -
Page 31: Panel Setting
4.7. Panel Setting ‘Panel Setting’ is designed for user to bind the output to the G265 transceiver. By either clicking ‘Panel Setting’ or double-clicking a certain panel component in the ‘UI Design Area’, user can enter this page. 4.7.1. Scan Output By clicking ‘Scan Output’, the G265 transceiver (RX) in the same network will show in the ‘Output List’. -
Page 32: Input Setting
4.8. Input Setting ‘Input Setting’ allows user to manage the input devices in the same network as the G265 transceiver and assign input signals from them into multiple signal groups. 4.8.1. Scan Input User can add and delete inputs manually by clicking the ‘+’ and ‘-‘ buttons at the bottom of the ‘Input List’. Note that if user is using a G265 transceiver as an encoder, the input will be automatically generated in the ‘Input List’... -
Page 33: User
4.9. User ‘User’ is designed for user management. The default user is ‘admin’ and the password is ‘Admin12345’. This user has the highest user level and can access all the functions in the G265 transceiver. 4.9.1. New User By clicking ‘New user’, the system can add a new user level. This user level can be assigned with permissions to access different pages of the G265 Client, output panels, and input singal groups. -
Page 34: G265 Client User Guide
G265 Client can be accessed from devices operated either in Windows, IOS or Android. 5.1. Login Window User can run the G265 Client directly without installation. The client can be downloaded from the SEADA website (https://seada.co.uk/downloads). Run the G265 Client software to get the login dialog box shown above. -
Page 35: Run G265 Client On The Control Pc
5.2. Run G265 Client on the control PC The default setting when starting the software is one output panel, one input signal group and multiple control features. User can set up the output by “dragging and dropping” input signals from the signal list onto the panel. User can also access IPC Control, Audio Control and System Control with the on-screen buttons. -
Page 36: System Control
Scrolling text Content: The content of the scrolling text X/Y: Position of the scrolling text Red box: The colour of the scrolling text Black box: Background colour of the scrolling text T: Transparent of not H: Height of the scrolling text Direction: Direction of the scrolling text –... -
Page 37: Practical Example
5. Run ‘G265 Designer Software’ and click on the control PC IP address in the login dialog box; Output Panel 6. Double-click the output panel. In ‘Panel Setting’, choose ‘GENESIS 265’ from the ‘Panel’ list on the left. 7. Bind the G265 transceiver with the output by choosing the device in the ‘Output List’ on the right and clicking on the panel in the middle. - Page 38 14. Repeat steps 8-13 to add more RTSP IP sources if necessary. IPC Control 15. Go to ‘UI Design’ and choose ‘IPC Control’ from the ‘Page List’ on the left. 16. Choose one of the buttons in the ‘IPC 1 Control Panel’, for example, ‘up’. In the setting menu, click on ‘……’...
- Page 39 30. Click twice on the slider and in the ‘Link’ tab, click on the device from the output list and click on ‘……’ next to ‘Command’. It will bind the slider to the transceiver so the slider can control the volume level for it.
-
Page 40: Troubleshooting
7. Troubleshooting Always ensure that the G265 transceiver is connected correctly with other devices in the system and the IP Switch/CAT meets the minimum requirement. (1G/CAT6) 7.1. Device missing in the G265 UMPlatform/Designer Software 1. Check if all the devices are powered on. 2. - Page 41 2. Re-download the software from our website. SEADA are always available to offer support, including full online training videos, webinars and more advanced 1 to 1 training. If you do need to contact us, please get in touch through our phone, the number is +44 01527 584364 or send us an email at sales@seada.co.uk.
-
Page 42: Commands For The G265 Transceiver
Commands for the G265 transceiver UDP Socket: IP address: 224.168.1.1 Port: 41234 Save Layouts {SaveScene;Panel_ID;Scene_ID,Scene_Name} Panel_ID: The UUID of the output panel, which can be found in the Designer Software G265 starting from 600001. Scene_ID: The ID for the saved layout. Scene_ID: The name of the layout that can be viewed in the Client. - Page 43 Delete all Layouts {ClearScenes;Panel_ID} Panel_ID: The UUID of the output panel, which can be found in the Designer Software G265 starting from 600001. For example: {ClearScenes;600001}: Delete all the layouts for output panel 600001. Delete certain layouts {DeleteScene;Panel_ID;Scene_ID} Panel_ID: The UUID of the output panel, which can be found in the Designer Software G265 starting from 600001.
