Henden H2 Quick Start Manual

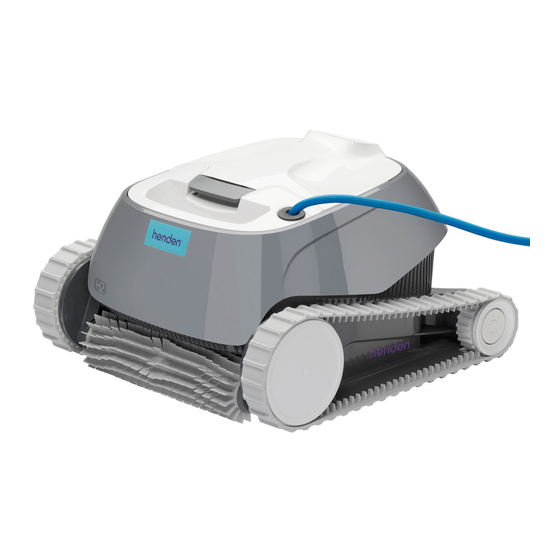

H2 Robotic Pool Cleaner
QUICK START
GUIDE
Thank you for purchasing the Henden H2 Robotic Pool Cleaner.
The Henden H2 uses clever cleaning and navigation technology to keep your pool
sparkling all year long. Designed for easy use and maintenance, the Henden H2 is
a quality piece of pool equipment guaranteed to last.

HELPFUL HINTS

• When working, the power supply should be
placed in the shade.
• Release minimal required floating cable length
to ensure proper pool coverage.
• Leave excess cable rolled outside the pool.
• After each cleaning cycle wash the filter bag or
cartridge. Clogged filter bags reduce scanning
and cleaning efficiency.
• Once a week unplug the cable from the power
supply, unwind the tangled portions of the
cable, straighten it out and leave it in the
sun for several hours.
• When not in use, store the pool cleaner in
a shady place upside down.
CAUTIONS AND WARNINGS:
Use the originally supplied power
supply only.
Do not use an extension cable in any
case whatsoever.
Ensure the electrical outlet is protected
by a ground fault interrupter (GFI) or an
earth leakage interrupter.
www.hendenpools.com.au/productregistration

SPECIFICATIONS

• Use the Robotic Pool Cleaner in the following
water conditions only: Chlorine Max 4 ppm; pH
7.0-7.8; Temperature 6-34°C (43-93°F); NaCl
Maximum = 5000 ppm.
• Motor protection: IP 68
Minimum depth: 0.80m/2.6ft
Maximum depth: 5m/16.4ft
Keep the power supply out of standing water.
Do not enter the pool while the Robotic Pool Cleaner
is working.
Unplug the power supply before servicing.
Do not pull the Robotic Pool Cleaner from the pool
using the cable.
Register your product online:
IMPORTANT
Please read carefully
