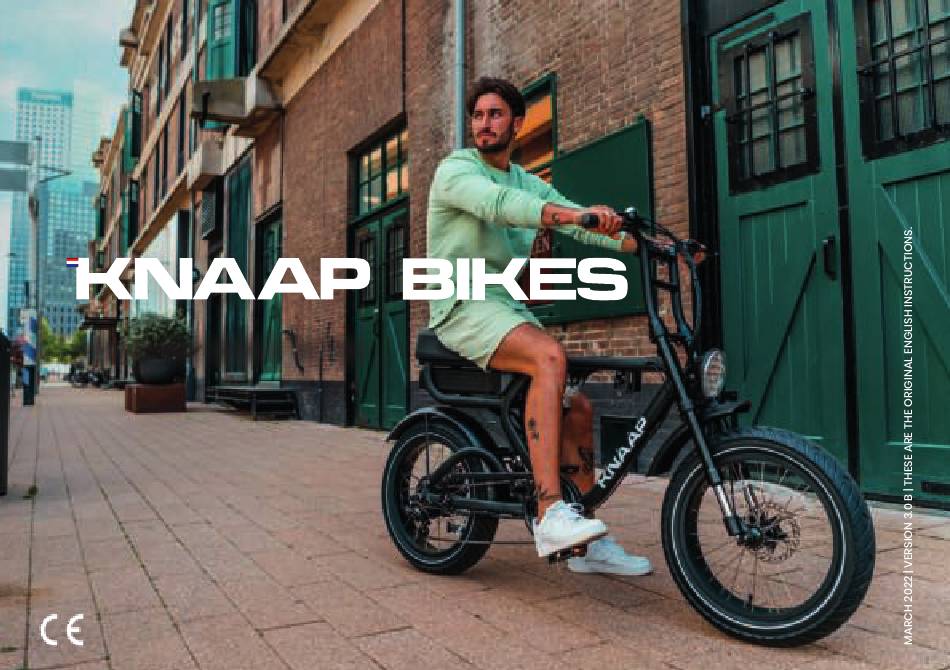

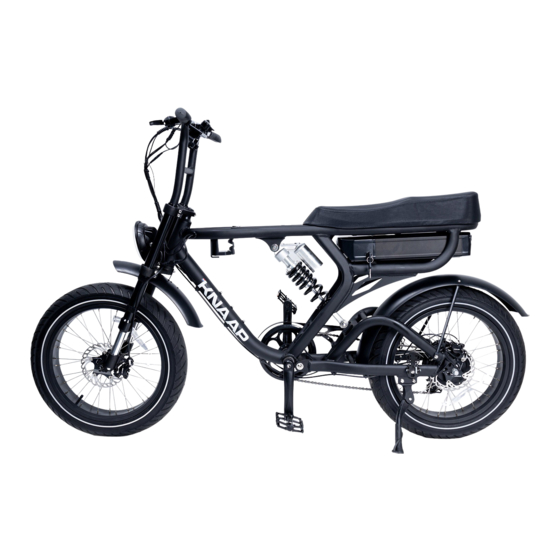

KNAAP BIKE RTD
USER MANUAL
WWW.KNAAPBIKES.COM
© Copyright KNAAP BIKES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTD and is the answer not in the manual?

Questions and answers

norm
February 12, 2025

how do i change the front headlite bulb in a knaps electric bike

-1

Related Manuals for KNAAP BIKES RTD

Summary of Contents for KNAAP BIKES RTD

  • Page 1 KNAAP BIKE RTD USER MANUAL WWW.KNAAPBIKES.COM © Copyright KNAAP BIKES...

  • Page 2: Table Of Contents

    2.2.1 What is in the box? 2.2.2 Installing the front mudguard 2.2.3 Installing the front wheel 2.2.3.1 Installing the front wheel in the front fork 2.2.3.2 Installing the braking system 2.2.4 Installing/adjusting the handlebar 2.2.5 Installing the pedals KNAAP BIKES...
  • Page 3 3 SAFETY 3.1 Safety notes - eBike safety fundamentals 3.2 Safety notes - eBike battery and charger 4 RIDING THE BIKE Using the battery 4.1.1 Installing the battery 4.1.2 Charging the battery 4.1.3 Removing the battery 4.1.4 Storing the battery 4.1.5 Battery status LEDs 4.2 Using the brakes...
  • Page 4 4.3.9.4 Basic settings 4.4.9.5 Error codes 4.4 Using the gear shifter 4.5 Using the lighting system 4.5.1 Front light and rear light 4.5.2 Reflectors 4.6 Recommendations for first-time eBike riders 4.6.1 Getting acquainted with the bike 4.6.2 Mechanical safety check before riding KNAAP BIKES...
  • Page 5 5 MAINTENANCE 5.1 Cleaning the bike 5.2 Adjusting the chain tension 5.3 Lubricating the bike 5.4 Maintenance schedule 5.5 Torque settings 6 TRANSPORT AND STORAGE 6.1 Transporting the bike and the battery 6.1.1 Transporting the bike 6.1.2 Transporting the battery 6.2 Storing the bike 7 PROBLEM SOLVING USER MANUAL...
  • Page 6 8 ENVIRONMENT AND DISPOSAL 8.1 Disposal of electronic components 8.2 Disposal of packaging material 9 DISCLAIMER 10 TECHNICAL DATA 11 MAINTENANCE FORMS KNAAP BIKES...

  • Page 7: Introduction

    INTRODUCTION ABOUT THIS USER MANUAL IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE This user manual is primarily intended for the Knaap bike owner. Make sure that you read and understand this manual and the safety instructions contained herein before using the Knaap bike. Failure to do so can result in serious injury or death.

  • Page 8: Typographic Conventions

    Notice indicates information considered not avoided, may result in minor or moderate important, but not hazard-related. injury. ADDITIONAL DOCUMENTATION Documentation of the Bafang C961 display • Documentation of the Bafang rear wheel drive unit • Documentation of the Samsung 36V 21Ah battery • Documentation of the Shimano 7-speed shifter • KNAAP BIKES...

  • Page 9: Contact Details

    CONTACT DETAILS This is the original English user manual. The latest version of this manual is available at: www.knaapbikes.com . Manuals in other languages are available upon request. Should you have any questions, or if you need technical assistance or information about special tools and materials, or if you would like to order spare parts, please contact: support@knaapbikes.com Send us any feedback you may have by visiting our website or sending us an e-mail. We appreciate your comments! Technical support Should you need technical support, please contact your local Knaap retailer or...

  • Page 10: Assembling The Bike

    ASSEMBLING THE BIKE ASSEMBLING THE BIKE PRODUCT ELEMENTS KNAAP BIKES...
  • Page 11 Brake Mug holder Bike stand Power Button, Speed Saddle Pedal controller and light Battery lock Pedal assist sensor button Battery Front fork Rear light/reflector Handlebar Wheel axle LCD console Rear mudguard Front mudguard Gear shifter Rear hub motor Headlight Brake Derailleur Charger Stem Passenger foot rest USER MANUAL...
  • Page 12 ASSEMBLING THE BIKE Spare part box Rubber dust covers Toolkit (see Toolkit) Pedals Charger KNAAP BIKES...
  • Page 13 Toolkit T9 T10 foot rest Ⓟ and install the Allen key 3mm (to adjust Wrench 13/15 (to mount mudboard Ⓥ) the pedals Ⓢ3 and the the power button, speed controller and light Allen key 5mm front wheel) button Ⓑ) (to adjust the handlebar) Wrench 17/19 Allen key 4mm (to adjust Allen key 6mm...

  • Page 14: Installing The Bike Components

    Do a visual inspection of the packaging contents: Bike NOTICE The front mudguard, front wheel, handlebar, pedals and braking system are • still to be mounted. Parts box • Toolkit • User manual • Remove the foam sleeves from the bike and discard them in accordance with your local waste disposal regulations. KNAAP BIKES...

  • Page 15: Installing The Front Mudguard

    2.2.2 INSTALLING THE FRONT MUDGUARD Tools/Material required: Front mudguard Ⓥ • Allen key 4.5 mm Ⓣ3 • Wrench 8 Ⓣ6 • Remove the front mudguard Ⓥ from the packaging. Attach the front mudguard Ⓥ onto the lower plate 1 with the allen key Ⓣ3 and wrench Ⓣ6. USER MANUAL...

  • Page 16: Installing The Front Wheel

    2.2.3.1 INSTALLING THE FRONT WHEEL IN THE FRONT FORK Tools/Material required: Allen key 4.5mm Ⓣ3 and Wrench 13/15 (Ⓣ7) • Make sure that the foam protection sleeves are removed from the handlebar. Remove the front fork spacer 1. KNAAP BIKES...
  • Page 17 Put the wheel axle Ⓤ into the front fork dropouts 1. Risk of injury. The front wheel axle must be fully seated into the dropouts. If the wheels are not secured in place, they can go askew or come out of the dropouts.
  • Page 18 ASSEMBLING THE BIKE Hold the end nut 1 and turn and tighten the wheel axle 2. Make sure that the front mudguard Ⓥ does not touch the front tire. KNAAP BIKES...

  • Page 19: Installing The Braking System

    2.2.3.2 INSTALLING THE BRAKING SYSTEM Remove the red distance holder from the brake system. NOTICE: Do not use the brake lever until the brake system is fitted onto the front fork. Attach the braking system to the front fork with the allen key Ⓣ3. USER MANUAL...
  • Page 20 ASSEMBLING THE BIKE Loosen the two braking system nuts with the allen key Ⓣ3. Press the brake lever and tighten the two braking system nuts again. KNAAP BIKES...

  • Page 21: Installing/Adjusting The Handlebar

    Release the brake lever. 2.2.4 INSTALLING/ADJUSTING THE HANDLEBAR Tools/Material required: Allen key 5mm Ⓣ4. • Remove the handlebar Ⓒ from the packaging. Take the two rubber dust covers Ⓢ1 from the parts box. Slide the dust covers Ⓢ1 onto the lower end of each of the handlebar stems 1.
  • Page 22 Make sure that the ribbed insertion marks 1 are fully inserted into the bike frame 2. Risk of injury. The height of the handlebar stems can be adjusted to the user’s preferences, but the safety mark must NOT be visible. KNAAP BIKES...
  • Page 23 Tighten the bolts 1 of the stem clamps 2 with allen key Ⓣ4 . USER MANUAL...

  • Page 24: Installing The Pedals

    They are labeled “L” for the rider’s left, “R” for the rider’s right. Turn the pedal Ⓢ3 into the crank arm 1 with your hand. NOTICE Always make sure to turn the pedal towards the front wheel. Once the pedal Ⓢ3 becomes too difficult to turn: Tighten the bolt with the wrench Ⓣ7. KNAAP BIKES...

  • Page 25: Safety

    SAFETY SAFETY NOTES - EBIKE SAFETY FUNDAMENTALS Always wear a helmet. • Wear bright, highly visible clothing, preferably with reflective tape or patches. • Obey the rules of the road. Stop at stop signs and lights. • Stay in control: • Remember to use a low gear when you start off. The power comes in at the second rotation of the pedals.

  • Page 26: Safety Notes - Ebike Battery And Charger

    NEVER leave the battery unattended in case of indoor charging. • NEVER charge the battery near flammable materials. • ALWAYS use the charger that comes with your Knaap bike. • ALWAYS charge and store the battery in a dry environment. • NEVER charge the battery with charger cables that are damaged. • KNAAP BIKES...

  • Page 27: Riding The Bike

    RIDING THE BIKE USING THE BATTERY Risk of explosion. The battery and the dock must be dry before installation. Dry the • battery and the dock with a soft cloth, if required. Risk of explosion. Do NOT charge or use a battery that is damaged. If the battery is •...

  • Page 28: Installing The Battery

    ON/OFF button 2 of the battery is in the OFF position. Insert the battery. Insert and turn the battery key 3 clockwise. to lock the battery. When installed correctly, the battery key has a motion range of 180°. KNAAP BIKES...

  • Page 29: Charging The Battery

    4.1.2 CHARGING THE BATTERY The battery can be charged directly on the bike or separately. After charging, the • charger must be disconnected from the battery and the AC power socket immediately. Charging a new battery takes approximately 8-9 hours. If you discharge the new •...
  • Page 30 RIDING THE BIKE Connect the output plug of the charger 2 to the input jack of the battery 3. The charger LED lights up red. • KNAAP BIKES...

  • Page 31: Removing The Battery

    When the battery is fully charged: The charger LED lights up green. Remove the output plug of the charger from the battery Ⓚ. Remove the power plug of the charger from the AC power socket. 4.1.3 REMOVING THE BATTERY Unlock the battery: Turn the battery key 1 counterclockwise.

  • Page 32: Storing The Battery

    If none of the battery status LEDs lights up: The battery is damaged. Do NOT charge the battery. If within 2 years of purchase, contact the retailer from where you purchased your Knaap Bike (www.knaapbikes.com). If 3 LEDs are lit: The battery is fully charged. If 0 LEDs are lit: The battery is empty. KNAAP BIKES...
  • Page 33 BATTERY STATUS LEDS/POWER LED SIGNAL BATTERY CHARGE LEVEL 3 LEDs lit Full 0 LEDs lit Empty The battery status is also shown on the LCD display. See 4.3.3.1 Battery power level for more information. USER MANUAL...

  • Page 34: Using The Brakes

    Hand brakes must always be used simultaneously. For the EU: • Squeeze the left brake to stop the front wheel. Squeeze the right brake to stop the rear wheel. For the UK : • Squeeze the right brake to stop the front wheel. Squeeze the left brake to stop the rear wheel. KNAAP BIKES...

  • Page 35: Speed Control System (With Lcd Display)

    4.3 SPEED CONTROL SYSTEM (WITH LCD DISPLAY) 12:38 48.2 v KM/H 492w 0x100w TRIP TIME 00 : 02 : 23 53.9km The Knaap bike comes with a speed control system (LCD display and speed controller). The speed control system is connected to the rear hub motor and the pedal assist sensor located on the driver- side crank arm. When you start pedalling, the pedal assist sensor detects the forward pedal rotation and after two rotations activates the motor to power your ride.

  • Page 36: Adjusting The Angles Of The Lcd Display And Speed Controller

    Do not connect or disconnect the LCD display when the LCD display is switched on. • The LCD display is fragile. Avoid rough riding conditions and collisions. • The LCD display can be used between -20°C to ~ +70°C. • The LCD display and the speed controller are IP65 (water proof). • KNAAP BIKES...
  • Page 37 Loosen the screws 1 and 2 of the LCD Display. Put the LCD display in the correct position. Tighten the screws. Loosen the screw 3 of the speed controller. Put the speed controller in the correct position. Tighten the screw. USER MANUAL...

  • Page 38: Switching The Lcd Display On And Off

    LCD display: M3*10 - standard torque of 0.50 Nm • Speed controller: M3*10 - standard torque of 0.25 Nm (max. 0.4 Nm) • 4.3.2 SWITCHING THE LCD DISPLAY ON AND OFF Make sure that the button 1 of the battery is in the ON position. KNAAP BIKES...
  • Page 39 Press and hold the button 2 of the speed controller for 1 second. The LCD display lights up and the main screen opens. 12:38 48.2 v KM/H 492w 0x100w TRIP TIME 00 : 02 : 23 53.9km If a password has been set (see 4.3.9.3 DISPLAY SETTINGS - START PASSWORD) then you must enter the correct password before the LCD display will show the main screen.

  • Page 40: Overview Of The Main Screen

    Bike lights ON indicator Brake signal indicator KM/H Speed indicator Speed indicator ring 492w Battery power output indicator 0x100w Battery power output indicator ring Pedal assist level indicator TRIP TIME Trip information 00 : 02 : 23 53.9km The main screen KNAAP BIKES...

  • Page 41: Battery Power Level

    4.3.3.1 BATTERY POWER LEVEL The battery power level indicator (see illustration The main screen) shows the power status of the bike battery. The battery power level indicator flashes weakly in case of low battery power. • See 4.3.9.3 DISPLAY SETTINGS - BATTERY INDICATION to change the indication on the left of • the battery icon to Voltage, Percentage or OFF.

  • Page 42: Using The Pedal Assist

    Switching the LCD display off does not reset the temporary data. 4.3.4 USING THE PEDAL ASSIST Make sure that the button 1 of the battery is in the ON position. Press and hold the button of the speed controller for 1 second to switch on the LCD display. KNAAP BIKES...
  • Page 43 Use the button and button until you reach the level of pedal assist you want. 12:38 48.2 v KM/H 492w 0x100w TRIP TIME 53.9km 00 : 02 : 23 Start or continue pedaling. The rear hub motor starts providing the level of electrical power you selected at the second rotation of the pedals.

  • Page 44: Switching The Rear And Front Light On/Off

    (see 4.3.9.4 BASIC SETTINGS - LIGHT SENSOR). 4.3.6 USING THE WALK ASSIST MODE This function is intended for walking alongside the bike with more ease. The walk assist function cannot be used while riding the bike. KNAAP BIKES...

  • Page 45: Using The Usb Port

    Press and hold the button for 2 seconds to activate the walk assist mode. The pedal assist level indicator shows the letter P when the walk assist mode is active. As long as you keep pressing the button the motor will drive the bicycle at 6 km/h. Release the button and the walk assist mode is deactivated.

  • Page 46: Changing The System Settings

    For safety reasons you can not go into the menu while riding the bike. • When you start riding the bike, the menu is closed and the main screen opens. • The menu is automatically closed after 30 seconds of inactivity. • The menu is divided into 2 sections. Display settings (affecting the main screen) • a. LANGUAGE b. SYSTEM KNAAP BIKES...
  • Page 47 c. BRIGHTNESS d. AUTO OFF e. SCENES f. BATTERY INDICATION g. POWER INDICATION h. CLOCK i. START PASSWORD Basic settings (system parameters, factory reset and informations) • a. WHEEL b. BATTERY c. USB PORT d. LIGHT SENSOR e. ADVANCE SETTING CHANGING THE SPEED LIMIT CHANGING THE ASSIST LEVELS ERROR CODE f.

  • Page 48: Opening The Menu

    Press the button to select a setting. Use the buttons to select an option. button to store your selection. Press the Press the button two times to exit the menu. KNAAP BIKES...

  • Page 49: Display Settings

    4.3.9.3 DISPLAY SETTINGS SETTING EXPLANATION INSTRUCTIONS LANGUAGE The default language is English. This can not be changed. SYSTEM Changes the unit system between 1. Navigate to SYSTEM. Metric (km/h) and Imperial (mph). 2. Press the button. 3. Press the button or button to select Metric (kmh) or Imperial (mph).
  • Page 50 Changes the battery power output 1. Navigate to POW IND. INDICATION indicators to Power or Current. 2. Press the button. 3. Press the button or button to select Power or Current. 4. Press the button to save your selection. KNAAP BIKES...
  • Page 51 SETTING EXPLANATION INSTRUCTIONS CLOCK Changes the time and date 1. Navigate to CLOCK. settings. 2. Press the button. The Display Setting Clock page opens. 3. Navigate to the setting that needs to be changed. 4. Press the button to select this setting. 5.
  • Page 52 10. Press the button to save your selection. 11. The next digit will start to flash. Repeat step 9 and 10 until all digits are set. 12. Navigate to BACK. 13. Press the button to go back to the menu. KNAAP BIKES...

  • Page 53: Basic Settings

    4.3.9.4 BASIC SETTINGS In order to see the Basic Settings Navigate to ●●● Press the button to show all the settings. SETTING EXPLANATION INSTRUCTION WHEEL Allows to set the wheel 1. Navigate to Wheel. diameter so it matches your 2. Press the button.
  • Page 54 8. Press the button. 9. Press the button or button to select HI, MID or LOW. 10. Press the button to save your selection. 11. Navigate to BACK. 12. Press the button to go back to the menu. KNAAP BIKES...
  • Page 55 SETTING EXPLANATION INSTRUCTION ADVANCE The advance setting is 1. Navigate to Advance setting. SETTING: protected with a password. 2. Press the button. The Advance Setting Password page opens. SPEED LIMIT 3. Navigate to Input Password. button. 4. Press the The default password is 1919. PEDAL ASSIST The first digit starts to flash.
  • Page 56 The Restore Factory Settings page opens. 3. Navigate to YES. 4. Press the button to reset and restore the factory settings. 5. Navigate to BACK. 6. Press the button to go back to the menu. KNAAP BIKES...
  • Page 57 SETTING EXPLANATION INSTRUCTION INFORMATIONS Shows Speed and Mileage 1. Navigate to Informations. information and gives access 2. Press the button. to two more information pages The Information page opens showing Speed (Product and Battery) and Mileage. 3. Navigate to BACK. Product information 4.

  • Page 58: Error Codes

    Throttle on high position Throttle error High voltage protection Motor’s HALL sensor error Phase line of motor error Controller over temperature Motor over temperature Current sensor error Battery’s temperature sensor error Motor’s temperature sensor error Controller’s temperature sensor error KNAAP BIKES...

  • Page 59: Using The Gear Shifter

    Speed sensor error BMS communication error Headlight error Headlight sensor error Torque sensor error - Torque Torque sensor error - Speed Communication error 4.4 USING THE GEAR SHIFTER The Knaap bike has a 7-gear shifter, so you can pedal comfortably no matter what the terrain. Use an easier gear (1 is the easiest) on hills or when you’re riding into the wind. Use a harder gear (7 is the hardest) on flats or if the wind is blowing from behind. When you shift, keep pedalling but ease up on the pedals, especially on hills. If you are pushing hard or if you stop pedalling completely, the chain can skip or fall off.
  • Page 60 RIDING THE BIKE For smoother shifting, pedal lightly while using the gear shifter. Do not backpedal. • If you are pedalling too fast, and there is not enough resistance, shift into a harder gear. • You will also go faster. If you are pedalling too slow, and it is hard to turn over the pedals, try shifting into an • easier gear. KNAAP BIKES...

  • Page 61: Using The Lighting System

    4.5 USING THE LIGHTING SYSTEM 4.5.1 FRONT LIGHT AND REAR LIGHT Make sure that the battery and the LCD display are switched on. Press the button to switch on the lights. Press the button to switch off the lights. 4.5.2 REFLECTORS The bike has three types of reflectors: Reflectors attached to the wheels...

  • Page 62: Recommendations For First-Time Ebike Riders

    Take into account the weight of the drive unit and the battery when pumping up the tires. The Knaap bike is powered by a 36 V, 21 Ah lithium-ion battery. The battery is a critical • component and one of the most expensive components to replace. Make sure that you follow our recommendations to maximize the service life of your battery. See section 4.1 Using the battery. KNAAP BIKES...

  • Page 63: Mechanical Safety Check Before Riding

    4.6.2 MECHANICAL SAFETY CHECK BEFORE RIDING TASK INSTRUCTIONS Straddle the bike and lift the front wheel approximately 5 cm (3 inches) off the ground. Release the bike and allow the front wheel to drop and bounce. Check for loose nuts Listen for any rattling: This may indicate that some parts are loose.
  • Page 64 Check the the grip is fitted onto the handlebars. Loosely fitted handlebar grips can slip off, handlebar grips potentially resulting in loss of control and falling. Make sure that the battery is securely connected and locked to the Check the bike. battery Check the battery charge status. Checking Check the exposed cables for cracks, cuts or signs or wear. the cables KNAAP BIKES...

  • Page 65: Maintenance

    MAINTENANCE In order to keep your bike in a good shape it must be inspected and maintained at regular intervals. This can be done either by yourself or a skilled technician. Also make sure that you clean your bike regularly. It doesn’t take long and it gives you the chance to spot any faults before they develop into anything serious.

  • Page 66: Cleaning The Bike

    Degrease the chain: Soak a clean rag with degreaser. Make sure that the degreaser gets on every link: Backpedal while you grasp the chain with the rag. The dirt will come off the chain. Repeat until the chain is clean. KNAAP BIKES...
  • Page 67 Dry the chain. Clean the drivetrain: Use a clean rag to clean between chainrings, cogs and other hard-to-reach parts. Scrub the chainrings. Use a brush to get into the hard-to-reach parts. Rinse with a gentle stream of water. Moisten the cassette with water with bike cleaner and scrub it clean. Rinse with a gentle stream of water. Clean the frame: Wash off the frame with a sponge moistened in water with bike cleaner.

  • Page 68: Adjusting The Chain Tension

    Make sure the brake discs and brake pads are never in contact with any oil or other lubricants. Oil or lubricants affect the brake's functioning and can lead to dangerous situations. 5.2 ADJUSTING THE CHAIN TENSION TOOLS/MATERIALS REQUIRED Knaap toolkit Put your bike on a bike stand. The wheels should be up in the air; otherwise it is difficult to tighten the bike chain. KNAAP BIKES...
  • Page 69 Carefully loosen the axle nuts that are holding your rear wheel onto the bike. This loosens the rear wheel, allowing you to adjust the tension on the chain. Carefully pull back on the rear wheel. This increases the tension on the chain. Check whether the tension is correct: The maximum play allowed when moving the chain is 1 cm or half an inch in either direction.

  • Page 70: Lubricating The Bike

    Make sure that the bike is clean and that the drive chain is degreased. See section 5.1 Cleaning the bike. LUBRICATION INSTRUCTION POINT Put a drop of lubricant on each link, while you backpedal slowly for a few rotations. Chain Wipe off the excess of lubricant. TIP: Not wiping off the excess of lubricant attracts more dirt to the chain. Never use motor oil. KNAAP BIKES...
  • Page 71 LUBRICATION INSTRUCTION POINT Rear shift cable: Shift the gears until the chain is on the largest sprocket, and then stop the wheel from rotating. Shift your shifter all the way in the opposite direction, as if you were going to shift to the smallest sprocket. The rear derailleur should now be stuck on the largest sprocket. This will give you enough slack to fully release the cable from the frame. Pull the upper section of the outer cable down leaving a section of inner cable exposed.
  • Page 72 Then apply a small drop of lubricant to the bearings at the center of Derailleur the pulley. pulleys Backpedal a few revolutions. Use a clean rag to wipe off any excess of lubrication. NOTICE Never use grease. KNAAP BIKES...

  • Page 73: Maintenance Schedule

    5.4 MAINTENANCE SCHEDULE MONTHLY SIX MONTHS YEARLY EVERY RIDE 500 KM / 600 MI 1,500 / 930 MI 4,500 KM / 2,800 MI Check your tire Clean your bike (see Clean your bike (see pressure and inflate as Inspect the pedals, section 5.1 Cleaning the section 5.1 Cleaning the add fresh grease, and needed.
  • Page 74 Replace as needed Replace as needed making firm contact your suspension and lubricate good and lubricate good with either the rim or components. cables/housing at cables/housing at the brake disc. entry/exit points. entry/exit points. KNAAP BIKES...
  • Page 75 MONTHLY SIX MONTHS YEARLY EVERY RIDE 500 KM / 600 MI 1,500 / 930 MI 4,500 KM / 2,800 MI Check the cassette Check the suspension and the chainrings for fork (and shock) and wear; check the chain Maintain, lubricate, for wear, tight links, and the rear shock for and service compression and...

  • Page 76: Torque Settings

    Handlebar clamp nuts 5 - 6 Nm Brake lever nuts 10 - 12 Nm Check the nut diameter: • M4: 2.5 - 4.0 Nm All other nuts • M5: 4.0 - 6.0 Nm • M6: 6.0 - 7.5 Nm KNAAP BIKES...

  • Page 77: Transport And Storage

    TRANSPORT AND STORAGE TRANSPORTING THE BIKE AND THE BATTERY Risk of damage. Due to its size, shape and weight we do not recommend carrying the bike on the roof of a passenger car. Risk of fire. Appropriate measures must be taken when transporting the battery. 6.1.1 TRANSPORTING THE BIKE Make sure that the ON/OFF button of the battery is in the OFF position.

  • Page 78: Transporting The Battery

    Wash the bike thoroughly. Clean grease and oil key components like the chain and the • cassette. See section 5.1 Cleaning the bike for more details. Make sure that the battery is only charged to approximately 60% for storage. Check your • battery regularly. If the charge drops, recharge the battery to about 60%. Do not let the battery discharge completely. KNAAP BIKES...
  • Page 79 Make sure that the ON/OFF button of the battery is in the OFF position. • Store the bike in a dry area. Storing the bike indoors is ideal, but if you are storing your • bike in an outside shed or a garage that will go below freezing temperatures, remove the battery from the bike and bring it inside. Also keep in mind that temperature changes can cause condensation, with rusted bike components and corroded battery connectors as a result. USER MANUAL...

  • Page 80: Problem Solving

    The brake pads may be - Replace the brake pads. (squealing, too tight, - Contact a skilled technician, if needed. worn. no resistance...). The wheel is not well- - Your wheel must be centered. Contact your centered or wobbles. retailer or a skilled technician. KNAAP BIKES...
  • Page 81 ISSUE CAUSE SOLUTION - Charge the battery. See section 4.1.2 The battery is empty. Charging the battery. The hub motor is not The battery terminals starting. - Lubricate the battery terminals. are not lubricated - Contact a skilled technician, if needed. sufficiently. - Adjust the wheels. The bike is vibrating The wheels are not in - One of the wheels or both may need to be...
  • Page 82 The charger is not or damaged. charging. The battery weld line - Weld or replace the wiring. Contact your falls off or is damaged. retailer or a skilled technician. KNAAP BIKES...
  • Page 83 ISSUE CAUSE SOLUTION - Check whether the AC power outlet is functioning. - Check whether the charger is working. When connected to the AC power outlet, the LED should light up green. - Check whether the battery has been The battery is not Check the power connected correctly.
  • Page 84 Contact your retailer or a skilled switch of the LCD technician. display in the ON position. The hub motor is making a squeaking - Contact your retailer or a skilled technician. sound. The hub motor is - Contact a skilled technician. holding back. KNAAP BIKES...
  • Page 85 ISSUE CAUSE SOLUTION - Check whether the speed sensor is correctly installed. The LCD display The speed sensor - Check the attachment of the speed sensor. is not showing the may not be installed It must not be attached too tightly. driving speed.
  • Page 86 - Contact your retailer or a skilled technician. - The speed sensor must be installed The speed sensor is not correctly installed correctly. - Contact your retailer or a skilled technician. KNAAP BIKES...
  • Page 87 ENVIRONMENT AND DISPOSAL We care for the environment. By disposing the product, its packaging and its components in the proper manner, you help to avoid possible hazards for the environment and public health that could otherwise be caused by improper treatment of waste equipment. The recycling of materials contributes to the conservation of our natural resources. DISPOSAL OF ELECTRONIC COMPONENTS Old or worn parts have to be disposed of in the most environmentally friendly way, for example by bringing them to an acknowledged recycling centre. It is not allowed to dispose of electronic parts, accessories and components with unsorted municipal waste.
  • Page 88 Dispose of the product packaging via a collection point for the recycling of plastics (bubble wrap) and paper (carton boxes). The foam protection sleeves are not always easy to recycle. In some areas options can be very limited, as not all recycling centres can handle or process this material. Please check with your local recycling center. KNAAP BIKES...
  • Page 89 This manual is not intended as a substitute for and is not to be used for determining the suitability or reliability of this product for specific user applications. Knaap bikes shall not be responsible or liable for misuse of the information that is contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us. Copyright © 2022 by Knaap bikes All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher. USER MANUAL...
  • Page 90 Knaap AMS Weight 37 kg Load capacity 180 kg Samsung Li-ion 21Ah 36V 756Wh or Battery Samsung Li-ion 21Ah 48V 1.008Wh Charger Sans Electronic Input voltage: 110 - 240 VAC / 50-60 Hz Charger Output voltage: 42 VDC Rear hub motor Bafang LCD display Bafang C961 KNAAP BIKES...
  • Page 91 MAINTENANCE FORMS In order to keep your bike in a good shape it must be inspected and maintained at regular intervals. Fill in all details and make sure all maintenance checks are carried out, either by yourself or a skilled technician. MODEL INFORMATION Model Frame number Serial number of the drive unit Serial number of the battery Serial number of the LCD display Serial number of the charger Name of the bike shop Date of purchase...
  • Page 92 MAINTENANCE FORMS OWNER CONTACT DETAILS Name Address Postal code + city E-mail Phone KNAAP BIKES...
  • Page 93 MAINTENANCE 500 KM / 310 MILES (OR AFTER 3 MONTHS) Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by USER MANUAL...
  • Page 94 MAINTENANCE FORMS MAINTENANCE 1,500 KM / 930 MILES (OR AFTER 6 MONTHS) Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by KNAAP BIKES...
  • Page 95 MAINTENANCE 4,500 KM / 2,800 MILES (OR 12 MONTHS) Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by USER MANUAL...
  • Page 96 MAINTENANCE FORMS MAINTENANCE 7,000 KM / 4,350 MILES (OR AFTER 24 MONTHS) Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by KNAAP BIKES...
  • Page 97 MAINTENANCE 9,500 KM / 5,900 MILES (OR AFTER 36 MONTHS) Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by USER MANUAL...
  • Page 98 MAINTENANCE FORMS MAINTENANCE 14,500 KM (OR AFTER 42 MONTHS) Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by KNAAP BIKES...
  • Page 99 MAINTENANCE 17,000 KM (OR AFTER 48 MONTHS) Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by USER MANUAL...
  • Page 100 MAINTENANCE FORMS MAINTENANCE ___________ KM / MI Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by KNAAP BIKES...
  • Page 101 MAINTENANCE ___________ KM / MI Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by USER MANUAL...
  • Page 102 MAINTENANCE FORMS MAINTENANCE ___________ KM / MI Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by KNAAP BIKES...
  • Page 103 MAINTENANCE ___________ KM / MI Maintenance task Repairs Comments Date and distance (km/mileage) Knaap bikeshop Signed by USER MANUAL...
  • Page 104 Put on your coolest clothes, make sure you buckle up your helmet, call your best friend and head out on the road! Live the life you love! “” WWW.KNAAPBIKES.COM knaap bikes knaapbikes HARSWEG 19C 2461 EZ, TER AAR THE NETHERLANDS +31 85 060 7549 info@knaapbikes.com...
