Installation on site
3.4

Electrical connection

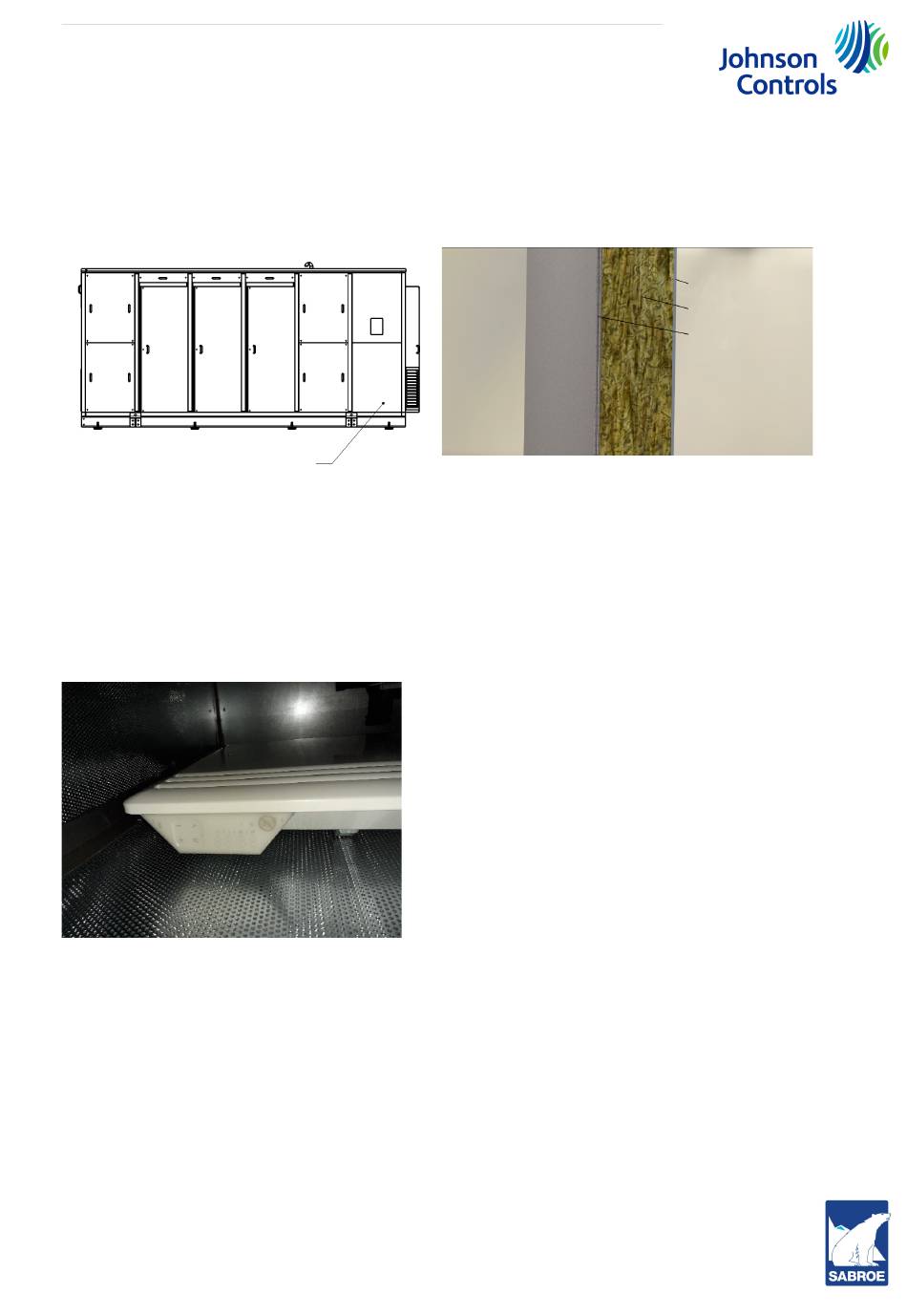

The enclosure is supplied with a reinforced panel for cable lead-in. The exact location of the re-
inforced panel is shown in the GA drawing, see also Fig. 9. The panel section is reinforced with
a glued double outer plate to mount cable glands for cable entry. The construction of the rein-
forced panel is illustrated in Fig. 10.
Reinforced plate
for cable glands
Fig. 9
3.5

Settings for heating panels

The heating panel secures against frost. The turn-on temperature should be set at 5°C and the
turn-off temperature at 15°C.
To install the thermostat, follow instructions in "Nobø NCU-2Te" manual, see Fig. 11.
Fig. 11
Installation and operation manual
0013321 en 2022.05
Fig. 10
9/20
Inside:
Perforated plate
In the middle:
Insulation
Outside:
2 x alu-zink plate
