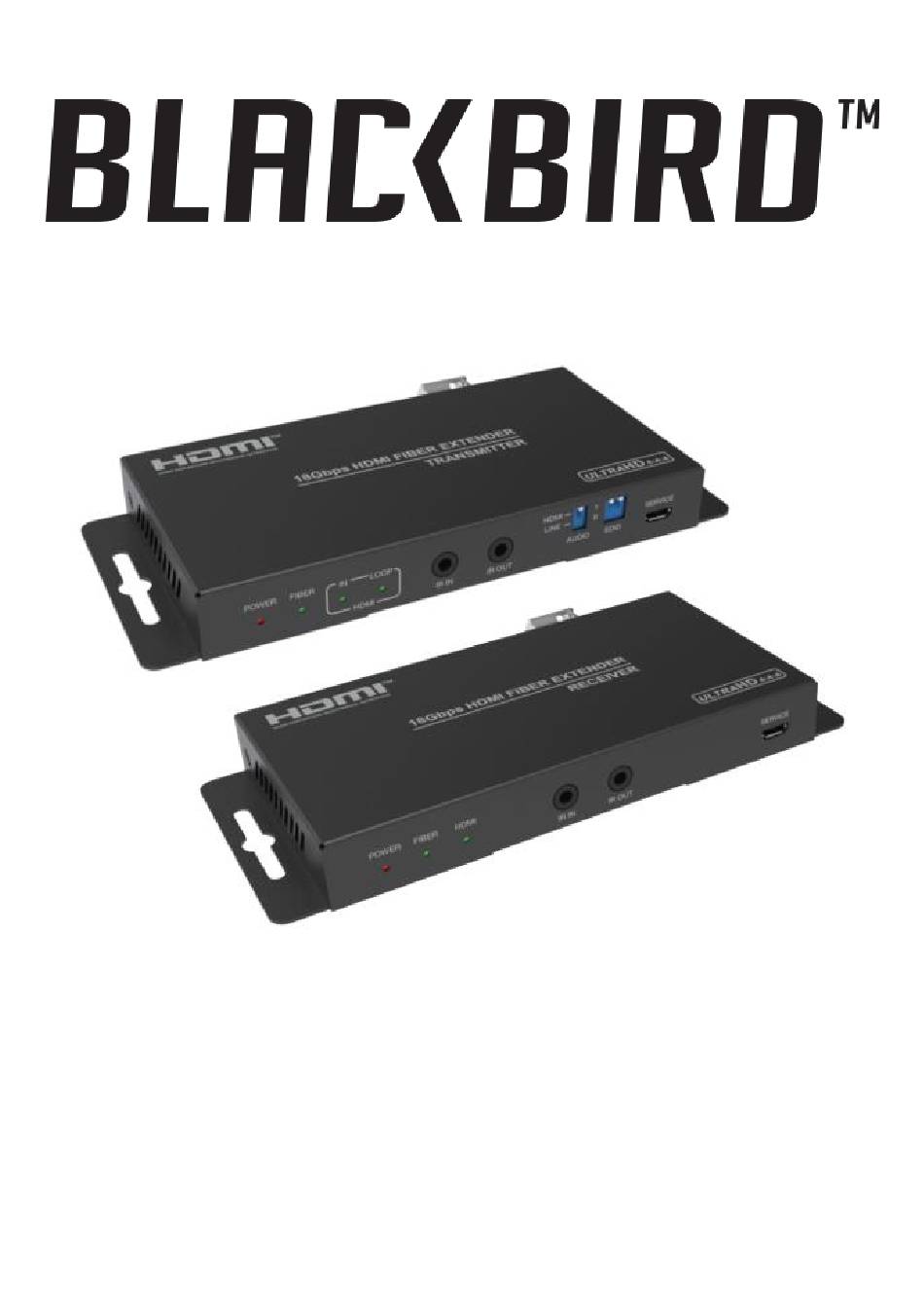

- Page 1 4K Fiber Optic HDMI® Extender P/N 24279 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 other cords. Ensure that the power cord does not present a tripping hazard. Never unplug the unit by pulling on the power cord. Always grasp • the connector head or adapter body. Ensure that power is turned off and disconnected before making •...
- Page 4 FEATURES Extends an HDMI® signal to distances up to 32,800 feet (10 km) • using a single-mode fiber optic cable Supports video resolutions up to 4K@60Hz with the YCbCr 4:4:4 • color space Complies with the HDMI 2.0b, HDCP™ 2.2, and DVI™ 1.0 •...
-
Page 5: Customer Service
CUSTOMER SERVICE The Monoprice™ Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 6: Product Overview
PRODUCT OVERVIEW Transmitter Front Panel POWER: The LED illuminates when power is applied. FIBER: The LED illuminates when there is a valid fiber optic connection between the transmitter and the receiver. HDMI IN/LOOP: The IN LED illuminates when there is a valid HDMI® signal on the HDMI IN port. - Page 7 EDID: Two DIP switches for setting the EDID® that is sent to the EDID MANAGEMENT video source device. Refer to the section for details on setting the switches. SERVICE: Micro USB port for performing firmware updates. Transmitter Rear Panel DC 5V: DC barrel connector for connecting one of the included AC power adapters.
- Page 8 Receiver Front Panel POWER: The LED illuminates when power is applied. FIBER: The LED illuminates when there is a valid fiber optic connection between the transmitter and the receiver. HDMI: The LED illuminates when there is a valid connection between the receiver and a connected HDMI® display. IR IN: 3.5mm jack for connecting an IR receiver to send IR signals to the transmitter to control the video source device from the receiver location.
-
Page 9: Edid Management
FIBER: Fiber optic receiver module with an LC connector for connecting a single-mode fiber optic cable to receive signals from the transmitter. HDMI OUT: HDMI® port for connecting an HDMI display. 10. AUDIO OUT: 3.5mm stereo audio output jack for connecting an external amplifier or speakers to play audio de-embedded from the HDMI signal. -
Page 10: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM... -
Page 11: Technical Support
To download the latest drivers, firmware, manuals, etc., go to www.monoprice.com and type the P/N into the search bar. If available, support files are linked at the bottom of the product page. SPECIFICATIONS 24279 HDMI® Version 2.0b HDCP™ Version Maximum Video Resolution... - Page 12 2-, 5.1-, and 7.1-channel LPCM, Dolby Digital™, Dolby Digital Plus™, Dolby Digital EX, Dolby Supported Audio Formats TrueHD™, DTS®, DTS-ES®, DTS:X®, DTS-96/24, DTS-HD™, DTS-HD Master Audio™, and Direct Stream Digital™ (DSD) Up to 32,800 feet (10 km) over a Transmission Distance single-mode fiber optic cable IR Frequency 20 ~ 60 kHz...
-
Page 13: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 14 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
