Summary of Contents for Blackbird H.265 HDMI

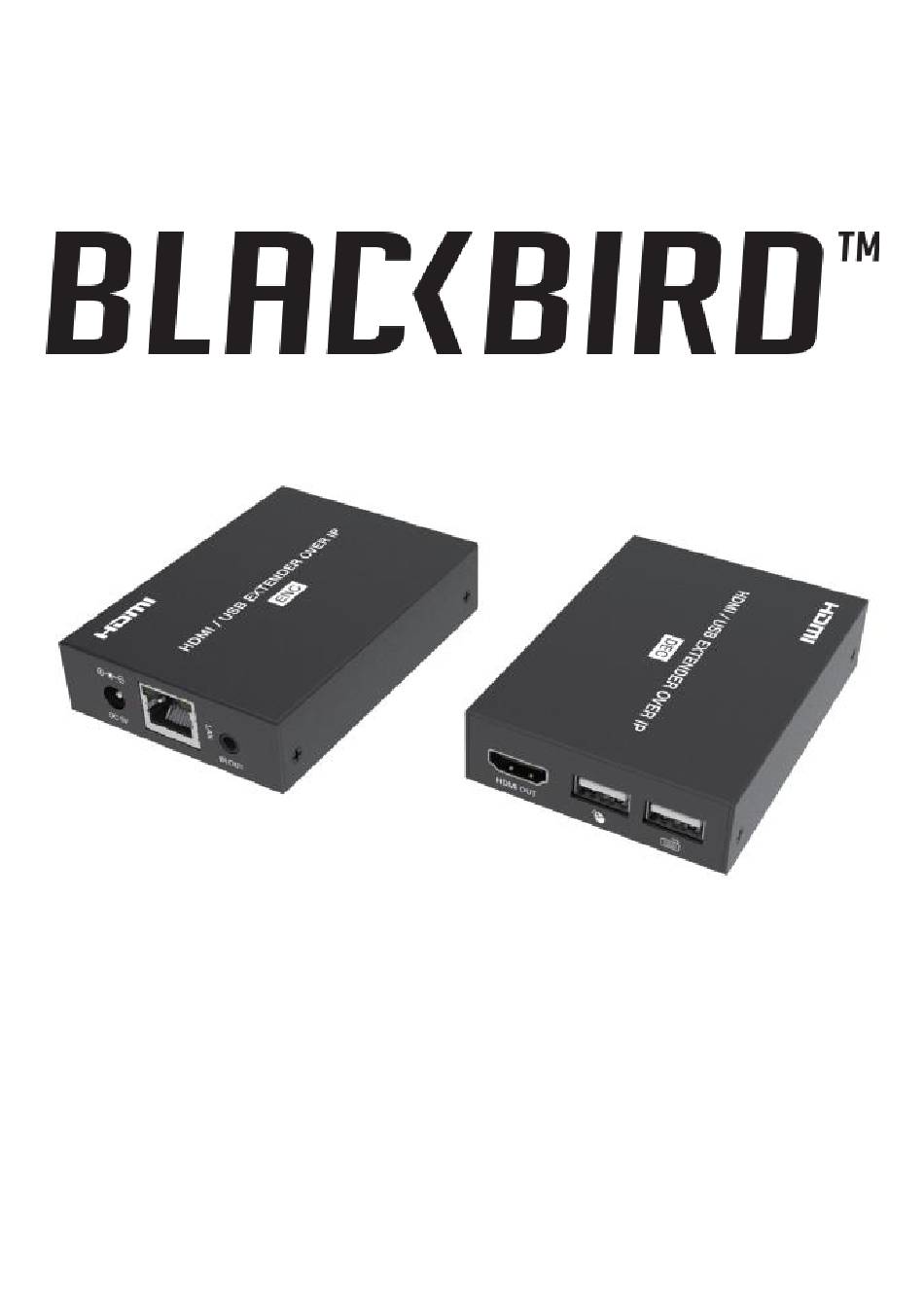

- Page 1 H.265 HDMI® over IP KVM Extender P/N 42273 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Prior to operation, check the unit and power cord for • physical damage. Do not use if physical damage has occurred. Before plugging the unit into a power outlet, ensure that • the outlet provides the same type and level of power required by the device.

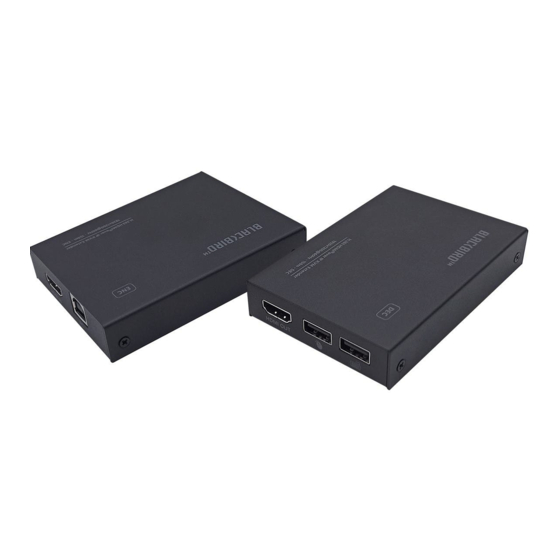

- Page 4 INTRODUCTION This H.265 HDMI® over IP KVM Extender allows you to extend an HDMI audio/video, USB data, and IR control signals to distances up to 492 feet (150 meters) over a single Cat5e/6 Ethernet cable. It complies with the HDMI 1.4, HDCP™ 1.4, and USB 1.1 standards. It supports video resolutions up to 1920x1200@60Hz with YCbCr 4:4:4 color space.
- Page 5 FEATURES Extends HDMI® audio/video, USB data, and IR control • signals to distances up to 492 feet (150 meters) Supports video resolutions up to 1920x1200@60Hz with • YCbCr 4:4:4 color space Provides up to 6.75 Gbps video bandwidth • Complies with the HDMI 1.4, HDCP™ 1.4, and USB 1.1 •...
-
Page 6: Customer Service
CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 7: Product Overview
PRODUCT OVERVIEW Encoder DC 5V: DC barrel connector for connecting the included AC power adapter. LAN: RJ45 jack for connecting a Cat5e/Cat6 Ethernet cable (not included) to the decoder. IR OUT: 3.5mm jack for connecting the included IR transmitter. 4. HDMI IN: HDMI® port for connecting the video output from a computer or other video source device. - Page 8 Decoder DC 5V: DC barrel connector for connecting the included AC power adapter. LAN: RJ45 jack for connecting the Cat5e/6 Ethernet cable (not included) from the encoder. IR IN: 3.5mm jack for connecting the included IR receiver. 4. HDMI OUT: HDMI® port for connecting an HDMI display. 5.
-
Page 9: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM One-to-One... - Page 10 One-to-Multiple...
-
Page 11: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 12 HDCP™ Version USB Version Color Depth 8/10/12-bits/channel Supported Color Spaces RGB, YCbCr 4:4:4/4:2:2 Compression Technology H.265 Supported Audio Format 2-channel LPCM Supported LPCM Sampling 32kHz, 44.1kHz, 48kHz Rates IR Frequency Range 20Hz ~ 60kHz Maximum Cat5e/6 Ethernet 492 feet (100 meters) Cable Length Maximum HDMI®...
-
Page 13: Regulatory Compliance
Operating Humidity 20 ~ 90% RH, noncondensing 2.6" x 3.6" x 0.7" Dimensions (each) (67 x 92 x 18 mm) Encoder Weight 5.5 oz. (155g) Decoder Weight 5.3 oz. (150g) REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause... - Page 14 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio...
- Page 15 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
