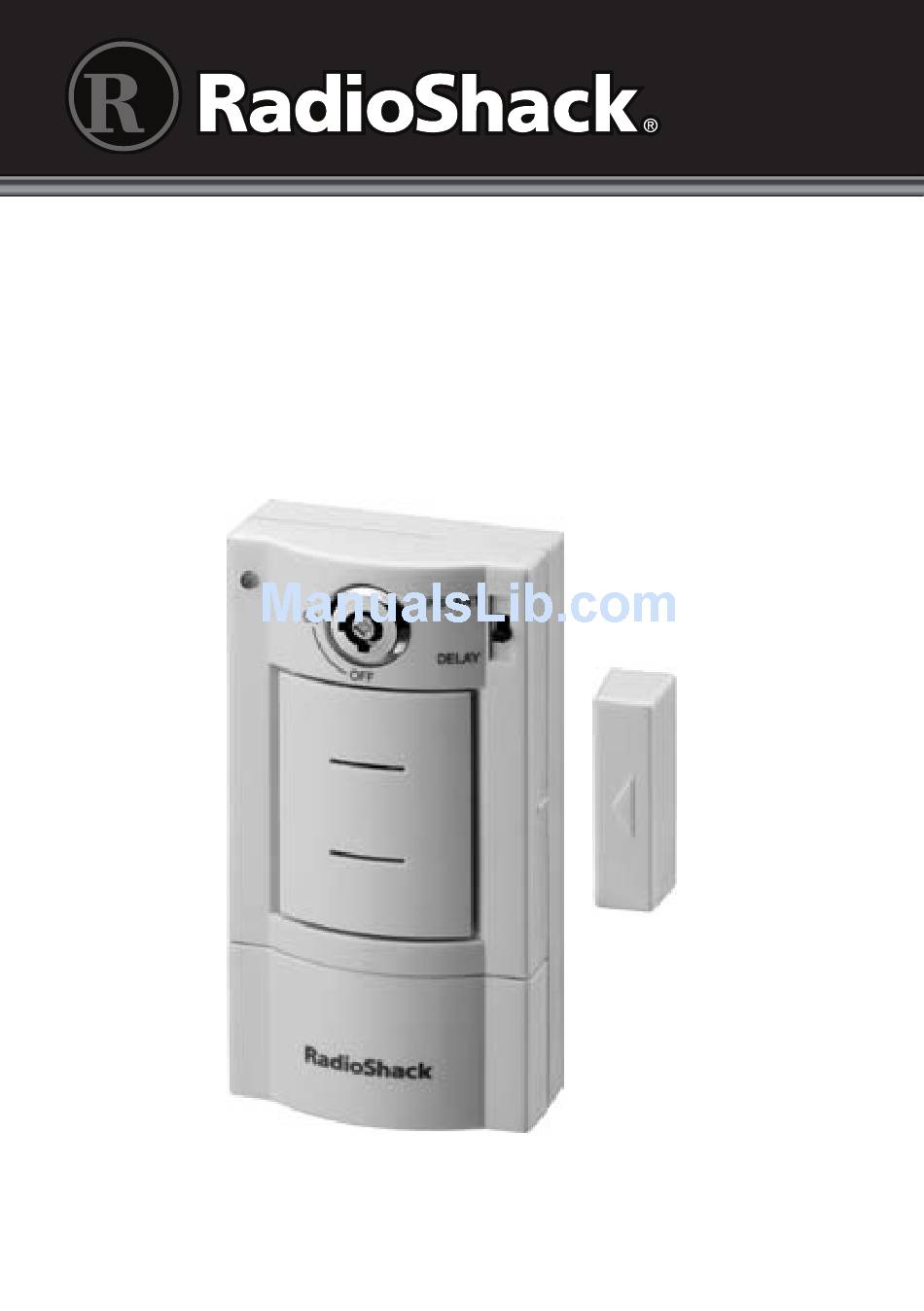

- Page 1 User’s Guide 4900118 Wireless • Key-Lock Door/Window Alarm...
-
Page 2: Package Contents
Thank you for purchasing your Door/Window Alarm from RadioShack. Please read this user’s guide before installing, setting up, and using your new alarm. Package Contents • Alarm • Key (2) • Screw (4) • Drilling Template • User’s Guide • Quick Start Features • 110dB alarm triggers upon entry • Instant and delayed alarm settings • Easy installation • Low power consumption Actual product may vary from the images found... -
Page 3: Choose A Location
Choose a Location • Mark a place on the door or window for your alarm. • Mark a place on the door frame or window frame for the magnet, aligning the magnet’s arrow with the engraved line on the alarm. • Keep the magnet edge less than inch (8 mm) from the alarm. ”... - Page 4 Mount the Alarm Use the supplied adhesive strips or screws. With Screws 1. Use the supplied drilling template to mark the mounting screw location. 2. Drill two 3. Insert the top screw, leaving about inch (3 mm) to attach the alarm. 4. Install the alarm over the top screw. 5. Remove the screw on the bottom of your alarm and slide off the battery compartment cover. 6. Insert the lower screw through the hole inside the battery compartment. inch (2 mm) holes. -OR-...
- Page 5 Mount the Magnet Use the supplied adhesive strips or screws. Do not use both strip and screws. With Screws 1. Use a flat head screwdriver to remove the mounting plate from the magnet. 2. Use the supplied screws to secure the mounting plate to the selected surface. 3. Connect the magnet to the mounting plate. -OR-...
-
Page 6: Install Batteries
Install Batteries Insert two AAA batteries (not supplied) into the compartment as indicated by the polarity symbols (+ and –) marked inside. Notes: • Replace the batteries if the alarm sound weakens or the LED flashes red. • Dispose of old batteries promptly and properly. Do not burn or bury batteries. • Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or rechargeable batteries of different capacities. - Page 7 Use the Alarm Instant Activation 1. Slide the INSTANT/DELAY switch to INSTANT. 2. Insert the key and rotate to ON. 3. Once activated, the alarm will sound any time if it is moved away from the magnet. After about 90 seconds, the alarm turns off and the LED flashes green. Turn the key to OFF to silence the alarm immediately. INSTANT/DELAY switch Key Slot...
-
Page 8: Fcc Information
Delay Activation 1. Slide the INSTANT/DELAY switch to DELAY. 2. Insert the key and rotate to ON. The LED lights green and you have 15 seconds to close the door. After 15 seconds, the alarm arms and the LED turns off. Deactivation • When you open the door, the LED lights red. Rotate the key to OFF within 10-15 seconds of opening the door. • If you do not disarm the alarm, the LED flashes green after the alarm has sounded for 90 seconds. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off... -
Page 9: Limited Warranty
and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Limited Warranty RadioShack warrants this product against defects in materials and workman- ship under normal use by the original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S. RadioShack will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor;... - Page 10 on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. You may contact RadioShack at: RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/08 For product support, call 1-866-315-0426 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. ©2010. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. Printed in China 09B10 4900118...
