Thank you for purchasing your Wireless Security System from
RadioShack.
security console
mounting hardware
magnets (2)
door/window sensors (2)
Please read this user's guide before installing,
setting up and using your new product
www.radioshack.com
Wireless Security System
door/window sensor
and magnet
what's included
49-1000
Plug 'n Power
AC adapter
keychain remote
keychain remote (1)
AC adapter
or (1)
motion detect
Advertisement
Table of Contents
Related Manuals for Radio Shack 49-1000
Summary of Contents for Radio Shack 49-1000
- Page 1 Please read this user’s guide before installing, setting up and using your new product www.radioshack.com Wireless Security System door/window sensor and magnet what’s included 49-1000 Plug ‘n Power AC adapter keychain remote keychain remote (1) AC adapter ...
-
Page 2: Table Of Contents
The Basics contents Introduction Installing Your Security System Locating Security System Components Attaching Your Cords Installing the Backup Batteries Locating Your Security Console A Look at Your Security Console Setting Up Your Security System Reviewing Your Menu Options Initializing/Registering Your Keychain Remote Initializing Your Door/Window Sensors Registering Your Door/Window Sensors De-Registering Your Door/Window Sensors... -
Page 3: Introduction
The Basics Introduction Thank you for purchasing your Wireless Security System from RadioShack. It includes a Security Console with an automatic dialer that calls neighbors or friends in the event of a break-in. Two battery-powered Wireless Door/Window Sensors trigger the alarm when a door or window is opened. -
Page 4: Installing Your Security System
The Basics Installing Your Security System locating your system components Choose a central location for your Security Console that is near a modular telephone jack and an AC outlet. You can place it on a shelf or table, or mount it on a wall. Plan the location of the Door/Window Sensors and Motion Detectors so the RF path, which runs in a straight line from the sensor to your Security Console, is not obstructed by large metal... -
Page 5: Installing The Backup Batteries

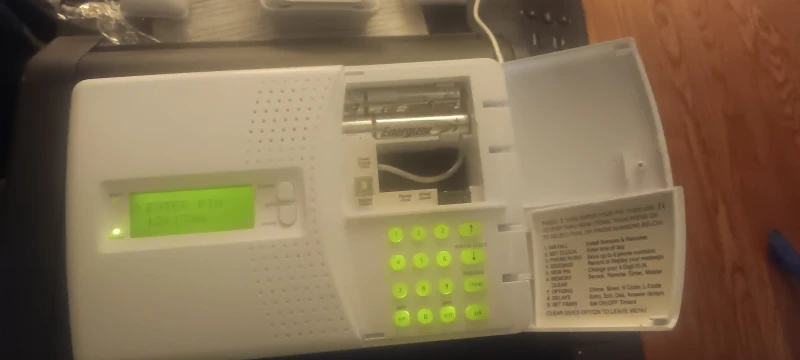

The Basics installing backup batteries Open the battery compartment at the top right side of your Security Console and install four AA alkaline batteries (not supplied). You do not need to disconnect power when installing or replacing batteries. “TAMPER” appears in the display when you open the lid. After installing your batteries, close the lid and enter your PIN to remove “TAMPER”... -
Page 6: Setting Up Your Security System
Beyond the Basics Setting Up Your Security System reviewing your menu options After you’ve connected power to your Security Console, the display shows the time of day on the bottom left line, and “HOME CONTROL” in the top line. All features (except Home Control) require access to the Menu mode. - Page 7 Beyond the Basics a look at your sub-menus After pressing ok at the first menu level, you can select the sub-menus under that menu item. Or, you can go directly to the sub-menu item by pressing the corresponding number button. Phone Numbers Sub-menu You can enter up to six phone numbers (up to 16 digits), which your system will dial in the event your system cannot reach anyone...
-
Page 8: Initializing/Registering Your Keychain Remote
Beyond the Basics initializing your keychain remote Press and hold the arm button on your Keychain Remote for three to four seconds, and then release it. This initializes the remote and picks a random code that is used when it is registered with your Security Console. -
Page 9: De-Registering Your Door/Window Sensors
Beyond the Basics registering your Door/Window Sensors with the console Press either of the Menu “ENTER PIN” in the top line. When you enter your PIN, * displays for each number entered. Press ok when you see “INSTALL” on the display. ... -
Page 10: Mounting Your Door/Window Sensors
Beyond the Basics mounting your Door/Window Sensors Attach the Door/Window Sensor to the wall using the mounting screws provided. Place the Door/Window Sensor as high as possible at the top of the door/window, aligning the arrows on the magnet and Door/Window sensor. -
Page 11: Initializing Your Motion Detector
Beyond the Basics initializing your Motion Detector Remove the cover on the front of the Motion Detector and install two AA alkaline batteries in the compartment, matching the polarity (+ and -) marked inside. Replace the cover. Press and hold the TEST button on the back of your Motion Detector for three to four seconds, and then release it. -
Page 12: Mounting Your Motion Detector
Beyond the Basics When you replace your batteries, press arm to arm your system. Walk past the Motion Detector. If the system does not Note trip, you must register the Motion Detector again. de-registering your Motion Detector Press Menu / and enter your PIN. ... -
Page 13: Connecting Hard-Wired Inputs
Beyond the Basics Your Motion Detector will return to normal operating mode automatically after about two Note minutes. connecting hard-wired inputs You can connect two hard-wired magnetic contact switches to the console. These will be zones 31 and 32. You can install a total of 30 additional zones, which can be a combination of Door/Window Sensors and Motion Detectors. -
Page 14: Recording Your Outgoing Message
Beyond the Basics Press ok. You also can press 3 to go directly to the “PHONE NUMS” menu. / Press Menu PHONE 2, and so on). Press ok at the desired number. The display shows “SET PH1, SET PH2,”... -
Page 15: Changing Your Pin
Beyond the Basics changing your Personal Identification Number (PIN) / Press Menu and enter your old PIN. When you see “INSTALL” on your Security Console, press / Menu until you reach the “NEW PIN” menu. Press ok. You also can press 5 to go directly to the “NEW PIN” menu. -
Page 16: Setting The Delays
Beyond the Basics / Use Menu to choose from the following sub-menu items: CHIME SIREN HOUSECODE LIGHTCODE setting delays Press Menu / and enter your PIN . When you see “INSTALL” on your Security Console, press / Menu until you reach the “DELAYS”... -
Page 17: Reviewing/Canceling/Replacing Timers
Beyond the Basics Enter your desired “On” time and press am or pm. Or, you can press ok if you don’t want to set an On time. Press clear if you enter a wrong time. Press ok. TIMER 12 OFF displays in the top line of your security console and the bottom line displays a (:). -
Page 18: Using Your Security System
Beyond the Basics Using Your Security System arming your system arm home/away Press arm home on your Security Console to arm all Door/Window Sensors instantly. Motion Detectors will not trip the system when it is armed in the “ARM HOME” mode. Press arm away to arm all Door/ Window Sensors and Motion Detectors. -
Page 19: When There's An Alarm
Beyond the Basics You can’t arm the system until you fix the problem zone, or bypass the zone. If you try to arm the system before resolving the problem zone(s), a repetitive “trouble alarm” sounds to alert you to respond. If your Security Console has been tampered with, i.e. -
Page 20: Tampering
Beyond the Basics if your security console is tampered with If your system is armed and someone tampers with (opens the cover on a Door/Window Sensor, the Motion Detector or the Security Console), the alarm is tripped and a loud siren sounds. If the system is not armed and someone tampers with a Sensor or the Security Console, the word “TAMPER”... -
Page 21: Setting Up Optional Lamp Modules
Beyond the Basics Setting Up an Optional Lamp Module setting your module’s codes Using a small screwdriver, set your module’s red House Code dial to the same letter as your Security Console. Set the Black Unit Code dial to any unused number. -
Page 22: Operating From An Outside Telephone
Beyond the Basics Operating Your System from an Outside Telephone Your Security Console has remote telephone access, with voice responses to acknowledge receipt of remote commands. When you call home, your Security Console answers and says “Please enter PIN.” 1. Enter your PIN using the touch tone buttons on the remote telephone. -
Page 23: Battery Notes
Beyond the Basics Battery Notes Door/Window Sensors, Motion Detectors and Keychain Remotes are designed to operate for approximately one year after the appropriate batteries are installed. Since operating conditions vary from installation to installation, we recommend replacing batteries every six months. security console The batteries in your Security Console are used as a backup when there has been a power failure. - Page 24 Beyond the Basics Door/Window Sensors and Motion Detectors If a zone has not reported in to the Console during the last four hours, the display will show PROBLEM and the appropriate zone number when you try to arm the system. This is most likely caused by dead batteries in the Motion Detector or Door/Window Sensor for that zone.
-
Page 25: Frequently Asked Questions
Beyond the Basics Frequently Asked Questions Question Why can’t I arm my system? Why does “PROBLEM” and a Zone number display when I try to arm my system? Why does the alarm sound when I enter the house before I have time to disarm it? Why don’t I hear a beep from the Security Console... - Page 26 Beyond the Basics Question What should I do if I lose my remote control? Why do I hear a repetitive trouble alarm when I try to arm the system, and it does not arm? Why does my Motion Detector cause false alarms? Answer Re-register your complete system...
- Page 27 Beyond the Basics Question Why won’t my lights turn on or off using the on or off buttons on my Keychain Remote? Why don’t I hear a beep from my Security Console when I register a Door/ Window Sensor or Motion Detector.
- Page 28 The Basics Question Why do my appliances turn off during an alarm? Why does my system Arm or Disarm by itself? Why does the light on my Keychain Remote stay on during initialization? Why didn’t my alarm trip when I opened the door/ window? Answer Your appliance modules might be set...
-
Page 29: Intercom Systems
The Basics Question Why is the battery indicator on my Security Console on? Why does the alarm cause still display after I disarm it? Special Note Intercom Systems Intercom systems that send voice signals over existing electrical wiring may interfere with the ability to control modules from your security system while the intercom is in use. -
Page 30: Fcc Wants You To Know
B4SAL11B-SC12A. If requested, this number must be provided to the telephone company. Note: The security functions of this system have not been tested by Underwriters Laboratories. Product: Model: Responsible Party: RadioShack Corporation Phone: Home Automation Security Kit 49-1000 100 Throckmorton St. Fort Worth, TX 76102 817-415-3200... -
Page 31: Accessories
