Summary of Contents for Mocka Vigo Hallway Stand

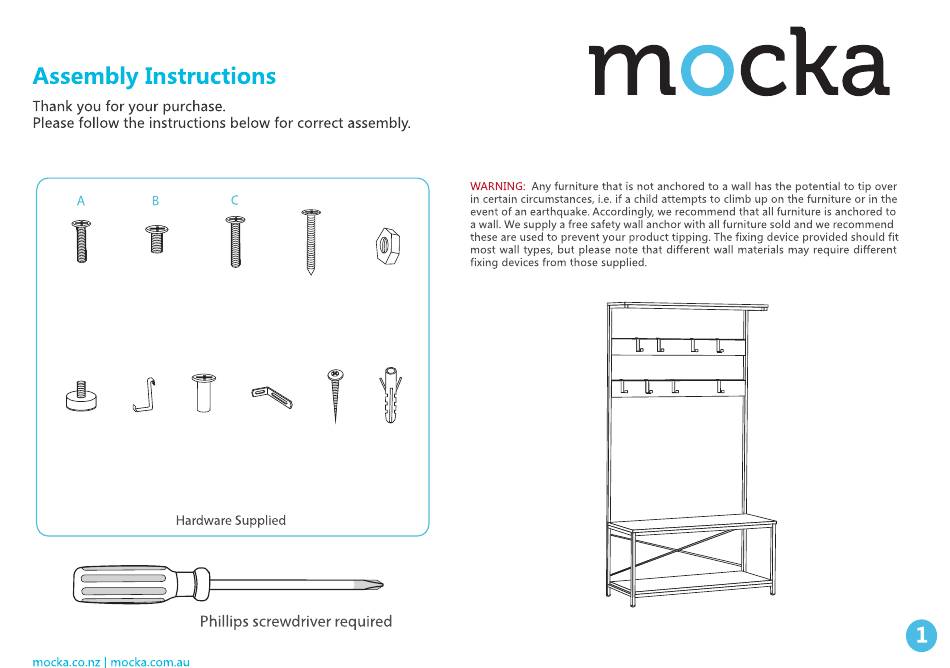

- Page 1 Vigo Hallway Stand 50mm screw 30mm screw 15mm screw 40mm screw M6 screw × 20 × 9 × 12 × 8 × 1 screw wall strap wall plug screw feet hanger × 4...
- Page 2 Vigo Hallway Stand Attach 6 × frames ⑦ to the main frame and secure with Insert 4 × feet (F) into 2 × frame ⑥ as shown. Attach frame ⑤ to frame ⑥ and secure with 4 × 15mm 12 × 40mm screws (C). Tighten with a screwdriver.
- Page 3 Vigo Hallway Stand A A A A Attach panel ① & ② & ④ to the assembled frame and Attach 2 × panels ③ to the main frame and secure with secure with 20 × 30mm screws (A). Tighten with a screwdriver.
- Page 4 Vigo Hallway Stand Attach 2 × frames ⑧ to the assembled frame and secure Connect 2 × frames ⑧ and secure with 1× screw (E) and 1 × 15mm screw (B). Tighten with a screwdriver. with 4 × screws (H) and 4 × 15mm screws (B). Tighten...
- Page 5 Vigo Hallway Stand Hang 8 × hangers (G) into panel ③. Once assembled lift furniture into place, do not drag. Use a drill to create a small hloe lining up with the top of the 2 × wall straps (I). Fasten to the wall using 2 ×...
- Page 6 Vigo Hallway Stand You`re done, enjoy!
