Hearth & Home GRAND-I35-PILOT Instructions

GRAND-I35-PILOT, NDI30-PILOT, QFI30-PILOT
QFI35-PILOT, NDI35-PILOT, SUPREME-I30-PILOT
Models: GRAND-I35, NDI30, NDI35, QFI30, QFI35, SUPREME-I30

Conversion Instructions

This conversion shall be installed by a qualifi ed service
agency.
Any damaged valve components should not be installed.
Conversion Component list:
• NG Pilot Assembly
• Pilot Bracket (NDI30/NDI35 Only)
• Burner Neck Gasket (NDI30/NDI35 Only)
• Grommet
• LP Pilot Orifi ce
• Base Pan
• Pilot Shield
• Burner (Not included with NDI30/NDI35)
CAUTION: THE GAS SUPPLY SHALL BE SHUT OFF
PRIOR TO DISCONNECTING THE ELECTRICAL POW-
ER BEFORE PROCEEDING WITH THE CONVERSION.
WARNING:
This Conversion kit shall be installed by a qualifi ed
service agency in accordance with the manufacturer's
instructions and all applicable code and requirements
of the authority having jurisdiction. If the information
in these instructions is not followed exactly, a fi re,
explosion or production of carbon monoxide may
result causing property damage, personal injury or
loss of life. The qualifi ed service agency is responsible
for the proper installation of this kit. The installation
is not proper and complete until the operation of the
converted appliance is checked as specifi ed in the
manufacturer's instructions supplied with the kit.
Procedure for conversion:
1. INTELLIFIRE PLUS MODELS ONLY: This step is not
applicable for NDI30/NDI35. Switch control module to
OFF mode using selector switch. See Figure 1.
2. Turn off power to module and valve by unplugging the
transformer from the junction box.
3. Turn off gas to valve. Red gas shutoff knob is located
on ball valve.
4. Remove the logs and grate from the appliance. Remove
the refractory set, if installed.
5. Unplug the green wire from the valve. See Figure 3.
1 Hearth & Home Technologies • Pilot/Burner Conversion Instructions • 2205-937 Rev. C • 4/15
Pilot/Burner Conversion Instructions
WARNING
Shock or burn risk.
• Disconnect green wire from gas valve.
Failure to disconnect green wire could
result in severe burns.
NOTICE: Selector Switch on module MUST be in OFF
mode before valve regulator lead can be connected or
disconnected from valve.
NOTE: APPEARANCE OF MODULE MAY VARY
MODULE

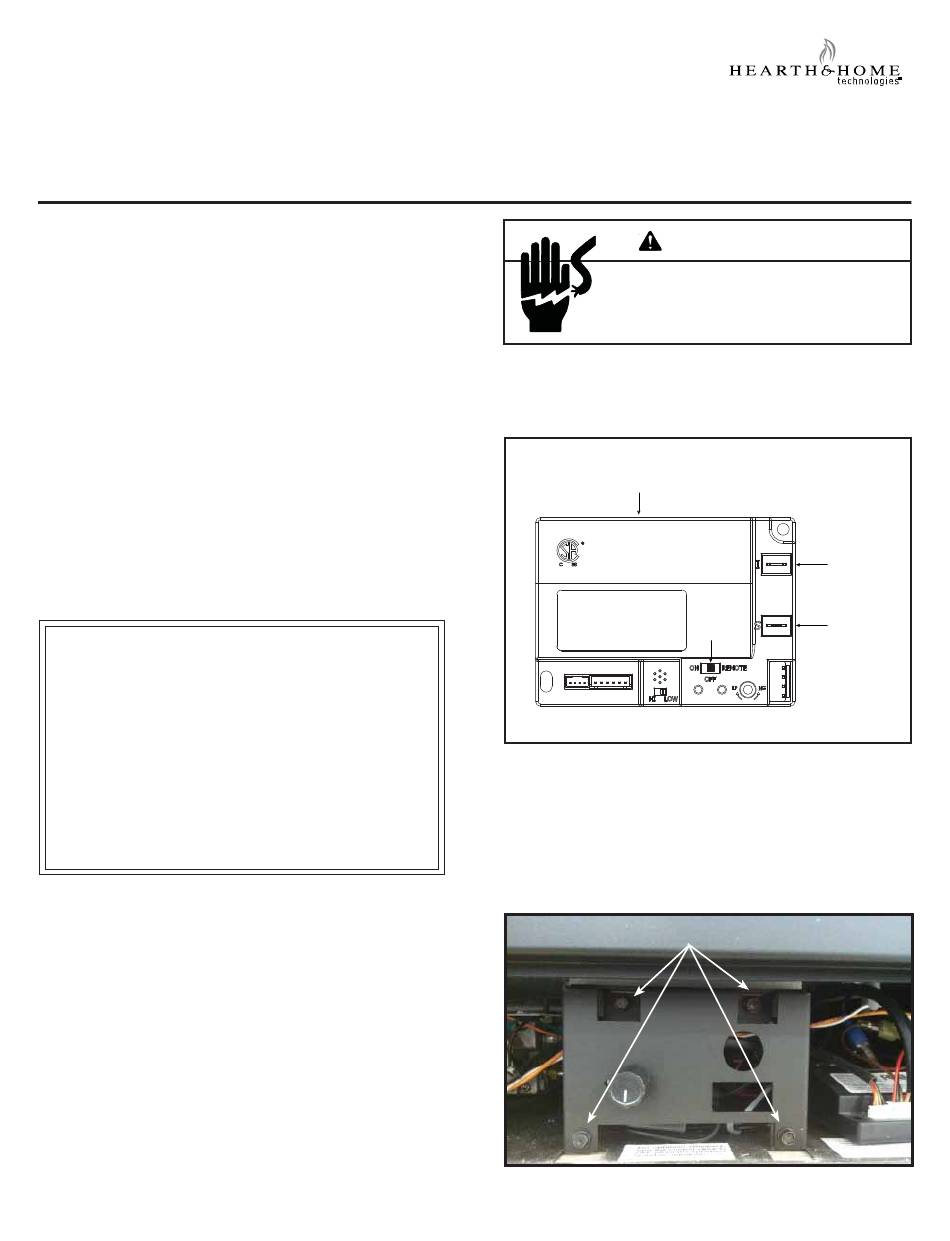

Figure 1. Module

EXISTING PILOT REMOVAL

6. Disconnect the orange and white wires from the mod-
ule. See Figure 1.
7. Remove the control panel by removing four screws to
gain access to the pilot tube. See Figure 2.
SCREWS SCREWS
Figure 2. Control Panel
ORANGE
SELECTOR
WHITE
SWITCH
