QSC ISIS I-282H Specification Sheet

Features
• Dual 8", 2-way system – in a lightweight, weather-resistant,
multipurpose enclosure featuring a heavy duty, powder coated
aluminum grille
• Advanced Directivity™ rotatable waveguide – (90° x 60°)
enables the loudspeaker to deliver accurately focused sound,
regardless of the enclosure's mounted orientation
• High power capability – rated at 450 watts (IEC)
• Switchable biamp or passive operation – with parallel outputs
• Contemporary style, weather resistant enclosure and
components – ideal for a wide range of applications
®
• Two parallel Speakon connectors – for quick, secure audio
input setup
• Pole cup, yoke mount, and monitor feet – included for
versatile mounting options

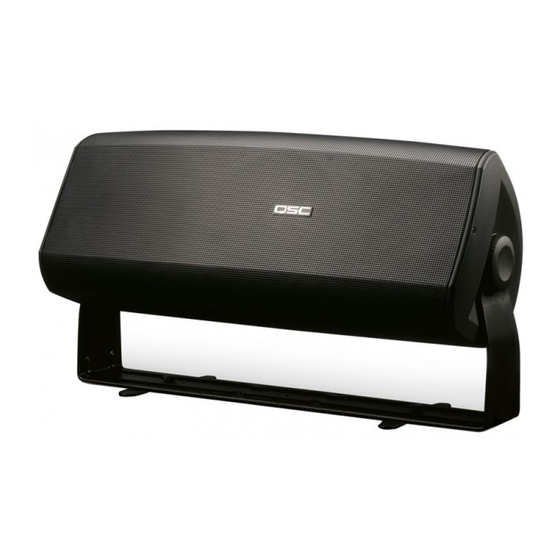

The QSC I-282H is a dual 8",
2-way, full range loudspeaker
with contemporary styling that
easily integrates into multiple
environments. Pole mounted,
truss mounted, or used as a floor
monitor/stage fill, these injection
molded speakers are an excellent
choice for musicians, mobile
entertainers, and anyone else
needing a high-quality, lightweight
SR package that sounds superb,
is visually unobtrusive, and with
its built-in handles, is easy to
transport.
The I-282H enclosure incorporates
two 8" weather resistant, LF
transducers with heavy-duty
double roll cloth surrounds and
a 1" exit HF compression driver.
The HF driver is coupled with
QSC's unique Advanced Directivity
Rotatable Waveguide—enabling the
loudspeaker to deliver accurately
focused sound, regardless of its
orientation. For quick and secure
input setup, the I-282H provides
two parallel Speakon connectors.
An ideal solution for a variety of
mobile SR applications, the I-282H
includes a pole cup for pole
mounting with either 1 1/2" or 1
3/8" diameters. Or by using the
included yoke mount with swivel
extension feet, the I282-H can be
vertically or horizontally mounted
for pan and tilt focusing or used as
a floor monitor. For truss mounting,
the yoke accepts most industry
standard truss clamps.
Specifications
Configuration Compact 2-way, ported enclosure
Transducers
Low-frequency Transducers Dual 8" high power, treated paper cone, 2" voice coil, neodymium magnet
High-frequency Transducer 1" exit high output compression driver, 1.7" diameter voice coil
1
Frequency Range
Frequency Response (-6 dB) 80 Hz – 27.7 kHz
Usable Frequency Range (-10 dB) 60 Hz – 29.5 kHz
2
Maximum Output (SPL at 1 m) Fullrange (passive mode)
Continuous 120
Peak 126
Nominal Impedance Passive
8Ω
3
Power Rating Passive
450 W (IEC, 8 hours)
Recommended Max Amp Power Passive
900 W RMS
4
Sensitivity (SPL, 1 W at 1 m) Passive
93 dB (100 Hz – 10 kHz)
Nominal Coverage 90°H x 60°V (-6 dB) | rotatable to 60°H x 90°V
Bass Loading Ported, tuned to 60 Hz
Enclosure E
Material Injection molded, weather resistant, high impact polystyrene
Finish Black
Weather Resistance Yes
Grille Heavy duty powder coated aluminum
Connectors Two Speakon
Mounting Hardware Included: Pole cup and Yoke mount
Weight – Net / Shipping 28.5 lb (12.9 kg) / 36.8 lb (16.7 kg)
1) All frequency ranges specified refer to measured free field response (full space, 4π)
2) Calculated SPL at 1 m, full space (4π), speaker operating at rated RMS power with pink noise within specified frequency range
3) Maximum input power tested in accordance with IEC 268-5 recommendations, 50 Hz – 20 kHz band limiting, 6 dB signal
crest factor, 8 hours
4) Based on nominal impedance, measured in full-space
ISIS Series Loudspeaker
LF (biamp mode)
124
130
LF
8Ω
LF
500 W (IEC 8 hours, 50 Hz – 2 kHz)
LF
97 dB (200 Hz – 2 kHz)
®
NL4FC connectors wired in parallel, passive /active switchable
I-282H
HF (biamp mode)
121
127
HF
8Ω
HF
45 W (IEC 8 hours, 2 kHz – 20 kHz)
HF
104 dB (2 kHz – 10 kHz)
