FMC SATA RAID board [AB09-FMCRAID]
Introduction
Thank you for choosing FMC SATA RAID board [Part Number: AB09-FMCRAID] ("RAID board" in this manual.)
The RAID board is compliant with FMC standard and provides 10 SATA channels at maximum by high speed serial
interface in HPC(High Pin Count)-FMC so that user can build SATA RAID prototype system.
The RAID board mounts 5 SATA interface at both of component and solder side of the board and can directly connect with
10 2.5"-SATA drive. User can supply power to the connected SATA drive via 4-pin ATX Standard power connector.
On-board 150MHz low-jitter differential oscillator will supply high-quality reference SATA clock to the refclk input of
FPGA.

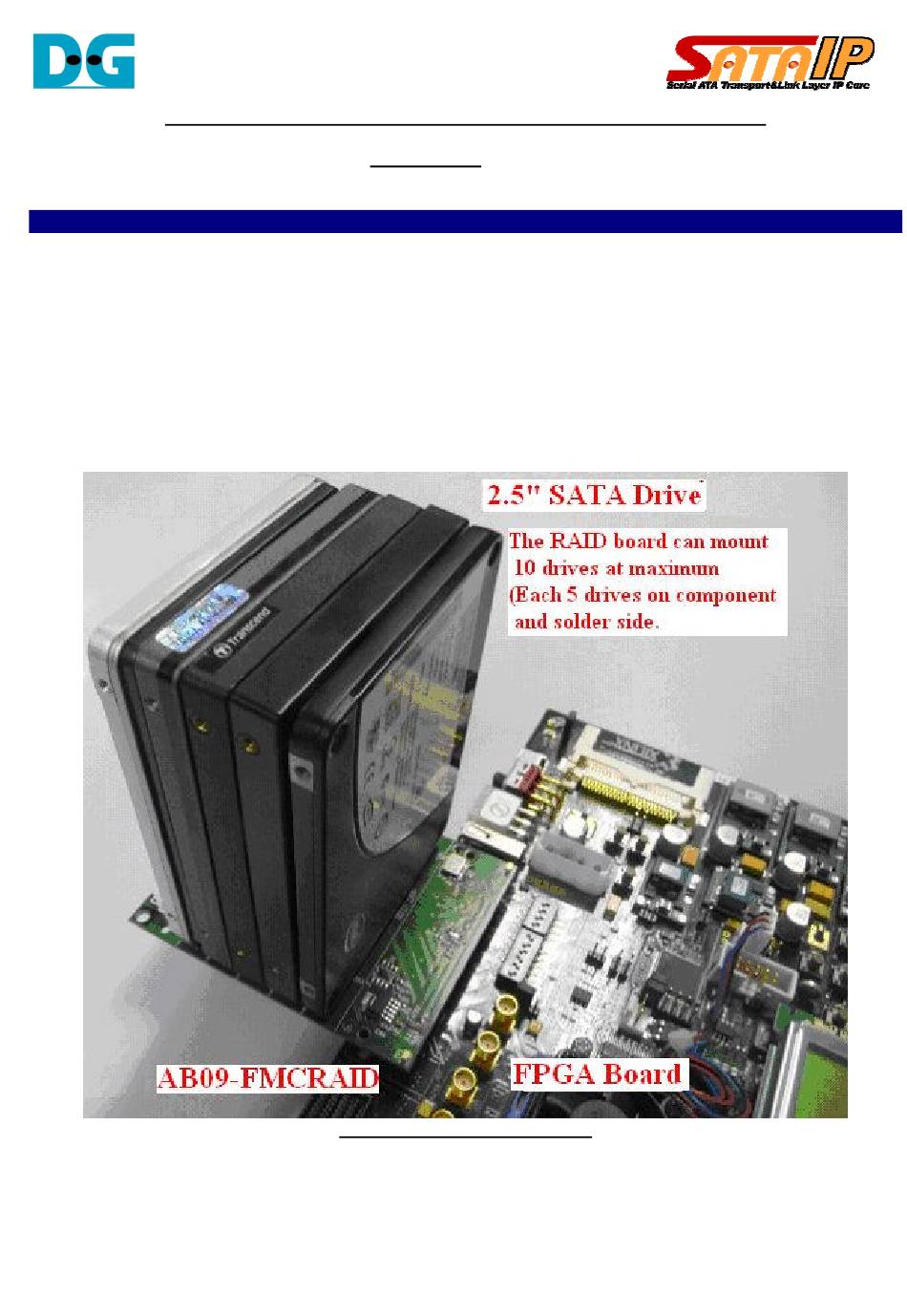

Following figure-1 shows the RAID board with 5 2.5"-SATA drives and connected FPGA board. (User can mount another
5 2.5"-SATA drives on the solder side of the RAID board so that the RAID board can support up to 10 SATA drives at
maximum.
Copyright©2011 Design Gateway Co,.Ltd. All rights reserved.
Manual
[Ver1.2E]
Figure-1: AB09-FMCRAID board

Advertisement

loading
Need help?

Need help?

Do you have a question about the AB09-FMCRAID and is the answer not in the manual?

Questions and answers

Summary of Contents for Design Gateway AB09-FMCRAID

  • Page 1 [Ver1.2E] Introduction Thank you for choosing FMC SATA RAID board [Part Number: AB09-FMCRAID] (“RAID board” in this manual.) The RAID board is compliant with FMC standard and provides 10 SATA channels at maximum by high speed serial interface in HPC(High Pin Count)-FMC so that user can build SATA RAID prototype system.
  • Page 2 Board Appearance The RAID board size is 69mm width and 87mm length. Following figure-2 and figure-3 shows component side and solder side appearance respectively. Figure-2: AB09-FMCRAID component side Figure-3: AB09-FMCRAID solder side Copyright©2011 Design Gateway Co,.Ltd. All rights reserved.
  • Page 3: Pin Assignment

    HT6N (TX Neg) DP6_M2C_N CN6-S5 HR6N (RX Neg) DP7_C2M_P CN7-S2 HT7P (TX Pos) DP7_M2C_P CN7-S6 HR7P (RX Pos) DP7_C2M_N CN7-S3 HT7N (TX Neg) DP7_M2C_N CN7-S5 HR7N (RX Neg) Table-1: HPC-FMC pin assignment of AB09-FMCRAID board Copyright©2011 Design Gateway Co,.Ltd. All rights reserved.
  • Page 4 2C_N X1-4 Negative Table-1: HPC-FMC pin assignment of AB09-FMCRAID board (cont’d) Note: There is no clock supply at GBT_CLK1_M2C_P/N (Pin# B20/B21 of FMC-HPC) from the RAID board. Differential Impedance Differential Impedance of SATA signal trace on the RAID board is controlled to 100ohm to keep signal quality. Following figure-4 shows TDR measurement result of CH#3 differential impedance of the RAID board.
  • Page 5: Revision History

    DesignGateway is exempted from any damage to the connected SATA device or FPGA board. DesignGateway does not guarantee transfer speed performance. [Inquiry] URL : http://www.design-gateway.com/ Email : mailto:sales@design-gateway.com Revision History Revision Date Description 1.2E 12-Jul-2012 Release English manual Copyright©2011 Design Gateway Co,.Ltd. All rights reserved.
  • Page 6 HT9N HT2P HT2N HT8P HT8N HT3P JTGTDIO IPL0 HT3N IPL1 HT7P HT7N HT4P HT4N HT6P HT6N HT5P HT5N Title AB09-FMCRAID FMC-HPC FMC-HPC FMC-HPC FMC-HPC FMC-HPC FMC-HPC FMC-HPC FMC-HPC FMC-HPC FMC-HPC Size Document Number AB09-FMCRAID Date: Tuesday, October 18, 2011 Sheet...
  • Page 7 Component side GND test pin HK-3-S HK-3-S HK-3-S HK-3-S CKS1P GBTCK1P OUTP 0.01u CKS1N GBTCK1N OUTN 0.01u DS4300D+ (omit) Solder side GND test pin LVDS 300MHz Oscillator clock source Title AB09-FMCRAID Size Document Number AB09-FMCRAID Date: Tuesday, October 18, 2011 Sheet...
