BARON
908
R9040060
R9040069
INSTALLATION MANUAL

Advertisement

Table of Contents
loading

Summary of Contents for Barco BARON 908

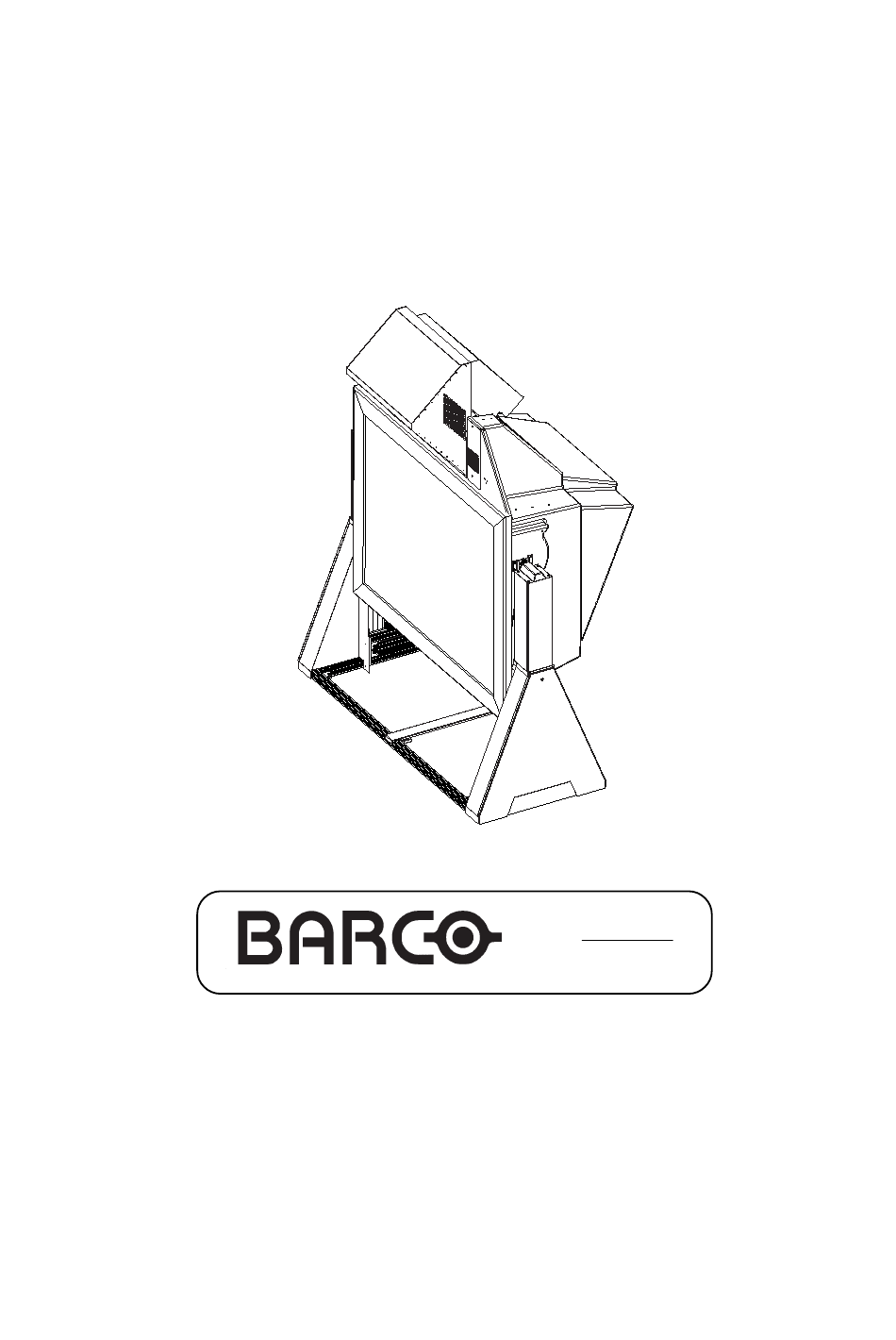

  • Page 1 BARON R9040060 R9040069 INSTALLATION MANUAL...
  • Page 3 BARCO PROJECTION SYSTEMS BARON R9040060 R9040069 INSTALLATION MANUAL Date : Rev. : Art. No. : 04122001 R5976418...
  • Page 4 All rights reserved. Trademarks are the rights of their respective owners. BARCO n.v. / Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
  • Page 5: Table Of Contents

    Table of contents TABLE OF CONTENTS SAFETY INSTRUCTIONS ....................1-1 Safety instructions ............................1-1 PACKING AND DIMENSIONS ................... 2-1 Unpacking ..............................2-1 INSTALLATION GUIDELINES ..................3-1 Installation guidelines ..........................3-1 Battery installation in the RCU ........................3-2 INSTALLATION SETUP ....................4-1 Mounting the projector ..........................
  • Page 6 Table of contents AC Power cords ............................5-1 Switching on the projector ........................... 5-2 AC Power ..............................5-2 SOURCE CONNECTIONS ....................6-1 Input locations ............................. 6-1 Composite video source to port 1 ........................ 6-2 S-Video or Video source to port 2 ....................... 6-2 RGB Analog source to port 3 ........................
  • Page 7 Table of contents GAMMA CORRECTIONS ....................A-1 Gamma corrections ............................. A-1 MOVING THE BARON THROUGH A DOORWAY ............B-1 Tilting the mirror cabinet in its vertical position .................... B-2 Removing the mirror frame ........................... B-2 Removing the control box ..........................B-2 INDEX ..........................
  • Page 8 Table of contents...
  • Page 9: Safety Instructions

    Installation instructions Before operating this equipment please read this manual thoroughly, and retain it for future reference. Installation and preliminary adjustments should be performed by qualified BARCO personnel or by authorized BARCO service dealers. Owner's record The part number and serial number are located at the back side of the projector. Record these numbers in the spaces provided below.
  • Page 10 6. Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the projector due to lightning and AC power-line surges. 1 - 2 5976418 BARON 908 04122001...
  • Page 11 DO NOT PLACE FLAMMABLE OR COMBUSTIBLE MATERIALS NEAR PROJECTOR ! BARCO large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.
  • Page 12 Where possible, care should also be taken to ensure that the floors and walls of the room in which the projector is to be installed are non-reflecting, dark surfaces. Brighter surfaces will tend to reflect and diffuse the ambient light and hence reduce the contrast of the projected image on the screen. 1 - 4 5976418 BARON 908 04122001...
  • Page 13: Packing And Dimensions

    1 Mirror cabinet + rotation pins 1 Screen assembly + fixation hand blots 1 Projector cover + bolts 1 Local controller 1 Remote control unit + 2 batteries (1.5V) 1 Owner's manual 1 Installation manual 2 - 1 5976418 BARON 908 04122001...
  • Page 14 (76.02 inch) 1240 mm (48.82 inch) 220 mm 764 mm 220 mm 519 mm 764 mm (30.08 inch) (8.35 inch) (20.43 inch) (30.08 inch) (8.35 inch) 1173 mm image 2.4 Right dimensions (46.18 inch) 2 - 2 5976418 BARON 908 04122001...
  • Page 15 Packing and dimensions 1580,2 mm (62.21) inch 679,2 mm (26.74 inch) 1888 mm 1888 mm (74.33 inch) (74.33 inch) image 2.5 Front dimensions 2 - 3 5976418 BARON 908 04122001...
  • Page 16 Packing and dimensions 2 - 4 5976418 BARON 908 04122001...
  • Page 17: Installation Guidelines

    Installation guidelines INSTALLATION GUIDELINES Installation guidelines Ambient temperature conditions Humidity conditions Environment Environment condition check clean air well Ambient light...
  • Page 18: Battery Installation In The Rcu

    Installation guidelines Battery installation in the RCU How are the batteries delivered ? How to install ? RCU Top image 3.1 RCU Battery installation...
  • Page 19: Installation Setup

    Hanging the projector into the mirror cabinet Attaching the projector with the rotation pins Attach the projector by turning the rotation pins (image 4.2). image 4.2 Attaching the projector with the rotation pins 4 - 1 5976418 BARON 908 04122001...
  • Page 20: Mounting The Screen

    On the backside of the screen is a hose, this will be connected to the hose inside the mirror cabinet (image 4.4). Put the screen assembly (With the Barco logo pointing away from the projector) on the mirror cabinet in a way you still can connect the hose (image 4.4).
  • Page 21: Mounting The Projector Cover

    To disassemble the baron repeat the procedures above in the reverse order. Screen protection When the Baron is not in use the screen can be protected by pulling down the screen cover (image 4.7). image 4.7 Protection screen 4 - 3 5976418 BARON 908 04122001...
  • Page 22: Mounting 3D Emitters

    3D emitter supports are mounted on both sides of the mirror cabinet (image 4.8). Put a piece of velcro on the supports and the bottomside of the 3D emitters (image 4.8). Attach the emitters to the supports (image 4.8). image 4.8 Mounting 3D emitters 4 - 4 5976418 BARON 908 04122001...
  • Page 23: Ac Power Connections

    CEE 7 Plug ANSI 73.11 Plug Green and yellow : Ground Green and yellow : Ground Blue : Neutral White : Neutral image 5.2 Brown : Line Black : Line Power cord plugs 5 - 1 5976418 BARON 908 04122001...
  • Page 24: Switching On The Projector

    1x F10A (Order number R314155) The following fuse is used inside the control unit (image 5.1): On a 230V Baron 908 (R9040060) = 230V Control Unit: 1x T1,25A (K314149) On a 120V Baron 908 (R9040069) = 120V Control Unit: 1x T2,5A (V3141589) For continued protection against fire hazard: replace with the same type of fuse and refer replacement to qualified service personnel.
  • Page 25 When this warm up message appears on the screen, handle as described in 'Start up in Operational Mode'. Stationary image warning Do not display a stationary image with full brightness and contrast for longer than 20 min., otherwise you risk to damage the CRT's. 5 - 3 5976418 BARON 908 04122001...
  • Page 26 AC Power connections 5 - 4 5976418 BARON 908 04122001...
  • Page 27: Source Connections

    5 Input signal : R-Y, Y and B-Y with separate tri level sync or with composite tri level sync. * Video or S-Video : switchable in the picture tuning menu. image 6.2 Input port, source type, RCU key table 6 - 1 5976418 BARON 908 04122001...
  • Page 28: Composite Video Source To Port 1

    Which Signals to port 2 ? Input as S-Video input : Separate Y-luma/C-chroma signals for higher quality playback of Super-VHS signals. Input as Video input : Composite video signals from a VCR, off air signal decoder, etc.. 6 - 2 5976418 BARON 908 04122001...
  • Page 29 Terminate the S-Video input of the projector using the 75 W switch next to the S-Video input, when the projector operates alone or when the projector is the last unit in loop-through configuration. The switch is set to 'On' : signal terminated The switch is set to 'Off' : signal not terminated. 6 - 3 5976418 BARON 908 04122001...
  • Page 30: Rgb Analog Source To Port 3

    Connect your RGB source with sync on green, composite or separate sync via an interface to Port 3. Always use an interface (e.g. Barco Magik Interface R9828120) when a computer and local monitor have to be connected to the projector as the signal cable coming from the computer is limited to 60 cm due to interferences.
  • Page 31 Leaving the switch in the ON position will result in abnormal color balance of the projected image. Force negative sync switch Switch in the ON position the sync pulses must be negative. Switch in the OFF position the sync polarity will be automatically detected. 6 - 5 5976418 BARON 908 04122001...
  • Page 32: Rgb Analog Source With Composite Sync To Port 4/5

    Always use an interface (e.g. Barco Magik Interface 9828120) when a computer and local monitor have to be connected to the projector as the signal cable coming from the computer is limited to 60 cm due to interferences.
  • Page 33: Rs232 Connection

    The selected source number will be displayed on a 2 digit display and the selected input modules will be indicated with a LED on the rear. RCVDS 05 switcher Port on projector (R9827880) 800 periphals COMM. PORT image 2.11 Communication port 6 - 7 5976418 BARON 908 04122001...
  • Page 34 Source connections 6 - 8 5976418 BARON 908 04122001...
  • Page 35: Tilting The Projection Table

    Tilting the projection table TILTING THE PROJECTION TABLE Tilting connections Connecting the tilting sensors Projector 800 periphals COMM. PORT PORT 3 POWER MAINS REMOTE RS 232 OUT RS 232 IN 5 pins to SUB D9 projector to projector 8 pins to control unit Control box Control unit...
  • Page 36: Tilting The Projection Table

    Tilting the projection table Connecting the local controller Projector 800 periphals COMM. PORT PORT 3 POWER MAINS Local controller RS 232 OUT REMOTE RS 232 IN 8 pins to projector image 7.2 Local controller connection Tilting the projection table Safety zones 2090 mm (82.28) inch image 7.3...
  • Page 37 Tilting the projection table Tilting the projection table menu 1 image 7.4 Tilting the projection table...
  • Page 38 Tilting the projection table Calibrating the Baron ENTER ENTER ADJUSTMENT MODE Select a path from below : RANDOM ACCESS INSTALLATION SERVICE Source 01 Select with é or ê then <ENTER> <EXIT> to return. menu 1 image 7.5 Calibrating the Baron...
  • Page 39: Messages, Warnings And Failures

    : 7FH3 is switched off. WARNING : FAILURE When a wrong key is pressed on Hardware failure. Call a qualified short the RCU. invalid service technician for repair. circuit on key entry I2C bus 8 - 1 5976418 BARON 908 04122001...
  • Page 40 Input not valid invalid input FAILURE Error in the communication between the projector and the PC. PC communica- tion error FAN FAILED Projector switched off due to a fan fail. Projector will switch off 8 - 2 5976418 BARON 908 04122001...
  • Page 41: Gamma Corrections

    Gamma corrections GAMMA CORRECTIONS Gamma corrections Gamma warning ENTER Procedure for gamma corrections To carry out the Blue Gamma Correction: é ê ENTER EXIT ENTER é ê ç è ENTER WARNING GAMMA CORRECTIONS RISK OF INCORRECT ADJUSTMENT OF THE BLUE GAMMA CORRECTION PROJECTOR.
  • Page 42 Gamma corrections To carry out the red and blue midlights correction: é ê ENTER EXIT ENTER é ê ç è ENTER GAMMA CORRECTIONS BLUE GAMMA CORRECTION Adjust slope with é or ê Breakpoint with ç or è R&B MIDLIGHTS HTS Adjust red with é...
  • Page 43: Moving The Baron Through A Doorway

    Use the keys on the local controller to tilt the mirror cabinet in a vertical position (image B.2). Unplug the power cord from the wall outlet. image B.2 Tilting the projection table with the local controler B - 1 5976418 BARON 908 04122001...
  • Page 44: Removing The Mirror Frame

    Warning: Be sure to respect the color labels when reconnecting the cables to the control unit, mechanical damage may occur when connecting cables with different color labels. Tilt the mirror cabinet back in its initial horizontal position. B - 2 5976418 BARON 908 04122001...
  • Page 45 Form Approved MATERIAL SAFETY DATA SHEET Bureau Budget No. 45-R0338 MANUFACTURER'S NAME AND FSCM (Federal Supply Code for Manufacturer's) EMERGENCY PHONE NO. BARCO N.V. 32-56-368211 ADDRESS (Number, Street, City, State, and ZIP Code) Noordlaan 5 B-8520 KUURNE CHEMICAL NAME AND SYNONYMS TRADE NAME AND SYNONYMS Ethylenglycol &...
  • Page 46 TRESHOLD LIMIT VALUE 100ppm EFFECTS OF OVEREXPOSURE EMERGENCY AND FIRST AID PROCEDURES CONDITIONS TO AVOID STABILITY UNSTABLE STABLE INCOMPATABILITY (Materials to avoid) HAZARDOUS DECOMPOSITION PRODUCTS CONDITIONS TO AVOID OCCUR HAZARDOUS POLYMERIZATION WILL NOT OCCUR STEPS TO BE TAKEN IN CASE MATERIAL IS RELEASED OR SPILLED Rinse with water WASTE DISPOSAL METHOD RESPIRATORY PROTECTION (Specific type)
  • Page 47 Tilting sensors 7-1 Tilting the projection table 7-2, 7-3 Input facilities 6-1 Installation guidelines 3-1 Unpacking 2-1 Local controller 7-2 Warnings 8-1 Which source to which input 6-1 Messages, warnings and failures 8-1 i - 1 5976418 BARON 908 04122001...
  • Page 48: Index

    Index i - 2 5976418 BARON 908 04122001...
