Summary of Contents for Inrico TM-9

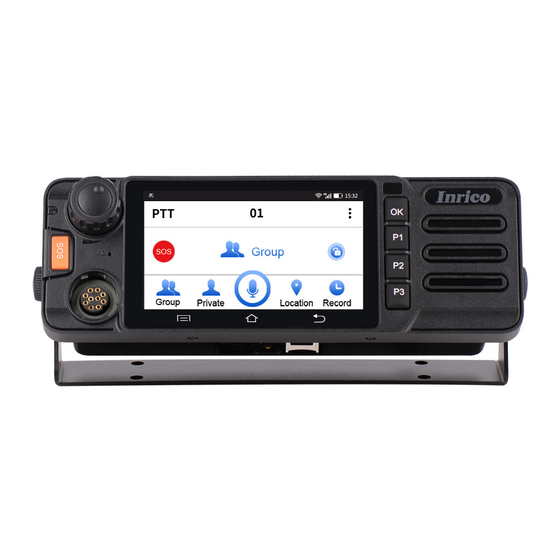

- Page 1 MOBILE PoC RADIO TM-9 USER GUIDE Please read this instruction book carefully before using. www.inricosolutions.com...
-
Page 2: Table Of Contents
However, no responsibility is assumed for inaccuracies. Furthermore, Inrico reserves the right to make changes to any products herein to improve readability, function, or design. Inrico does not assume any liability arising out of the applications or use of any product or circuit described herein;... - Page 3 Unpacking and Device Checking Please unbox and take out the device and all accessories carefully, and ensure all lists have been gotten before discarding the cardboard box. If any items are lost or damaged in transit, please contact with our distributors. Name Quantity Mobile Radio...
-
Page 4: Handling Precautions
Handling Precautions Please read the following content carefully. It is very important for device users to gain general knowledge and risks. Operating Voltage Please use within the specified voltage range (12V or 24V). Normal Range Normal Range Car Type Abnormal Before Starting During Working <11.9V or >14.8V... -
Page 5: Product Overview
may cause fire, explosion or other hazards. Please approved accessories only. It will violate the warranty clause if using other ⚫ unproved accessories and causing accidental damage. Maintenance Before cleaning and maintaining the device: please stop running, turn off, and disconnect ⚫... -
Page 6: Accessories Installation
Confirm button P1 Programmable Button P2 Programmable Button P3 Programmable Button LCD Screen 4''OLED, 360*640*RGE Menu Button Home Button Return/Exit Return to previous function list or exit GPS Antenna Connector GSM Antenna Connector Aviation Power Connector Connecting audio input equipment to transmit analog 3.5mm Audio Connector audio signals and amplifiers dual channel stereo signals... -
Page 7: Basic Functions
4. Attaching the Antennas- GPS Antenna/ GSM Antenna Rotate clockwise until it is tightened, paying attention to the corresponding direction. 5. Attaching the Palm Microphone Basic Functions 1. Powering Up the Device Make sure that the power connector is plugged in properly. Rotate the Power/Volume Knob to power up, 2. - Page 8 4. Setting Set and view related system functions and status. Wireless & Networks: WIFI, Bluetooth, SIM card data usage and more. Device: Display, Notifications, Sound, Apps, Storage, Memory. Personal: Location, Security, Accounts, Google, Language, Backup & Reset. System: Date & Time, Printing, About phone (click the”Build number”continuously to open the developer option).
- Page 9 16. USB Data Cable and DB25 Connector When insert USB data cable, the DB25 will be shielded and unavailable Status Indicators The indicators could be customized according to the APP. The following is the default indicator status of Inrico APP. LED Indicator Working Status Remark The device is transmitting.
- Page 10 ③Receive Message 3. Volume Adjustment The radio volume can be adjusted by volume knob. 4. Emergency Operation Press SOS button for 2 seconds to alarm automatically (Defined via APP). 5. Exit Press return button to exit and be back to the main interface. Network Connecting 1.
- Page 11 password to connect. 2. Cellular Network Connecting Open “Settings”, tap on ‘SIM Cards’, select the one that you need to connect.
- Page 12 3. Stop Running Non-systematic APP Select “Settings” → Apps → Confirm the APP required→ FORCE STOP...
-
Page 13: Basic Troubleshooting
Basic Troubleshooting If your device shows following problem during operating, please check the instruction as below. If problems can’t be solved, please contact local authorized service. Problems Solutions Too much APPS on processing. Terminal Crash - Force some programs to quit or restart the terminal. The buttons may not work temporarily, restart the terminal. -
Page 14: Specification
The SIM card may be not working due to dirt or damage. - Clean the electrical contact or replace it. The SIM card cannot work properly or cannot be used. - Make sure the SIM card has a balance instead of arrears. The mobile network not available. - Page 15 Working Temperature -20°C ~ 60°C Storage Temperature -40°C ~ 70°C...
