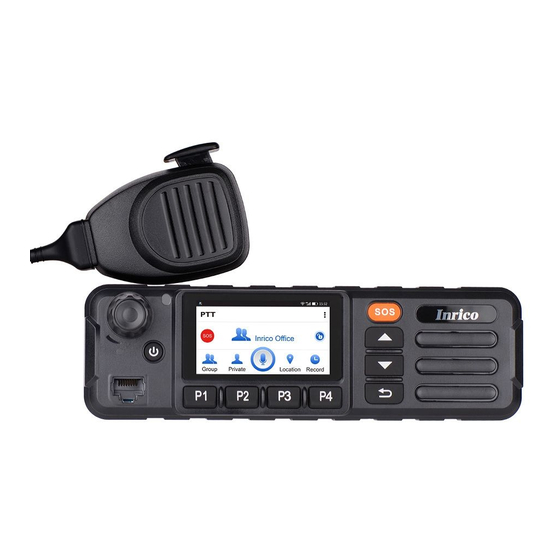

- Page 1 MOBILE PoC RADIO TM-7Plus USER GUIDE Please read this instruction book carefully before using. www.inricosolutions.com...
-
Page 2: Table Of Contents
Inrico reserves the right to make changes to any products herein to improve readability, function, or design. Inrico does not assume any liability arising out of the applications or use of any product or circuit described herein; nor does it cover any license under its patent rights, nor the rights of others. - Page 3 Unpacking and Device Checking Please unbox and take out the device and all accessories carefully, and ensure all lists have been gotten before discarding the cardboard box. If any items are lost or damaged in transit, please contact with our distributors.
-
Page 4: Handling Precautions
Handling Precautions Please read the following content carefully. It is very important for device users to gain general knowledge and risks. Operating Voltage Please use within the specified voltage range (12V-24V). Flammable and Explosive Area Do not operate the product in a location containing fuels, chemicals, explosive atmospheres and other flammable or explosive materials. -
Page 5: Product Overview
Please keep the equipment and accessories dry. ⚫ Please do not use the microwave oven or hair dryer or other heating devices for dry them. ⚫ Product Overview Rotate the Volume Control Knob clockwise or Volume Knob counterclockwise, press to confirm. LED Indicator LCD Display LOGO... -
Page 6: Accessories Installation
SIM Card Slot Power Button Press to power on/off Accessories Installation 1. Insert SIM Card Insert SIM card to the the SIM card slot, close the cover and tighten the screws. 2. Attaching the Bracket Rotate clockwise and tighten it. ⚫... -
Page 7: Basic Functions
5. Attaching the Palm Microphone Basic Functions 1. Powering Up and Powering Off the Device Make sure that the power connector is plugged in properly. Power on: Press and hold the power button until the display lighting up. Auto Power On/0ff Button: press to turn on or power off. 2. -
Page 8: Led Indicators
Warning: Restoring the phone to initial factory state, which means clearing the system, application data and settings, and downloaded applications. Status Indicators The indicators could be customized according to the APP. The following is the default indicator status of Inrico APP. LED Indicator Working Status Remark The device is transmitting. - Page 9 ②Release PTT to end the call ③Receive Message 3. Volume Adjustment The radio volume can be adjusted by volume knob or the sliding volume bar. 4. Emergency Operation Press SOS button for 2 seconds to alarm automatically (Defined via APP).
-
Page 10: Network Connecting
5. Programmable Buttons P1/ P2/ P3/ P4 button can be defined as quick contact or group by users. 6. Exit Press return button to exit and be back to the main interface. Network Connecting 1. WIFI Connecting Turn on the device, click “Settings ” → WIFI. Select the wireless network and enter the password to connect. -
Page 11: Cellular Network Connecting
2. Cellular Network Connecting Open “Settings”, tap on ‘SIM Cards’, select the one that you need to connect. -
Page 12: Stop Running Non-Systematic App
3. Stop Running Non-systematic APP Select “Settings” → Apps → Confirm the APP required→ FORCE STOP... -
Page 13: Basic Troubleshooting
Basic Troubleshooting If your device shows following problem during operating, please check the instruction as below. If problems can’t be solved, please contact local authorized service. Problems Solutions Too much APPS on processing. Terminal Crash - Force some programs to quit or restart the terminal. The buttons may not work temporarily, restart the terminal. -
Page 14: Specification
The battery life becomes shorter in high temperature environment. - Replace a new qualified battery. Shorter Standby Time Power consumption increased in areas with weak signal. - Please temporarily turn off the device. The SIM card cannot work properly or cannot be used. - Make sure the SIM card has a balance instead of arrears.
