Customer Service
1-800-645-2986
It is the responsibility of the assembler/user to completely read and understand all instructions and safety information
before proceeding with assembly. Following these instructions will ensure proper function and safety.
• Do not put hands on scissor supports.
• Conveyor is very heavy. Assembly requires more
than two people to prevent injury.
• Clean the conveyor regularly to maintain the lifespan.
globalindustrial.com

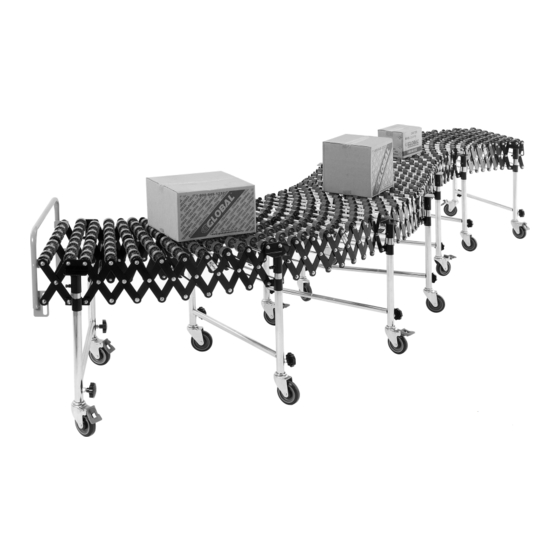

Portable Flexible
& Expandable Conveyor
SAFETY INFORMATION
DANGER
CAUTION
Model 168110 18" x 7.2'-22.6' Nylon Wheel
Model 168111 24" x 7.2'-22.6' Nylon Wheel
Model 168112 18" x 7.2'-22.6' Steel Wheel
Model 168113 24" x 7.2'-22.6' Steel Wheel
WARNING
• Do not overload. Maximum capacity: 175 lb per foot.
• Keep the casters breaks down while in use.
• Do not stand up on top of the unit.
• Conveyor is not a toy. Not for use by children.
• This product contains chemicals which are known by
the state of California to cause cancer, birth defects
or other reproductive harm.
1
Instruction
Manual
Advertisement
Table of Contents
Related Manuals for Global Industrial 168110
Summary of Contents for Global Industrial 168110
- Page 1 1-800-645-2986 globalindustrial.com Portable Flexible & Expandable Conveyor Model 168110 18" x 7.2'-22.6' Nylon Wheel Model 168111 24" x 7.2'-22.6' Nylon Wheel Model 168112 18" x 7.2'-22.6' Steel Wheel Model 168113 24" x 7.2'-22.6' Steel Wheel It is the responsibility of the assembler/user to completely read and understand all instructions and safety information before proceeding with assembly.
- Page 2 Instruction Manual & Expandable Conveyor SPECIFICATIONS Wheel Effective Overall Retracted Extended Lowest Highest Load Cap. Model Material Width in. Width in. Length ft. Length ft. Height in. Height in. lb./ft. 168110 Nylon 23.6 22.6 27.6 39.4 168111 Nylon 29.5 22.6 27.6 39.4...
- Page 3 Portable Flexible 1-800-645-2986 Instruction Manual & Expandable Conveyor CAUTION Conveyor is very heavy. Assembly requires more than two people to prevent injury. Lay conveyor body (1) upside down on a level surface. Loosen all set screws with hex key (H1) provided. Threaded Boss Insert leg supports (2) into sockets making sure...
- Page 4 Portable Flexible 1-800-645-2986 Instruction Manual & Expandable Conveyor Retighten all set screws with hex key (H1) provided. With Without Brake Brake Insert caster leg assemblies (3 & 4) into leg supports.
- Page 5 Portable Flexible 1-800-645-2986 Instruction Manual & Expandable Conveyor Insert and tighten all knobs (H2) into caster posts. H4 H5 To install box stop loosen and remove hex nuts (H5), washers (H4) and axle rod (6).
- Page 6 Portable Flexible 1-800-645-2986 Instruction Manual & Expandable Conveyor Attach box stop handle (5) to end of conveyor. Insert axle rod (6). Replace washers (H4) and retighten nuts (H5) with box wrench provided (H3). STEP 1 STEP 2 STEP 3 H5 H4 To use the handle (5) as a box stop, lift the horizontal bar and hook it to the top rod.
