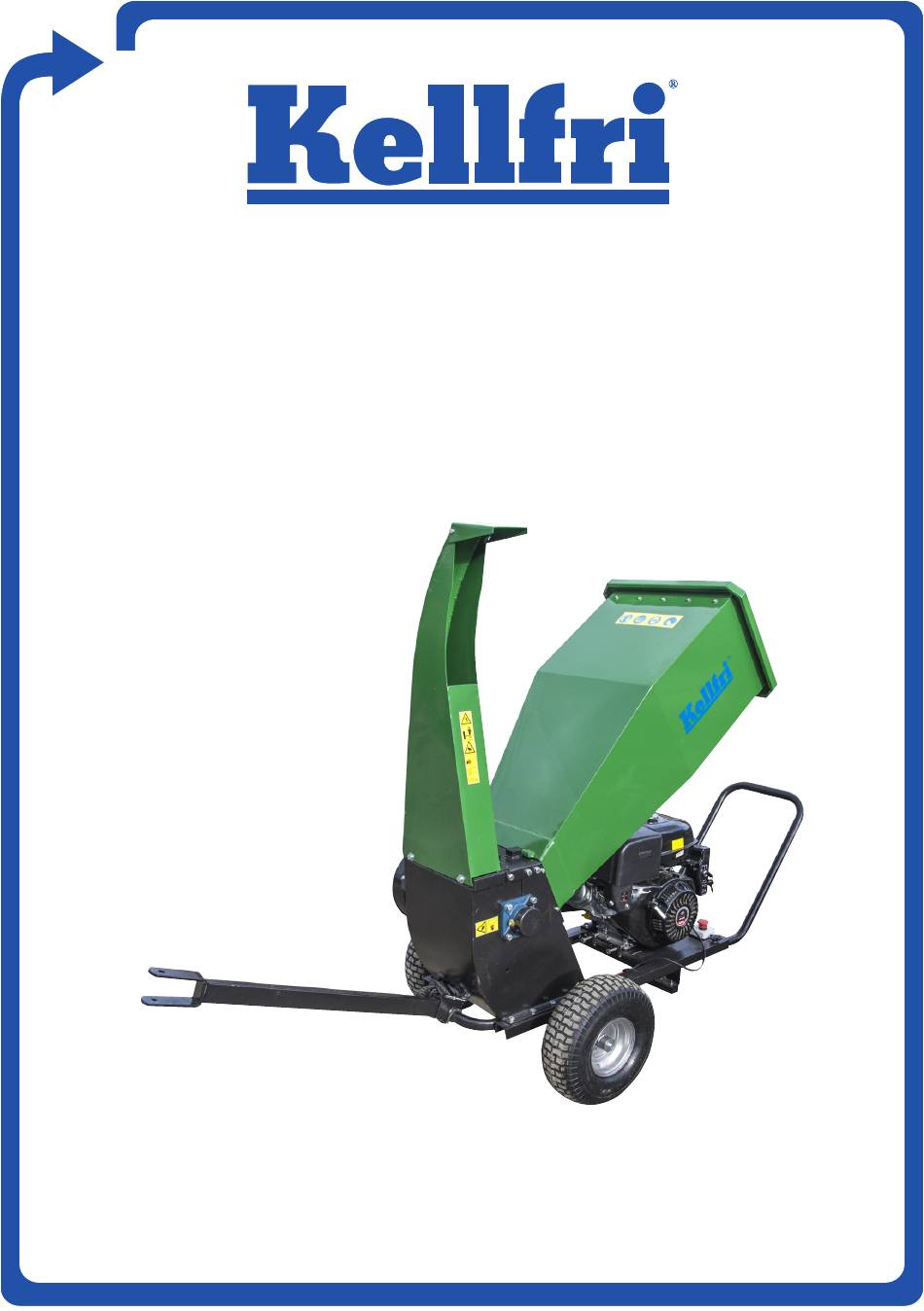

- Page 1 13-WC08E WOOD CHIPPER READ THIS MANUAL CAREFULLY BEFORE USING THE PRODUCT! TRANSLATED FROM THE ORIGINAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product information ..................Safety Information (General) ..............Product Safety information ..............Warning labels ....................Incase of emmergencies ..............Personal protective equipment ..............Surroundings ......................Before use ............................................9 Chipping ..........................Maintenance / Service ....................11 Troubleshooting ...................... -
Page 3: Product Information
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following general safety information, operating instructions and common sense, you will have many years of enjoyable use of the product. Kellfris equipment and products are aimed to be use by active farmers with high demands on functionality. -
Page 4: Safety Information (General)
Kellfri AB, Munkatorpsgatan 6, 532 37 SKARA. Tel: 0511-242 50 The general safety instructions can be downloaded from Kellfris website: www.kellfri.co.uk Do not use the equipment or product if you feel sick, tired or under the influence of alcohol. -
Page 5: Product Safety Information
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE MACHINE! LEARN AND REMEMBER THE CORRECT USE AND SHUTDOWN OF THE MACHINE PRODUCT SAFETY INFORMATION • Exhaust fumes contain poisonous substances, so use the machine in bad ventilated areas. Not for indoor use. Always fill up the machine with gasoline outdoors. •... -
Page 6: Warning Labels
WARNING LABELS Make sure that the warning labels are always visible, clean the warning labels if necessary. Do not wash with high pressure washer directly on the warning label. If any part of the decal is worn or label becomes frayed or otherwise unreadable, order new decals. Use protective equipment! Warning for ejection! Risk zone 15m... -
Page 7: Incase Of Emmergencies
INCASE OF EMERGENCIES In case of an emergency please dial 999. Keep cell phone or emergency phone available specially when working alone. First aid kit and fire extinguishers must be kept easily accesable during all work, maintenance and service. In case of emergency, press the emergency stop: the red button next to the engine. PERSONAL PROTECTIVE EQUIPMENT Wear suitable clothing and footwear. -
Page 8: Before Use
BEFORE USE Read the safety information and operating instructions carefully. Be sure that you understand the safety information, operating instructions and warning labels. Use common sense when using the machine and use appropriate personal protective equipment. Always check the performance and the machine combination that are use. It’s highly impor- tant these matches in a satisfactory manner. -
Page 9: Use
Only people who understand the safety information and instructions in this manual may op- erate the equipment. Be alert and careful when working with the machine and only use the tool or product in the manner described in this manual. When working with equipment that has moving parts, there is always the risk of injury. -
Page 10: Chipping
TURNING OFF THE MACHINE CORRECTLY: 1. Set the throttle at the lowest speed. 2. Set the ignition switch to OFF. 3. Turn the fuel valve to OFF. CHIPPING • Get familiar with the chipper without starting it. • It is important that the chipper is stable during the work. •... -
Page 11: Maintenance / Service
Never use dirty oil / fuel, this can lead to serious damage to the engine. • Check the engine air filter regularly, clean or replace as required. For spare parts: Contact Kellfri Service Department REPLACING OIL When changing oil, be sure to use an approved container for the used oil. Old oil must be disposed of properly recycling center. -
Page 12: Troubleshooting
TROUBLESHOOTING CAUSE MEASURE The chipper does not • The knives are worn • Check knives, sharpen and replace if necessary work properly: the • Input oversize branch • Turn off the machine and remove the non-fitting rotor does not pull in the •... -
Page 13: Maintenance Engine
MAINTENANCE MEASURE EVERY DAY After 8h After 20h or at the first After the 3rd month of operation month or 150h Control and nuts and bolts Checking and refilling gear oil Cleaning and changing gear oil Check leakage Cleaning the machine MAINTENANCE DETAIL MEASURE... -
Page 14: Knife: Replacing Oil/Grinding
KNIFE Always check the condition of the knives, knife fixing screws and nuts. It is important to always have sharp knives, sharp knives provide better chipping quality. Sharpening or change knife (mounted on the cutting rotor) Switch off the engine, unplug the spark plug and make sure that the wood chip rotor is stationary before performing anything on the machine. -
Page 15: Tightening Torque Metric Bolts
TIGHTENING TORQUE - METRIC BOLTS 10.9 12.9 BOLT SPECIFICATION DIAMETER X PITCH 6 x 1 10.4 13.8 15.3 16.1 17.9 8 x 1 14.5 12.2 18.0 18.9 10 x 1.25 15.8 28.0 19.5 10 x 1.5 14.5 26.6 12 x 1.25 23.8 12 x 1.75 21.3... - Page 16 CHECK THAT ALL PARTS ARE INCLUDED dustseal lock pin flat washer Ø20 wheel bushing Ø11x87,5 Hex Head Bolt large flat washer flat washer Ø8 Nylock nut M10 Hex Head Bolt M6x16 Ø8 M8x25 lock washer Ø 8 pin Ø11x83 R-pin Hex Head Bolt Nut M6 M8x20...
-
Page 17: Installation Instructions
INSTALLATION INSTRUCTIONS hopper- 1 wheels - 2 Chopper with the engine - 1 drawbar - 1 Wheel axle - 1 ejector chute- 1 handle - 1 Mounting bracket for handle- 2... - Page 18 INSTALLATION INSTRUCTIONS STEP 1: Mount the wheels (# 30) on the chipper Fit the wheel axle (# 29) - Observe the wheel axle position. Fit the wheels in the correct direction as shown: Wheel axle (# 29) - Wheel bushing (# 32) - Washer Ø20 (# 31) - Wheels (# 30) - Dust Seal (# 21) - Locking washer Ø8 (# 54) - hexagonal bolt M8x25 (# 53) Wheel axle position...
- Page 19 INSTALLATION INSTRUCTIONS STEP 2: Fit the feed hopper (# 4) to the wood chipper (# 3), secure with large washer (# 40), locking washer (# 54) and hexagonal bolt M18x20 (# 75). Then mount the ejector chute (# 2) as shown: Secure with large washer (# 40), locking washer (# 54) and hexagonal bolt M18x20 (# 75).
- Page 20 INSTALLATION INSTRUCTIONS STEP 3: Fit handle bracket (# 86) to frame (# 22), secure with hexagonal bolt M10x50 (# 87), flat washer Ø10 (# 49) and nylock nut M10). Fit the handle (# 28) into the handle bracket (# 86) secured with bolt M10x45 (# 85), Ø10 washer (# 49) and nylock nut M10 (# 50).
- Page 21 INSTALLATION INSTRUCTIONS STEP 5: Before using the wood chipper, pull out the locking pin (# 26) and fold out the handle (# 28), then reinstall the locking pins.
- Page 23 Designation Qty. Designation Qty. Screen Hex Bolt M6x16 Chute Flat washer Ø6 Plate protection - rotor Nylock nut M6 Hopper Large flat washer Ø6 Rubber cloth holder Six edge bell M8x16 Protection - Rubber cloth Large flat washer Ø8 Cut Knife Hex Bolt M10x16 Rotor Locking washer Ø10...
- Page 25 Designation Qty. Flat washer Ø4 Nylock nut M4 Hex Bolt M10x20 Rivet Locking washer Ø6 Screw M6x16 Hex Bolt M8x20 Hex Bolt M8x12 Engine mount Flat washer Ø12 Axial ball bearings - one direction Cane Print Locking knob Hex Bolt M8x35 Suspension Mutter M6 Bump M10x45...
- Page 26 NOTES:...
-
Page 27: Complaint Form
Complaint form We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine. -
Page 28: Warranty Terms And Ec Declaration Of Conformity
Other equipment must meet the hardware requirements of the Directive. Tina Baudtler, CMO 20170719 Kellfri AB is constantly working on further developing their products and therefore re- servesthe right to modify, among other things the design and appearance without no- tice.
