Summary of Contents for Transforming Technologies IN1202-22

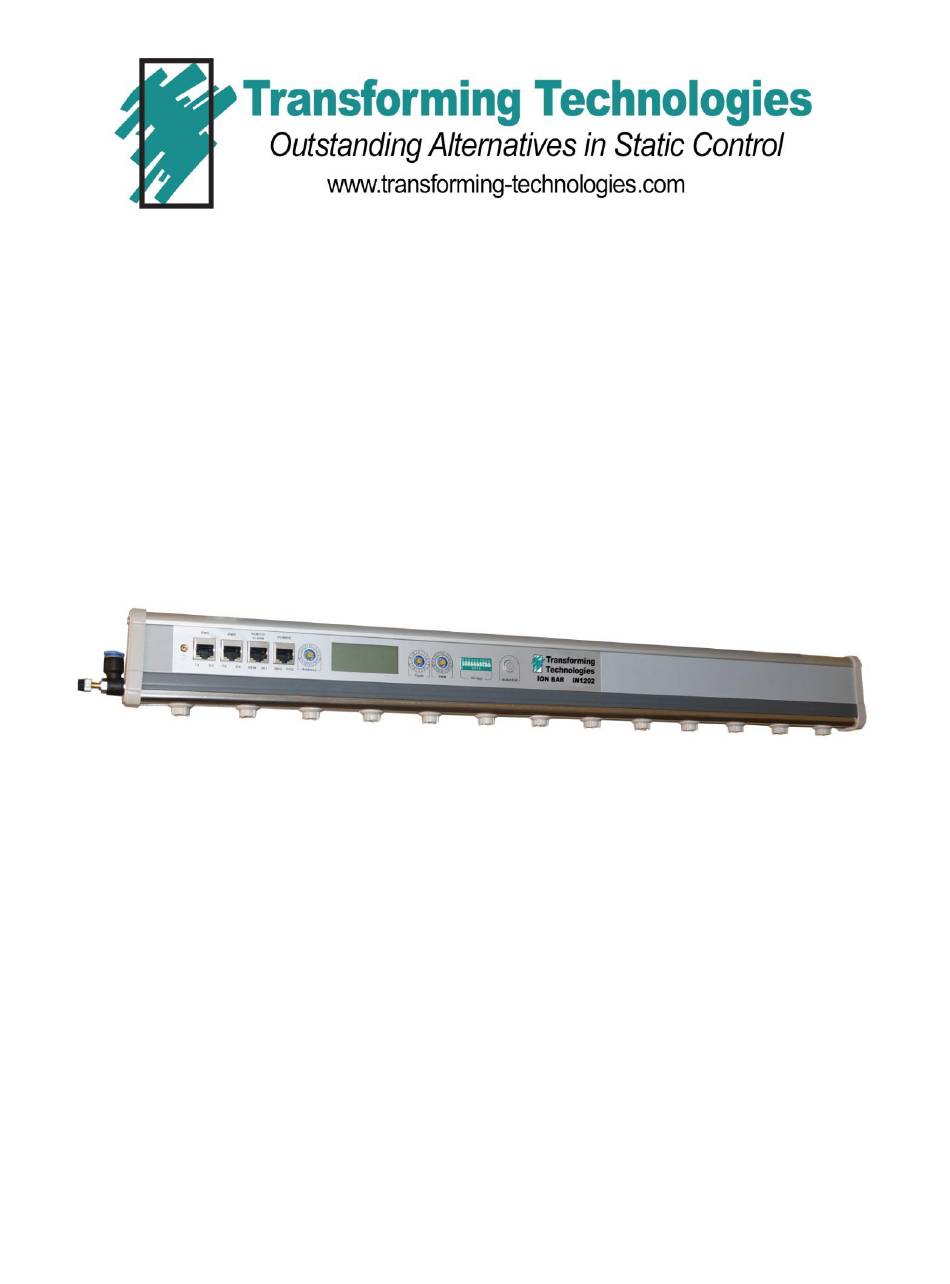

- Page 1 IN1202 Ionizing Bar Operation Manual Transforming Technologies 3719 King Road Toledo Ohio 43617 www.transforming-technologies.com...
- Page 2 2. Patented ionizing technology 3. Easy to read LED readout for easy use and maintenance 4. Easily adjust the output voltage 5. Fast decay times with excellent ion balance Specifications Model IN1202-22, IN1202-44, IN1202-64 Output voltage DC±4,±4.25,±4.5,±4.75,±5,±5.25,±5.5,±5.75,±6,±6.25(KV) Output frequency 0.1，0.3，1，3，5，8，10，20，30，50(Hz) Duty factor...
- Page 3 PC via the RMS port on the control panel. Two or more ion bars can be connected in series through the secondary RMS port. At this time, the networking feature is not supported but will be available soon. Contact Transforming Technologies for more information on this feature. Caution Changes to the output parameters VPP, Frequency and Duty ration can only be done with power switch is in "STOP"...
- Page 4 Figure 1. Ion Bar Appearance (1) earth connection (2) communication port 1 (3) communication port 2 (4) remote control port (5) power input port (6) network address encoder (7) LED display (8) frequency encoding switch (9) duty factor encoding switch (10) HV output toggle switch (11) power switch (12) product name (13) product model (1) earth connection (2) communication port 1 (3) communication port 2 (4) remote control port (5) power input port (6) network address encoder (7) LED display (8) frequency encoding switch (9) duty factor...
- Page 5 3. Clean the electrode tip, discharge pad and metal discharge body with alcohol and a clean cloth. 4. Do not power on the ion bar until the components are completely dry. If the POS/NEG indication stays off, please contact Transforming Technologies for technical support.
