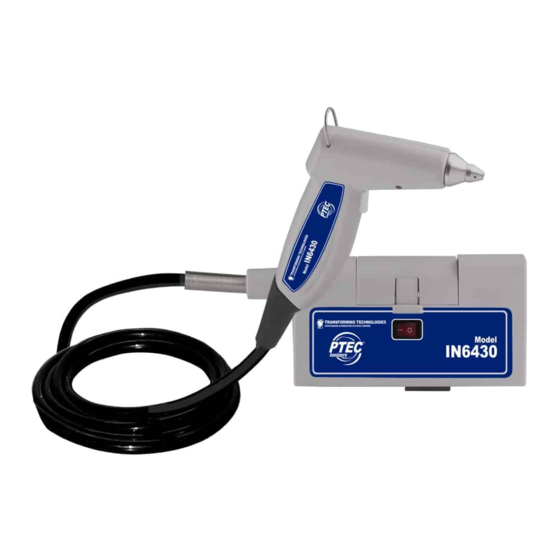

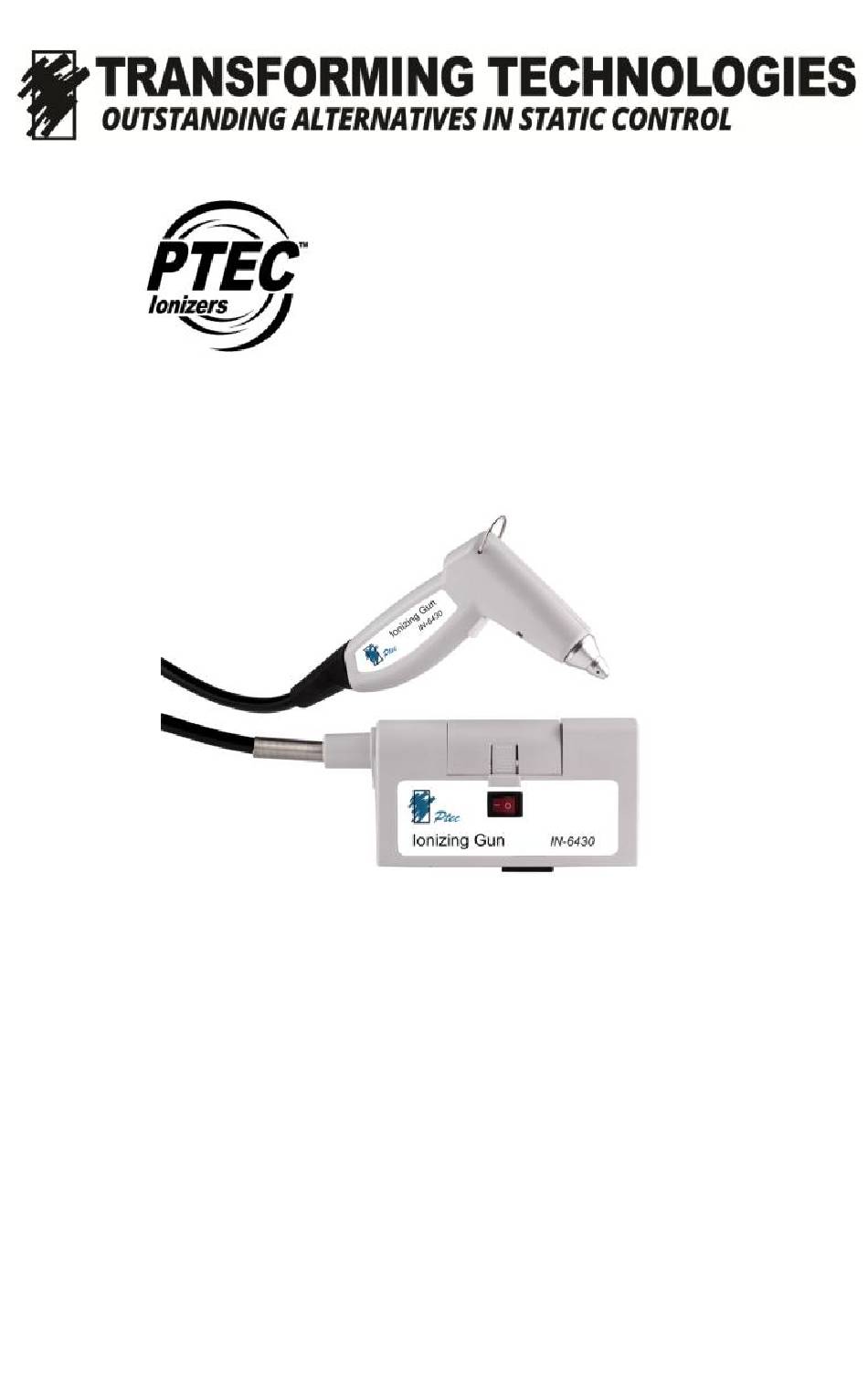

- Page 1 Static Eliminators Ionizing Air Gun Model IN6430 Model IN6430 Instruction Manual...
-
Page 2: Table Of Contents
Contents Description IN6430 Features Power Requirements Operation and Use Environmental Conditions Set-up and Placement Mounting Power and Gas Connection Maintenance Periodic Maintenance Cleaning Emitter Points Emitter Point Replacement Service Troubleshooting Specifications Assembly and Mounting Instructions Service and Warranty IN6430 Line Drawing... -
Page 3: In6430
Description Ionizing Air Gun Model IN6430 The Model IN6430 68KHz AC ionizing air gun effec- tively removes particle contamination, even on static sen- sitive components The IN6430 easily connects to a com- pressed air source and is compact and lightweight. Using AC corona technology to make the air more conductive, Ptec™... -
Page 4: Power Requirements
Features cont’d. Complete point-of-use protection. Rapidly decays static charges. (+1000V to 100V, < 2 sec. @ 6”, typical). Excellent ion balance, 0 +30V. Stable AC technology. Ionization indicator light. HV alarm (red) lights. No periodic adjustments. -
Page 5: Mounting
Mounting No equipment or tools are necessary, except for permanent mounting and air line. A permanent mounting bracket, with screws for the controller, is included. See mounting instructions. Do not use this ionizer in an explosive environ- Caution ment! Corona ionizers produce a weak plasma that can cause ignition in explosive environ- ments. -
Page 6: Periodic Maintenance
continuous stream of positive and negative air ions when activated. The ionized airflow is directed through the nozzle tip which feature OSHA relief holes. Charged objects in the ionization area are rapidly neutralized . A green light will illuminates to signal the IN6430 is operating. -
Page 7: Emitter Point Replacement
6. Make sure the emitter points are dry before powering the ionizer again. Emitter Point Replacement The IN6430 uses tungsten alloy precision etched emit- ter needles. Contact Transforming Technologies for infor- mation about ordering replacement emitters. The part num- ber for emitters is listed below: Replacement part... -
Page 8: Service
Ptec™ ionizers are reliable products with a long ser- vice life. If you feel your unit is not operating properly, turn off the unit and disconnect the power cord. Contact Transforming Technologies’ Technical Support for repair assistance. Troubleshooting The information below provides a reference for prob- lems that may arise with your IN6430 ionizing air nozzle. -
Page 9: Specifications
Problem Causes Balance outside Emitter points are dirty, damaged specifications. or not straight. Clean or replace Alarm light activated Low HV output, call for repair Specifications Power Input AC 100V~240V, 50/60Hz Power Outlet un-fused, 0.5A or 1.0A max. Ion Emission AC, 68KHz Balance... - Page 10 Assembly 1. Overview: The IN6430 can be used with or without a filter at- tachment. The product comes standard without the filter assembly and uses the filter bypass unit (FA100) to connect the gun to the console. The filter (FL0030) and filter assembly (FA200) are used together when the filter is required and is purchased separately.
- Page 11 Assembly Cont. Washers Figure 5. Filter Assembly Finished Figure 4. Filter Assembly 5. Connect gun hose to base console. Insert hose until the filter bypass unit (FA100) or the filter assembly (FA200) locks into finger release button ( Figure 5.). Finger Release Figure 6.
- Page 12 Mounting 7. Mounting the gun: A mounting back plate and 2 screws are included with the IN6430 . Mount to the IN6430 as pic- tured. Then mount the back plate to the desired location. 8. Air attachment: Use Teflon tape with all pressurized connections.
- Page 13 Air Inlet Options Option 1 Finger Quick Release (Included) 1/4 inlet, 1/8 NPT Thread Size Option 2 Industrial Interchange (Included) 1/4 inlet, 1/8 NPT Thread Gun with converter and quick release attachments...
-
Page 14: Service And Warranty
Transforming Tech- nologies. The company does not warrant damage due to misuse, neglect, alteration or accident. In no event shall Transforming Technologies be liable for collateral or consequential damages. To receive service under warranty, please con- tact Transforming Technologies Technical Support. -
Page 15: In6430 Line Drawing
IN6430 Line Drawing... - Page 16 3719 King Rd | Toledo, OH 43617 | P: 419-841-9552 | F: 419-841-3241 | info@transforming-technologies.com...
