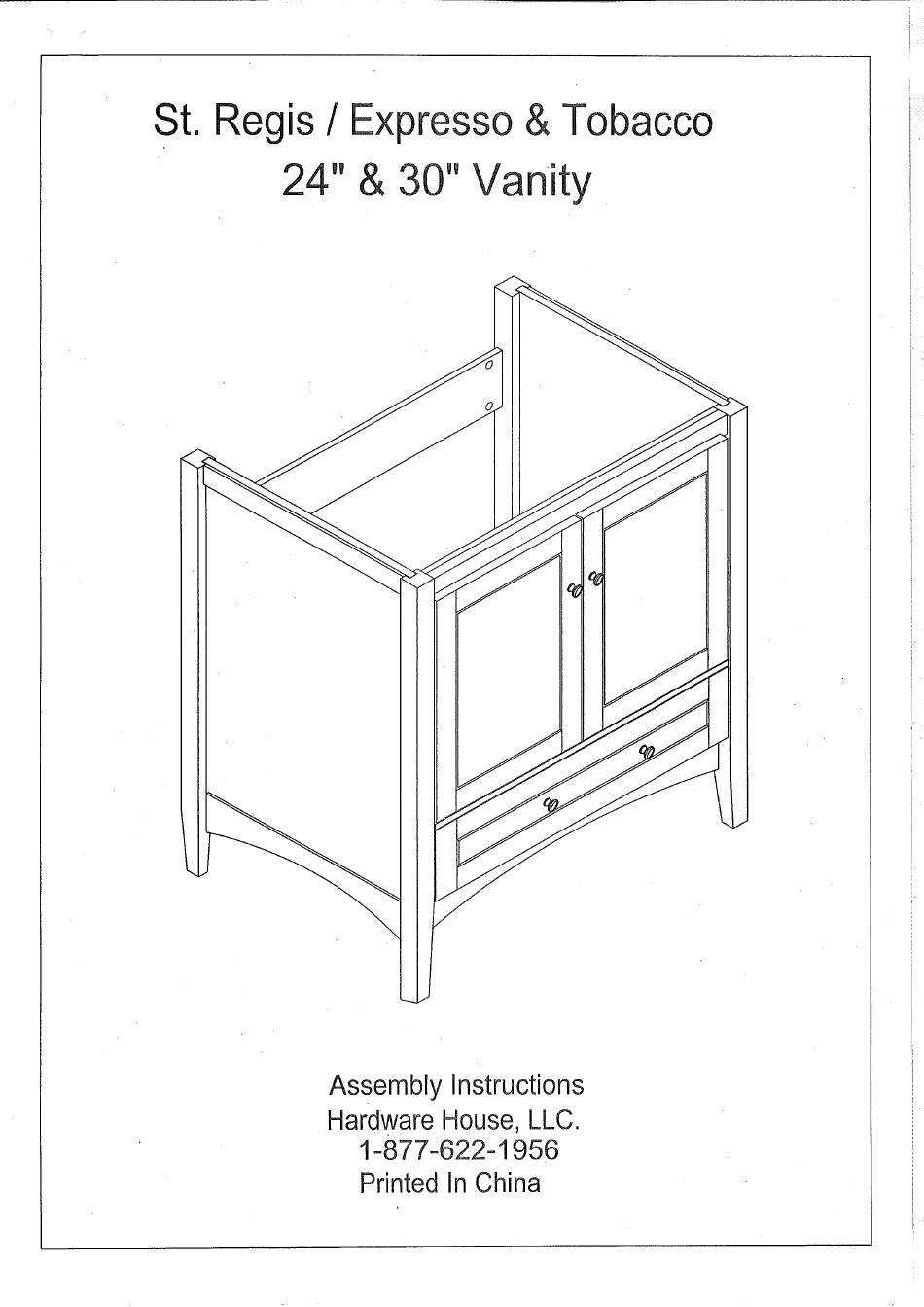

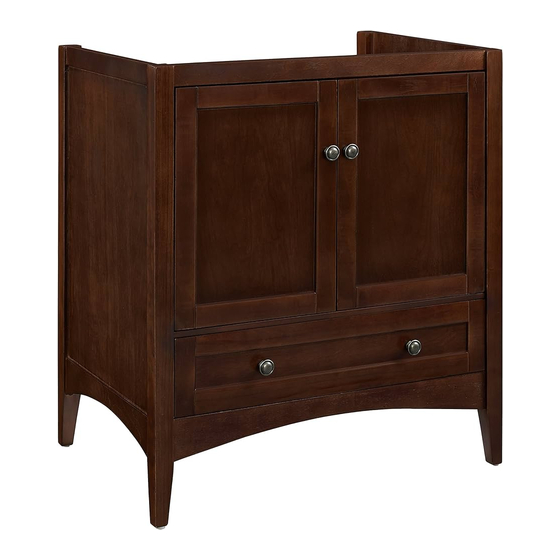

- Page 1 St. Regis / Expresso & Tobacco 24" & 30" Vanity Assembly Instructions Hardware House, LLC. 1-877-622-1956 Printed In China...
-
Page 2: Part List
H O T PART LIST DESCRIPTION DESCRIPTION Left Door Bottom Panel Right Door Back Bottom Rail Drawer Back Back Upper Rail Panel Left Side Panel Drawer Left Side Panel Right Side Panel Drawer Right Side Panel Drawer Bottom Front Bottom Rail Panel Front Upper Rail Drawer Front... - Page 3 DESCRIPTION DESCRIPTION Knob Cam Lock Philips Screw Cam Lock Screw Wood Dowel Hinge Wood Screw (4*14mm) Wood Screw...
- Page 4 STEP 1 Attach Wood Dowel (c.) Into Pre Drilled Hole On Left Side Panel (D), Attach Cam Lock Screws (b) Into Pre Drilled Holes On Left Side Panel (D) Attach Bottom Panel (A) To Left Side Panel With Wood Dowel (c.) & Cam Lock Screws (b) By Inserting Cam Locks (a) And Tighten Clock Wise Properly Cam Lock Dam Lock Screw...
- Page 5 STEP 3 Repeat Step 2 To Attached Bottom Panel (A), Back Rails (B), & Front Rails (F), (G) To Right Side Panel (E) And Tighten Cam Lock Cam Lock Screw Wood Dowel STEP 4 Attach Doors (H) & (I) To Side Panels (D) & (E) With Wood Screws (e) Through Hinges Into Pre Drilled Holes On Doors (G) (I) And Side Panels (D) (E) And Tighten...
- Page 6 STEP 5 Attach Drawer Side Panels ((K) (L) To Drawer Front Panel (N) & Drawer Back Panel (J) With Wood Screws And Tighten Make Sure Drawer Bottom Panels (M) Fit Into Slots In Drawer Front Panel (N), Drawer Side Panels (K) (L) & Drawer Back Panel (J) (g) To Drawer Front Panel (N) With Philips Screws (h) Through Pre Drilled Holes On Drawer Front Panel (N) Into Knobs (g) And Tighten Wood Screw...
- Page 7 What does the Warranty Cover? This warranty covers any defect in manufacturing or defect caused by norma! use of your Hardware House product for a period of 1 5-years beginning on the purchase date of the product. This warranty extends to the original end user purchaser, only.
