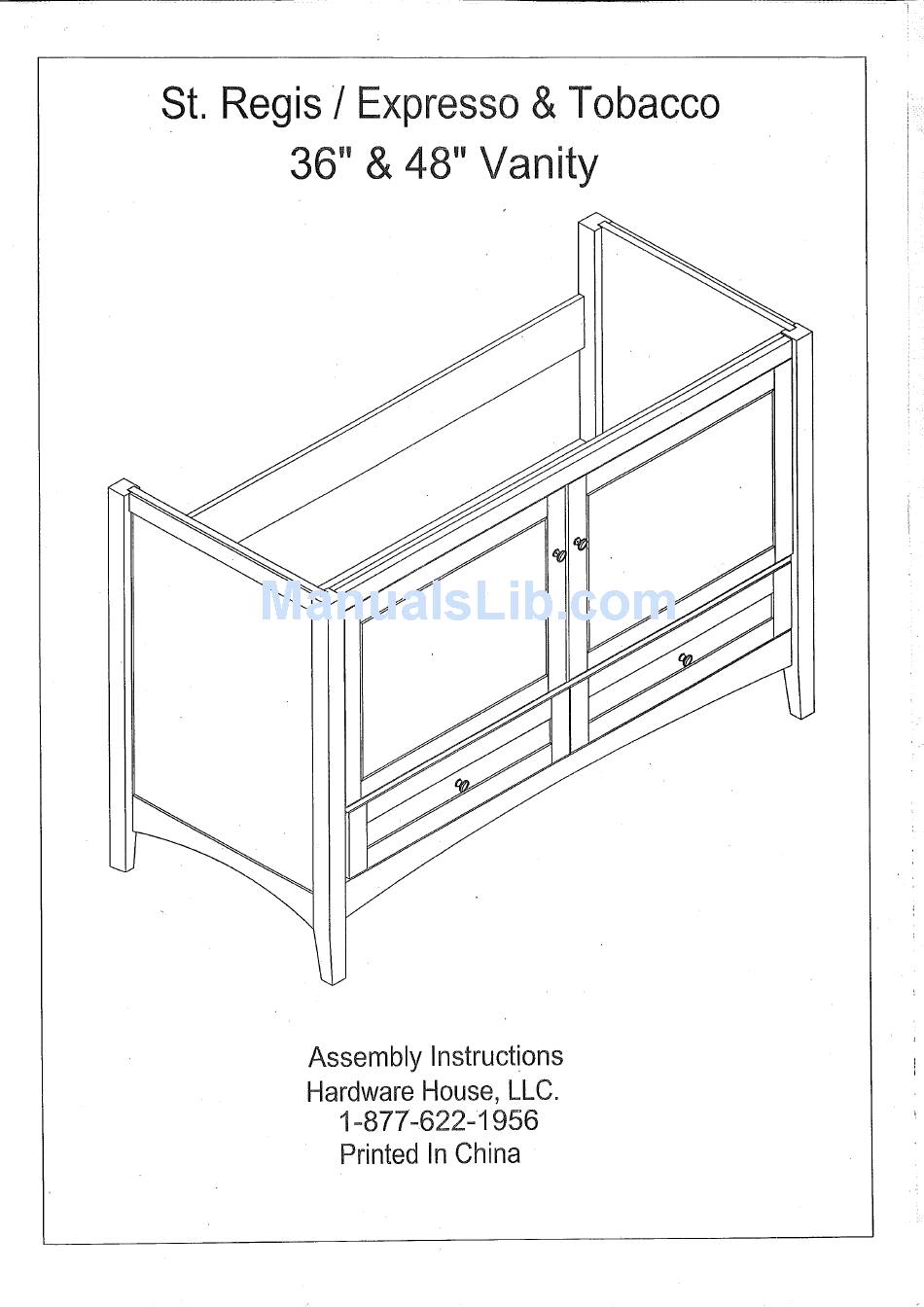

- Page 1 St. Regis / Expresso & Tobacco 36" & 48" Vanity Assembly Instructions Hardware House, LLC. Printed In China...
- Page 2 PART LIST...
- Page 3 HARDWARE LIST Philips Screw (size) DESCRIPTION DESCRIPTION Knob Cam Lock Philips Screw Cam Lock Screw (5/32*32mm) Philips Screw Wood Dowel Hinge Spring Washer Wood Screw Washer Wood Screw (3*19mm)
- Page 4 Easy Assembly Instructions For Hardware House St, Regis Series Vanity. Please Read These Instructions Very Carefully Before Starting Assembly Please Note: We Suggest That You Assemble The Vanity On A Soft Surface Such As A Carpeted Area In Order Protect The Finish Of The Wood STEP 1 Attach Wood Dowel (c.) Into Pre Drilled Hole On Back Bottom Rail (B),...
- Page 5 STEP 3 Philips Screw Attach Front Bottom Rail (G) To Divider (D) With Philips Screw Through Spring Washer (j), Washer (k) & Pre Drilled Hole On Front Bottom Rail (G) Then Into Insert & Spring Washer Nut In Divider (D) And Tighten ©...
- Page 6 Repeat Step 4 To Attach Back Rails (B) (C), Front Rails (G) & Bottom Panel (A) To Left Side Panel E) And Tighten Cam Lock Cam Lock Screw Wood Dowel STEP 6 Attach Doors (I) & (J) To Side Panels (E) & (F) With Wood Screws (e) Through Hinges (d) Into Pre Drilled Holes On Doors (I) (J) And Side Panels (E) (F) And Tighten Adjustable Hinges (d) To Adjust Door Gaps...
- Page 7 STEP 7 Attach Drawer Side Panels ((L) (M) To Drawer Front Panels (0) & Drawer Back Panels (K) With Wood Screws And Tighten Make Sure Drawer Bottom Panels (N) Fit Into Slots In Drawer Front Panels (0), Drawer Side Panels (L) (M) & Drawer Back Panels (K) Properly Attach Knobs (g) To Drawer Front Panels With Philips Screws (h) Through Pre Drilled Holes On Drawer Front Panels (0) Into...
- Page 8 What does the Warranty Cover? This warranty covers any defect in manufacturing or defect caused by normal use of your Hardware House product for a period of beginning on the purchase date of the product. This warranty extends to the original end user purchaser, only.
