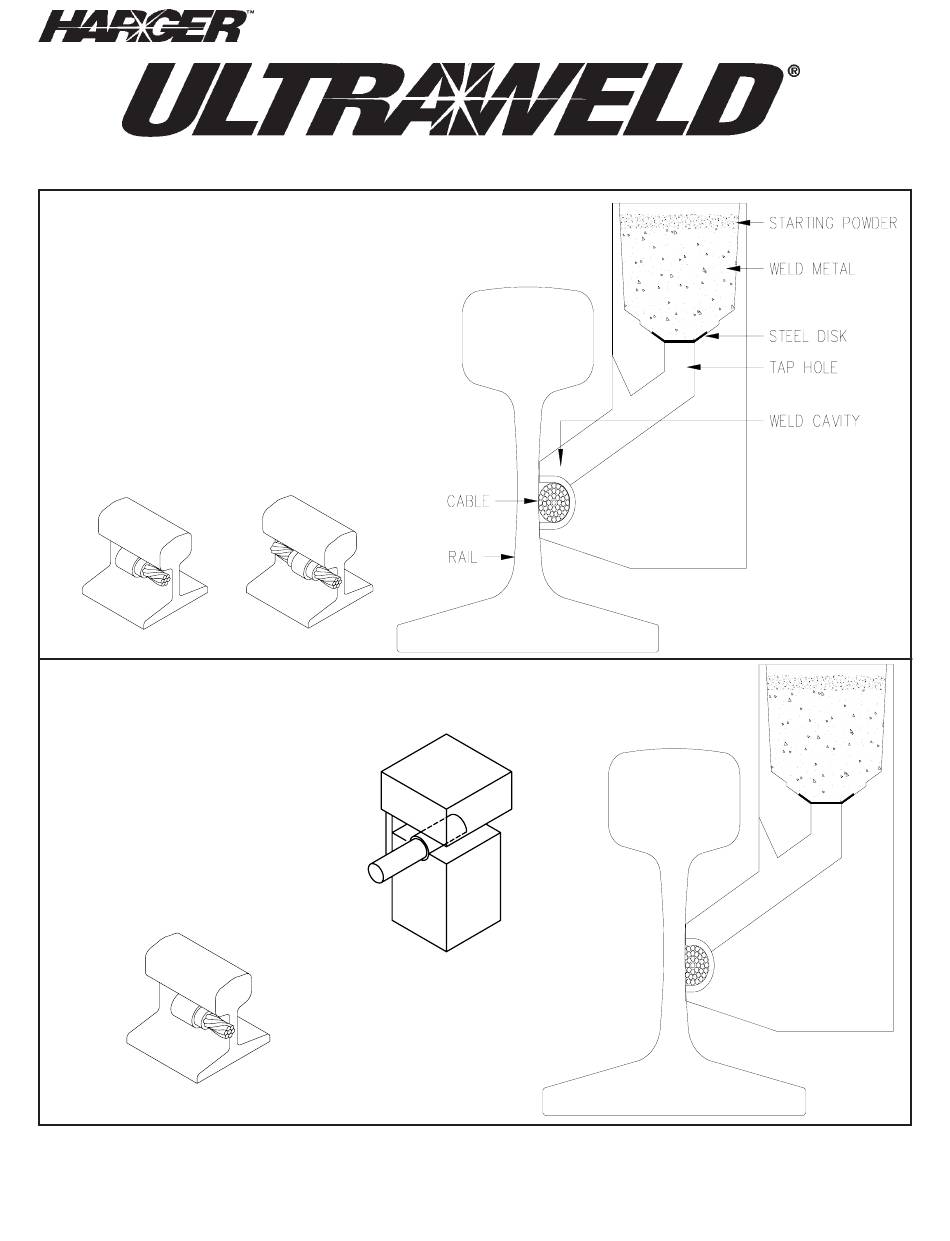

INSTRUCTIONS FOR ULTRAWELD® GROUNDING CONNECTIONS - CABLE TO WEB OF RAIL
RMVR OR RMVL & RMVH
1. For RMVR OR RMVL, insert end of the
cable into the mold making sure the end
of the cable is to the center of the tap hole.
For RMVH, place cable into mold. Do
not cut cable on RMVH molds.
2. Follow instruction on reverse side of this
sheet for welding instructions. To prevent
leakage of molten metal, use packing
material around cable opening(s) in mold.
Caution: Do not allow packing material to
get into weld cavity, as this will cause
poor welds and spewing of weld metal.
RMVR OR RMVL
RMVRB OR RMVLB
1. Place sleeve on the end of the cable
allowing cable to extend past end of
sleeve 1/8" and place into the hammer die.
2. Strike the lid of the hammer die with a
hammer to form the end of the cable.
3. Insert formed end of the cable into the
mold, making sure the end of the cable is
to the center of the tap hole.
4. Follow instruction on reverse side of this
sheet for welding instructions.
Revised 1/11/05
RMVH
HAMMER DIE
34-5936-48
