Rinnai Symmetry Premium Flat Installation

Before fitting the frames and dress guard* ensure that the:
• glass panel is not damaged in any way
WARNING
• rope seal gasket is seated correctly between the glass frame and the fire
• screws holding the glass frame to the spring loaded retainers have been
backed off a quarter of a turn (to prevent binding)
• glass frame moves freely on the spring loaded retainers
3

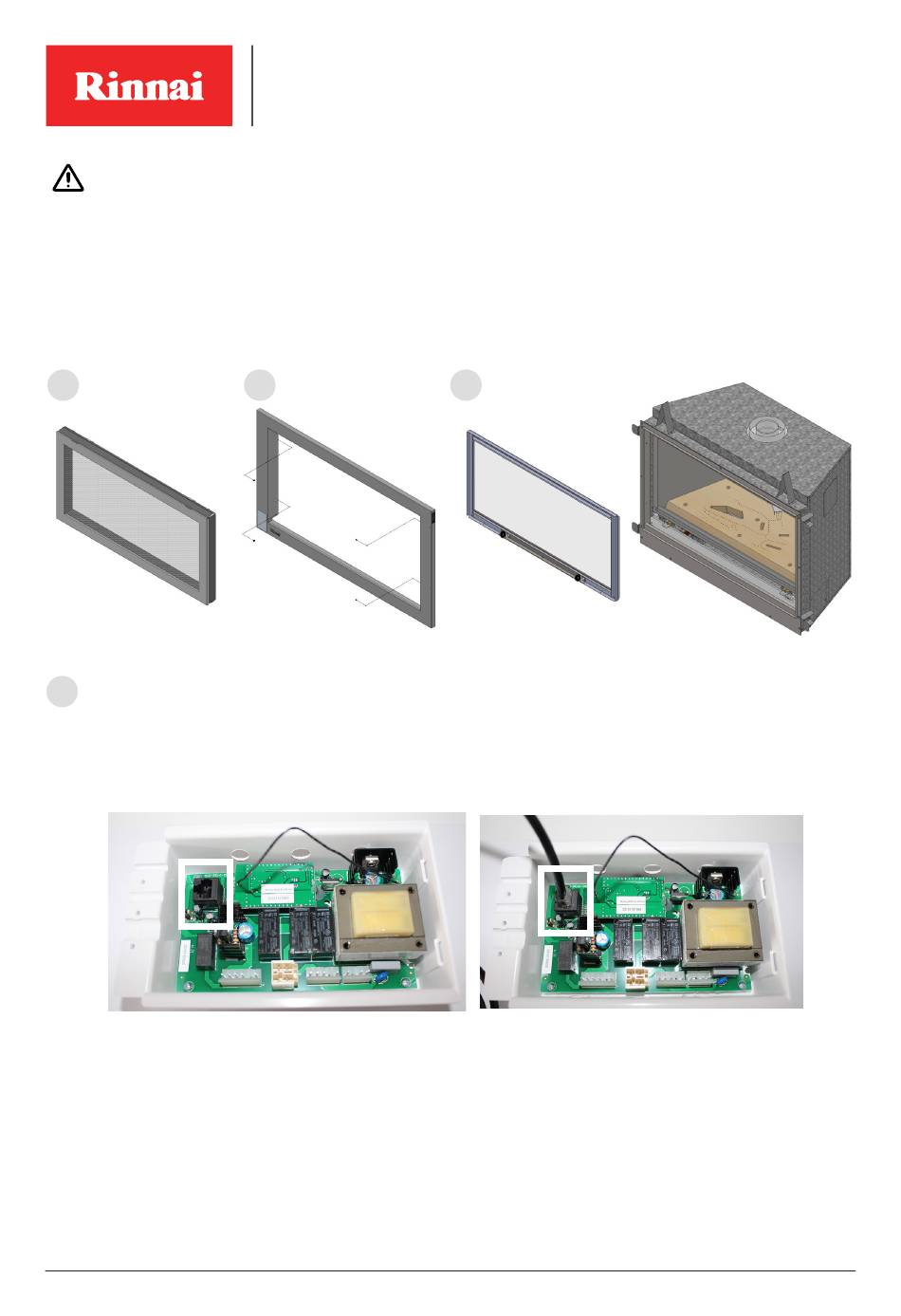

Flat front

Outer frame and CAT5 cable

1
a. Remove the top cover off the white PCB box.
b. Disconnect the CAT5 cable from the RJ45 connector inside the PCB box.
c. Connect the CAT5 cable on the manual switch, at the top right of the outer frame,
directly to the PCB as shown below, and refit the PCB cover.
b.
d. Screw into position with the four screws provided. Cover the lower manual control
switch with the blanking sticker supplied with the frame.
* Optional accessory in NZ.
Rinnai New Zealand Ltd.
Rinnai Australia Pty. Ltd.
Symmetry Premium Flat/
Square frame installation
Outer frame and
1
CAT5 cable
0800 746 624
1300 555 545
2
Glass Frame
c.
1 of 2 Symmetry Premium Flat/Square Frame installation
12728-C (03:17)
