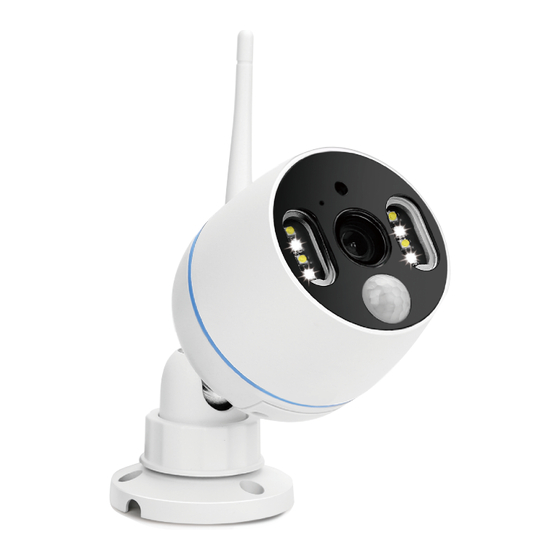

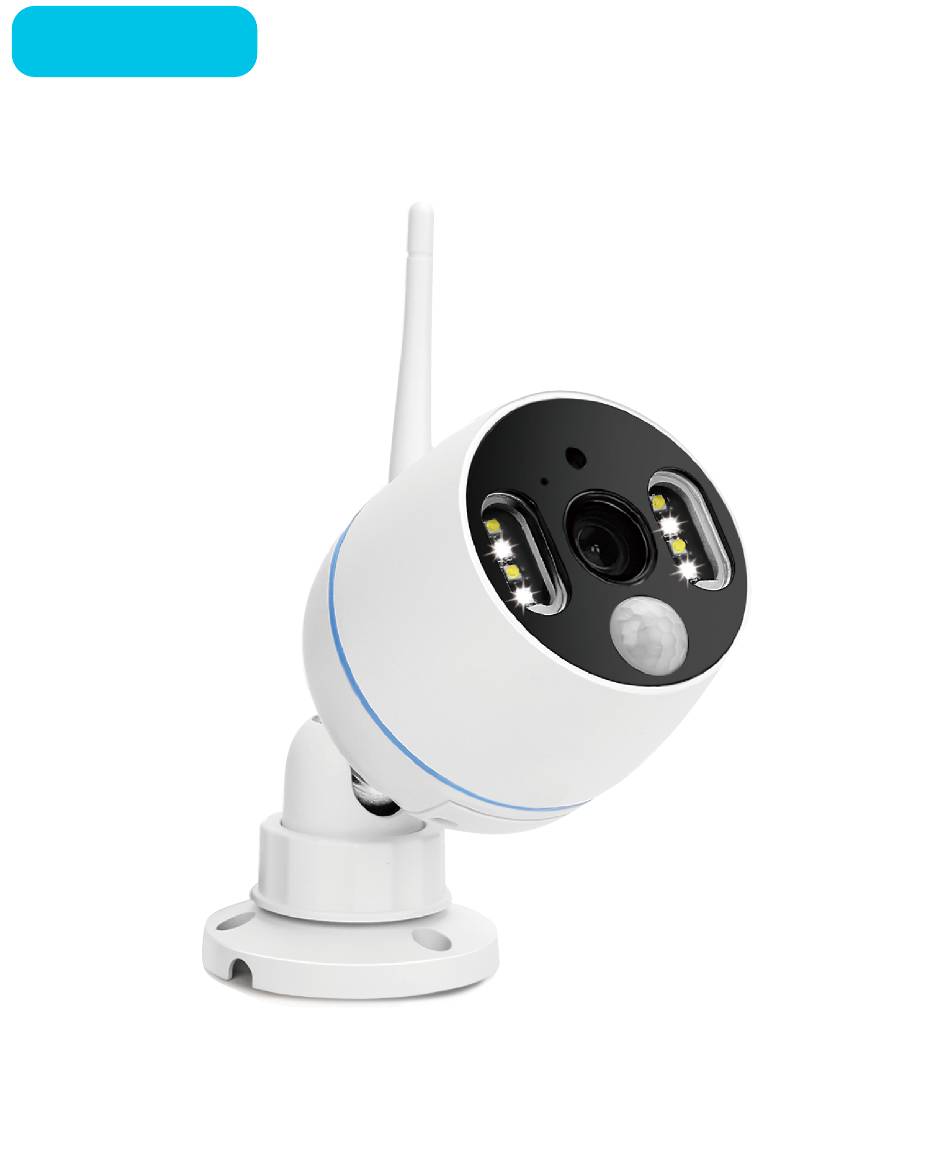

- Page 1 ® YESKAMO Floodlight IP Camera Users’ Manual PIR Motion Activated Alarm Camera with Floodlight www.yeskamo.com...
- Page 3 I.Statement Thank you for purchasing YESKAMO PIR WIFI Camera with floodlight. The PIR alarm camera has a built in PIR sensor and floodlights, when camera catches any suspicious activities in its detection area, you will get an alert message through the phone or siren alarm from camera side.
-
Page 4: Product Description
II.Product Description PIR Alarm camera with Floodlight Microphone: Pick up audio Speaker: transmit sound IR Cut Filter: auto switch day/night mode IR LED: IR leds will automatically switch on at darkness for night vision... - Page 5 360° all-round swiveling and 90° up-down adjusting; RJ-45 Ethernet port: A: Add the camera to YESKAMO NVR recorder as a standard NVR kits if you want B: Wired connect the camera to internet if you are you...
- Page 6 When people transversely When people goes straight to across PIR detection area as camera as above picture, the above picture, the camera will PIR sensor will not so sensitive detect the movement sooner. Note: A passive infrared sensor (PIR sensor) is an electronic sensor that measures infrared (IR) light radiating from objects in its field of view.
- Page 7 Or you can add the PIR Camera to a yeskamo NVR recorder as would be for a standard NVR camera kits. The camera has a built in PIR sensor and motion sensor, you will get an instant phone app alert and/or siren alarm when any suspicious activities is detected.
- Page 8 The camera has a built in IR leds and floodlight leds, IR led will automatically switch on when ambient light is insufficient and will create clear black/white videos, the floodlight will come on automatically (in the darkness) ONLY when any suspicious activities is caught on camera and will then allow for colour video recording for the unexpected activity.
- Page 9 3.Create an account and login phone app Register an account with your email address /phone number and password. A verification code will be send via text. 4.Add device on phone app Reset camera: Press and hold the reset button of camera about 5-10 seconds until hear a voice prompt “...
- Page 10 Add device on android phone Step1: Choose “ NO” on the interface “ Please check if the device has a network cable interface” (Default choose “No” although there is an RJ45 network cable on the camera) Step2: Choose “yes” on the interface “Does indicator light of the device blink”when you hear voice prompt “start configura- tion mode”...
- Page 11 Step3: Tap the detected camera’s cloud ID 2030725912 Step4: Input the password of home wifi (Make sure you input correct password of your wifi)and click “Next” button at upper right corner...
- Page 12 Wait for camera connecting to internet with voice Step5: prompt “ wireless setting, please wait” Step6: Get the voice prompt “the wireless connection is successful” and then edit the name of camera and click “done” to finish the configuration -10-...
- Page 13 Add device on iOS phone Step1: Choose “ NO” on the interface “ Please check if the device has a network cable interface” (Default choose “No” although there is an RJ45 network cable on the camera) Step2: Choose “yes” on the interface “Does indicator light of the device blink”when you hear voice prompt “start configura- tion mode”...
- Page 14 Step3: Go to “Setup > Wifi” on your iPhone Step4: Connect your iphone to camera’s hotspot with “IPC...” and input default hotspot password “ 11111111” -12-...
- Page 15 Step5: Back to phone app and input your wifi name and password (Make sure you input correct password of home wifi) Step6: Wait for camera connecting to internet with voice prompt “ wireless setting, please wait” -13-...
- Page 16 Step7: Get the voice prompt “the wireless connection is successful” and then edit the name of camera and click “done” to finish the configuration user manual Note: If you fail to configure the camera on phone app , please reset the camera and try again. Or please check “Q12: What to do if I click the “reset button”, but can NOT add the camera on phone app?”...
- Page 17 Customize the preview video definition between Definition Switch Button HD (high definition) & SD(standard definition) Speaker On/Off Button Whether play the sound captured by camera Switch between horizontal screen & vertical screen Full Screen Button Suitable for devices with microphone. Push the Microphone Button button and the people near camera can hear you Switching between multiple screen...
- Page 18 Function Option customize motion detection recording. The camera supports both motion detection recording & 24/7 continuous recording. Motion detection Disable “motion detection” option to disable motion detection recording Motion detection alarm customize the PIR sensor’s sensitivity to lowest, low, Motion detection medium, high and highest sensitivity for siren alarm from camera side and the camera will blare...
-
Page 19: Mode Selection
6--2 Mode Selection Click “setup” button at right bottom corner on phone app> Mode Selection> to setup device mode Function Option The camera start to record the video and push alerts Away mode when detect suspicious activities there will be no motion detection recording and alert At home mode when motion is detected. - Page 20 6--3 Device Storage Click “setup” button at right bottom corner on phone app> Device Storage> check whether the TF Card status is normal or If it is abnormal, please click “ format” option to format the TF card again. Note: When insert the TF card to camera, please unplug the camera from power source first.
- Page 21 Click “setup” button at right bottom corner on phone app> advances settings> Time recording management> customize record plan Option Function Motion Detection Start to record video when detect movement. Recording refer to “6-1 Motion Detection Management” Click “setup” button at right bottom corner on phone app> Time Recording advanced settings>...
-
Page 22: Video Image Settings
6--5 Video image settings Click “setup” button at right bottom corner on phone app> advances settings> video image settings> customize the live video’s definition , video color at night and video’s brightness Option Function Customize live video’s definition between auto Definition standard definition, HD (high definition), super definition... - Page 23 6--6. share device function You can easily share the device to your families after you finish the configuration of camera on phone app. Note: the valid time for QR code only in 300 seconds. Please create QR code again if it is invalid. There are other 2 ways for your families to add the device: Manually add the device via cloud ID Enter APP >...
- Page 24 Cloud ID: A: Check it on the primary phone which configure the camera B: Check the label on camera LAN scan add the device Enter APP > My Device > click “+”Icon > choose “LAN scan” > click the detected camera’s ID > click “confirm” to add the device.
- Page 25 Note: the phone and camera must be within same wifi environment if you choose “LAN scan” -23-...
- Page 26 VI. FAQ Q1. How to insert TF Card for camera? Unplug camera from power source; Remove the cover for TF Cart port from camera with provided screwdriver; Insert the TF Card slightly; Fix the TF Card cover back to camera; Power on the camera and format the TF Card (Refer to "...
- Page 27 Disable “motion detection alarm” in device setting (refer to “6--1. Motion detection management”) Choose “at home” mode in device setting. (Refer to “6--2. Mode selection ”) Q3.How to turn on and turn off the siren alarm from camera side? On device setup page, enable/disable “motion detection tone ”...
- Page 28 Q5.Why I can not playback the video? Please check whether you enable the motion detection recording or full time recording for camera; Please check whether the TF card is under a normal status. (Device setup> Device storage> TF card status) Q6.How to view the motion detection alert’s recording? On phone app>...
- Page 29 Q8.Why the floodlight doesn’t turn on when someone passby? The floodlight only turns on at night (when IR leds are activated) when PIR alarm camera detects people and both PIR sensor and motion sensor are triggered. It will not turn on at day time.
- Page 30 A: Setup password when configure the camera on phone app at first time. B: on setup page>advanced settings> password > Edit new password> click “change password Note: New password NO more than 10 characters, NO special characters. Q12.What to do if I click the “reset button”, but can NOT finish the configuration of camera on phone app? If you click the “reset”...
- Page 31 2-1) scan add the device cloud ID: Enter APP > My Device > tap “+”Icon > choose “scan” > scan the QA code on camera label > click “complete” and camera is added on phone app successful- 2-2) manually add the device cloud ID: Enter APP > My Device >...
- Page 32 Note: if the camera status doesn’t online, please check whether your router is 2.4GHz, and try to restart the router, then the camera will be online in minutes. Set wireless network for camera click “ setup” button at right button corner> advanced settings>Equipment WIFI>...
-
Page 33: Package List
Item PIR Alarm camera x1 12V 1A adapter x1 User manual x1 Screw pack x1 Screwdriver x1 Technical Support YESKAMO Technology Co. Ltd Website: www.yeskamo.com Email: yeskamservice@hotmail.com yeskamoservice@hotmail.com Tel: +1 830 745 5888 (US) +44 20 3807 4763 (UK) -31-... - Page 34 Your precious customer review will help us shape our business to best and let other customers know more about YESKAMO product and service. On behalf of all colleagues in YESKMAO, we sincerely appreci- ated your trust and support.
- Page 36 YESKAMO Technology Co. Ltd Website: www.yeskamo.com Email: yeskamservice@hotmail.com yeskamoservice@hotmail.com Tel: +1 830 745 5888 (US) +44 20 3807 4763 (UK)
