Matsushita Electric SL-PG4 Service Manual

Compact disc player
Hide thumbs

Advertisement

Quick Links

Download this manual

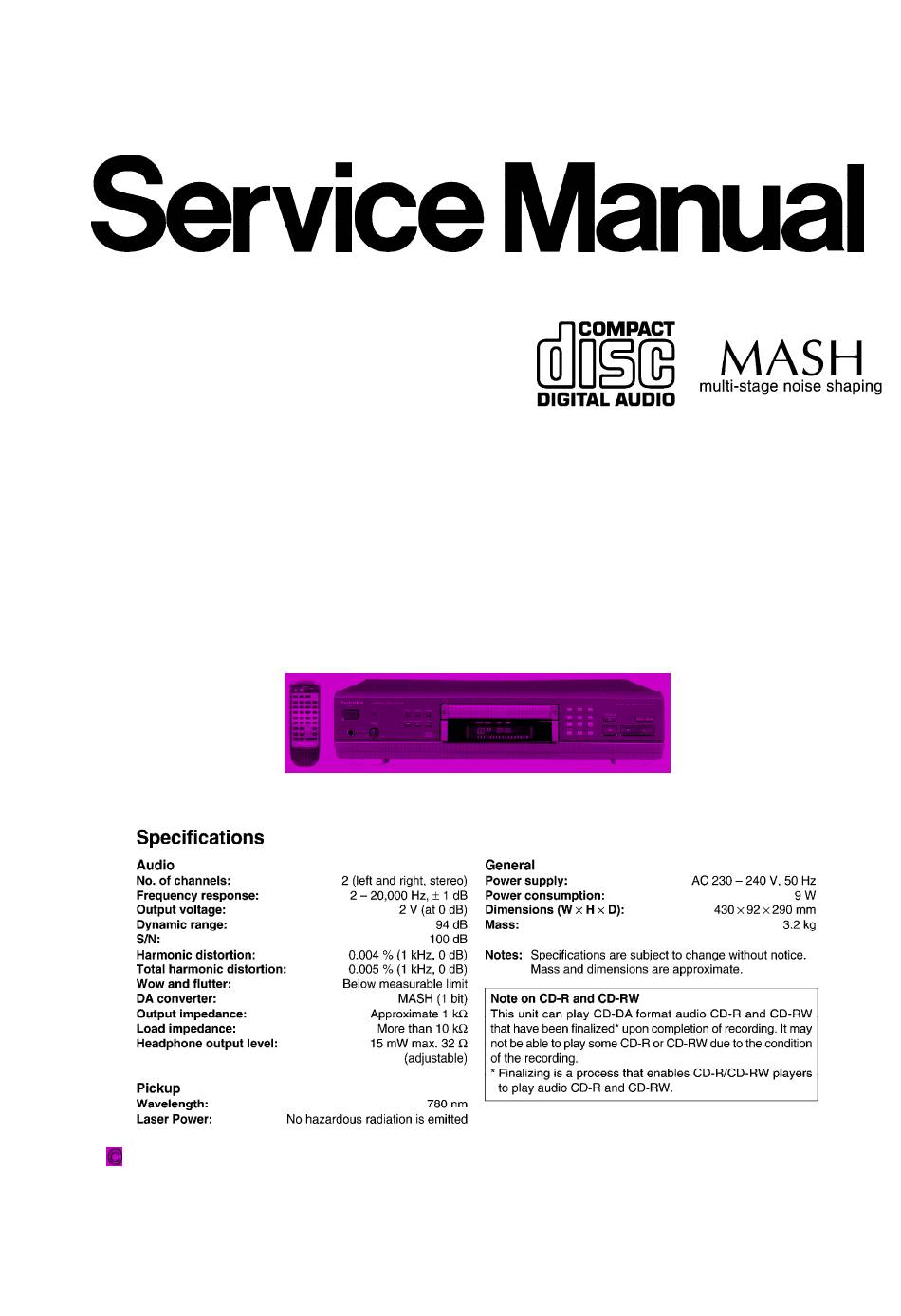

MB0104002C2
Compact Disc Player
SL-PG4
Traverse Deck: RAE0155Z Mechanism Series
Colour
(K)...........Black Type
Areas
(E)...........Europe, East Europe and CIS.
(EB).........Great Britain.
(EG).........Europe.
SPECIFICATIONS
2001 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SL-PG4 and is the answer not in the manual?

Questions and answers

Related Manuals for Matsushita Electric SL-PG4

Summary of Contents for Matsushita Electric SL-PG4

  • Page 1 Compact Disc Player SL-PG4 Traverse Deck: RAE0155Z Mechanism Series Colour (K)...Black Type Areas (E)...Europe, East Europe and CIS. (EB)..Great Britain. (EG)..Europe. SPECIFICATIONS 2001 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
  • Page 2 1. Accessories - AC power supply cord for (E), (EG) areas (RJA0043-1C)..........1 pc. - AC power supply cord for (EB) area (RJA0044-3C)..........1 pc. - Stereo phono cable (RJL2P004B08A)........1 pc. - Remote control (EUR645275)..........1 pc.

  • Page 3: Handling Precautions For Traverse Deck

    - Batteries for remote control (R6, “AA”, UM-3))........2 pcs. Note: These are available on sales route. 2. Handling Precautions for Traverse Deck The laser diode in the traverse deck (optical pickup) may break down due to potential difference caused by static electricity of clothes or human body. So be careful of electrostatic breakdown during repair of the traverse deck (optical pickup).

  • Page 4: Precaution Of Laser Diode

    2.2. Grounding for electrostatic breakdown prevention 2.2.1. Human body grounding Use the anti-static wrist strap to discharge the static electricity from your body. Refer to Fig. 2-2. Fig. 2-2. 2.2.2. Work table grounding Put a conductive material (sheet) or steel sheet on the area where the traverse deck (optical pickup) is placed, and ground the sheet.

  • Page 5: Caution For Ac Mains Lead

    4. Caution for AC Mains Lead...
  • Page 6 5. Location of Controls 6. Operation Checks and Component Replacement Procedures - This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components. - For reassembly after operation checks or replacement, reverse the respective procedures.
  • Page 7 6.1. Checking for the main P.C.B. - Check the main P.C.B. as shown below. 6.2. Checking for the CD servo P.C.B.
  • Page 8 - Follow the (Step 1) - (Step 3) of item 6.1.
  • Page 9 - Check the CD servo P.C.B. as shown below. 6.3. Checking for the FL P.C.B. - Follow the (Step 1) - (Step 3) of item 6.1. - Check the FL P.C.B. as shown below.
  • Page 10 6.4. Replacement for the traverse deck ass’y, drive gear and cam gear - Follow the (Step 1) - (Step 3) of item 6.1. - Follow the (Step 1) - (Step 4) of item 6.2.
  • Page 15 6.5. Replacement for the optical pickup - Follow the (Step 1) - (Step 3) of item 6.1. - Follow the (Step 1) - (Step 4) of item 6.2. - Follow the (Step 1) - (Step 8) of item 6.4.
  • Page 18 6.6. Replacement for the traverse gear (A) and traverse gear (B) - Follow the (Step 1) - (Step 3) of item 6.1. - Follow the (Step 1) - (Step 4) of item 6.2. - Follow the (Step 1) - (Step 6) of item 6.4.

  • Page 19: Self-Diagnostic Function

    7. Self-Diagnostic Function The self-diagnostic feature automatically diagnoses the unit’s mechanism and provides error information display. It includes self-diagnostic functions for the servo system and mechanism control switches. 7.1. Servo system self-diagnosis 1. With the test disc (SZZP1054C) loaded, turn off the unit. 2.
  • Page 20 Table 7-1. Symptom Probable cause Signal to check Normal voltage and error waveform / values code / Signal Location PLAY STOP display name Normal ----- ----- ----- ----- ----- 1. IC702’s clock input X1 IN, IC702’s power Focus and MDATA IC702-pin 8 supply (V ) or its reset (/RST) is invalid.
  • Page 21 1. The disc is scratched or dirty. E04, Focus and IC702-pin 1.6 V 2. Focus or tracking servo is malfunctioning E08, tracking gain (Check waveforms voltages and circuit adjustment constants). IC702-pin 1.6 V 3. Optical pickup is malfunctioning. has not been completed in specified IC702-pin...

  • Page 22: Schematic Diagram Notes

    code, if any. Refer to Table 7-3. 5. If more than one error exists, the display will sequentially show the respective error codes each time the Stop button is pressed. 6. Turn off the unit to exit the self-diagnostic function. Fig.
  • Page 23 Numeric switch (1) S607: Numeric switch (2) S608: Numeric switch (3) S609: Numeric switch (4) S610: Numeric switch (5) S611: Numeric switch (0) S612: Numeric switch (9) S613: Numeric switch (8) S614: Numeric switch (7) S615: Numeric switch (6) S620: Numeric switch ( S621: F.Skip/search switch (...
  • Page 24 Disc tray open/close switch / ( OPEN/CLOSE) S624: Program switch (PROGRAM) S625: Repeat switch (REPEAT) S626: Stop switch ( S627: Play switch ( S628: R.Skip/search switch ( S629: Clear switch (CLEAR) S630: Program recall switch (RECALL) S651: Power Standby/on switch ( S701: Rest detect switch in OFF position S790:...
  • Page 25 by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on theinternal impedance of the DC circuit tester. No mark : CD stop : CD play [1 kHz, L+R, 0 dB] - Important safety notice: Components identified by mark have special characteristics...
  • Page 26 : CD playback signal line 9. Schematic Diagram 10. Printed Circuit Board Diagram 11. Type Illustration of ICs, Transistors and Diodes 12. Wiring Connection Diagram 13. Block Diagram 14. Troubleshooting Guide...

  • Page 28: Terminal Function Of Ics

    15. Terminal Function of ICs 15.1. IC601 (C2BBFE000100): / System Control/FL Drive...
  • Page 29 Terminal Function Name 1 POWER O Power off command output DMUTE O Muting signal output M RST Not used, open EMPH Not used, open Not used, open REST Rest detect switch signal input Not used, connected to GND Reset signal input Not used, open GND terminal Oscillator connected terminal (F...
  • Page 30 Terminal Function Name FL anode drive signal and key scan signal KEY1 Operation key signal input KEY4 64 POWER Power key switch signal input O Microprocessor command load signal MCLK O Microprocessor command clock 67 MDATA O Microprocessor command data STAT Status signal input Disc tray open detect switch...
  • Page 31 Terminal Function Name Tracking signal input (1) terminal Tracking signal input (2) terminal Power supply terminal Focus signal input (1) terminal Focus signal input (2) terminal APC amplifier input terminal O APC amplifier output terminal O RF addition output terminal RF IN RF detection signal input terminal...
  • Page 32 terminal Terminal Function Name FBAL Focus balance signal input terminal 15.3. IC702 (MN662790RSC): / Servo Processor/Digital Signal Processor/ Digital Filter/ / D/A converter Function Terminal Name BCLK Serial bit clock output (Not used, open) LRCK L/R discriminating signal output (Not used, open) 3 SRDATA Serial data signal output (Not used, open)
  • Page 33 Function Terminal Name Traverse drive signal output Turntable motor drive signal output (L: ON) Turntable motor drive signal output (Forced mode) Turntable motor drive signal output (Servo error signal) KICK Kick pulse output (Not used, open) Tracking drive signal output Focus drive signal output 29 VREF D/A drive output normal voltage...
  • Page 34 Function Terminal Name PLL extract clock (Not used, open) 54 VCOF2 VCO loop filter terminal (Not used, connected to GND) 55 SUBC Sub-code serial output clock (Not used, open) 56 SBCK Sub-code serial input data (Not used, connected to GND) GND terminal X1 IN Crystal oscillator terminal (F=...
  • Page 35 Function Terminal Name 79 MSEL Output frequency select signal input (Connected to GND) SSEL SUBQ output mode select signal input (Not used, connected to V 15.4. IC703 (BA5948FPE2): / Focus Coil/Tracking Coil/ / Traverse Motor/ Spindle / Motor Drive Function Terminal Name Traverse motor drive signal...

  • Page 36: Replacement Parts List

    Function Terminal Name Not used, open Power supply terminal 26 VREF Reference voltage input terminal Tracking drive signal input Focus drive signal input 16. Replacement Parts List Notes: - Important safety notice: Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low-noise (resistors), etc.
  • Page 37 Ref. No. Part No. Part Name & Description Remarks RKM0098A-K TOP CABINET <MAVD> RYP0979Z-K FRONT PANEL ASS'Y <MAVD> RGU1948-K BUTTON,MAIN <MAVD> RGU1950-K BUTTON,SUB <MAVD> RGU1949-K BUTTON,OPERATION <MAVD> RGP0844B-K FRONT PANEL <MAVD> RGU1029-K BUTTON,POWER RGL0267-Q LED INDICATOR RHD26021 SCREW RKA0040B-K1 FOOT RMG0384-T RUBBER <MAVD>...
  • Page 38 Ref. No. Part No. Part Name & Description Remarks RMR1242-X1 FIXED PLATE RSH1A049-U SWITCH,OPEN(S790) K0F111E00093 XTN2+6G SCREW RXQ0704 OPTICAL PICK-UP / ASS'Y EUR645275 REMOTE CONTROL <MAVD> A1-1 UR64EC1987 BATTERY COVER RJA0043-1C AC POWER SUPPLY / CORD (E,EG)<MAVD> / RJA0044-3C AC POWER SUPPLY / CORD (EB)<MAVD>...
  • Page 39 Ref. No. Part No. Part Name & Description Remarks C725,26 ECUV1H102KBV 50V 1000P C727,28 ECA1HAK010XI 50V 1U C730 ECUV1E104ZFV 25V 0.1U C731 ECA0JAK221XI 6.3V 220U C732 ECEA1AKS221 10V 220U C733 ECUV1C104KBV 16V 0.1U F1H1C104A042 C734 ECEA1AKS221 10V 220U C735-37 ECUV1E104ZFV 25V 0.1U C738 ECUV1C563KBV...
  • Page 40 Ref. No. Part No. Part Name & Description Remarks FC651 RWJ1803150KK FLAT CABLE(3P) FL601 A2BA00000207 FL DISPLAY <MAVD> IC11 LM2940T5 C0CAADG00019 / IC12 C0CAABE00007 IC601 C2BBFE000100 <MAVD> IC651 B3MAZ0000023 <MAVD> IC701 AN8885SBE1 IC702 MN662790RSC IC703 BA5948FPE2 IC801 BA4560FE2 IC871 BA4560FE2 JK301 T0TX178A JACK,DIGITAL / OPT.OUT...
  • Page 41 ERDS2FJ103 1/4W 10K...
  • Page 42 Ref. No. Part No. Part Name & Description Remarks ERDS2FJ822 1/4W 8.2K ERDS2FJ680 1/4W 68 ERDS2FJ331 1/4W 330 ERDS2FJ473 1/4W 47K ERDS2FJ472 1/4W 4.7K ERDS2FJ103 1/4W 10K R28-30 ERDS2FJ103 1/4W 10K ERJ6GEYJ104V 1/10W 100K R61,62 ERDS2FJ222 1/4W 2.2K ERDS2FJ103 1/4W 10K R311 ERDS2FJ331 1/4W 330...

  • Page 43: Cabinet Parts Location

    R754 ERJ3GEYJ5R6 1/16W 5.6 <MAVD> Ref. No. Part No. Part Name & Description Remarks R760 ERJ3GEYJ221V 1/16W 220 R761 ERJ3GEYJ472V 1/16W 4.7K D0GB472JA002 R801,02 ERDS2FJ102 1/4W 1K R803,04 ERDS2FJ224 1/4W 220K R805,06 ERDS2FJ472 1/4W 4.7K R807,08 ERDS2FJ682 1/4W 6.8K R809,10 ERDS2FJ333 1/4W 33K R811,12...

  • Page 44: Loading Unit Parts Location

    18. Loading Unit Parts Location...
  • Page 45 19. Packaging...
  • Page 46 F010400000YM/MT/KH...
