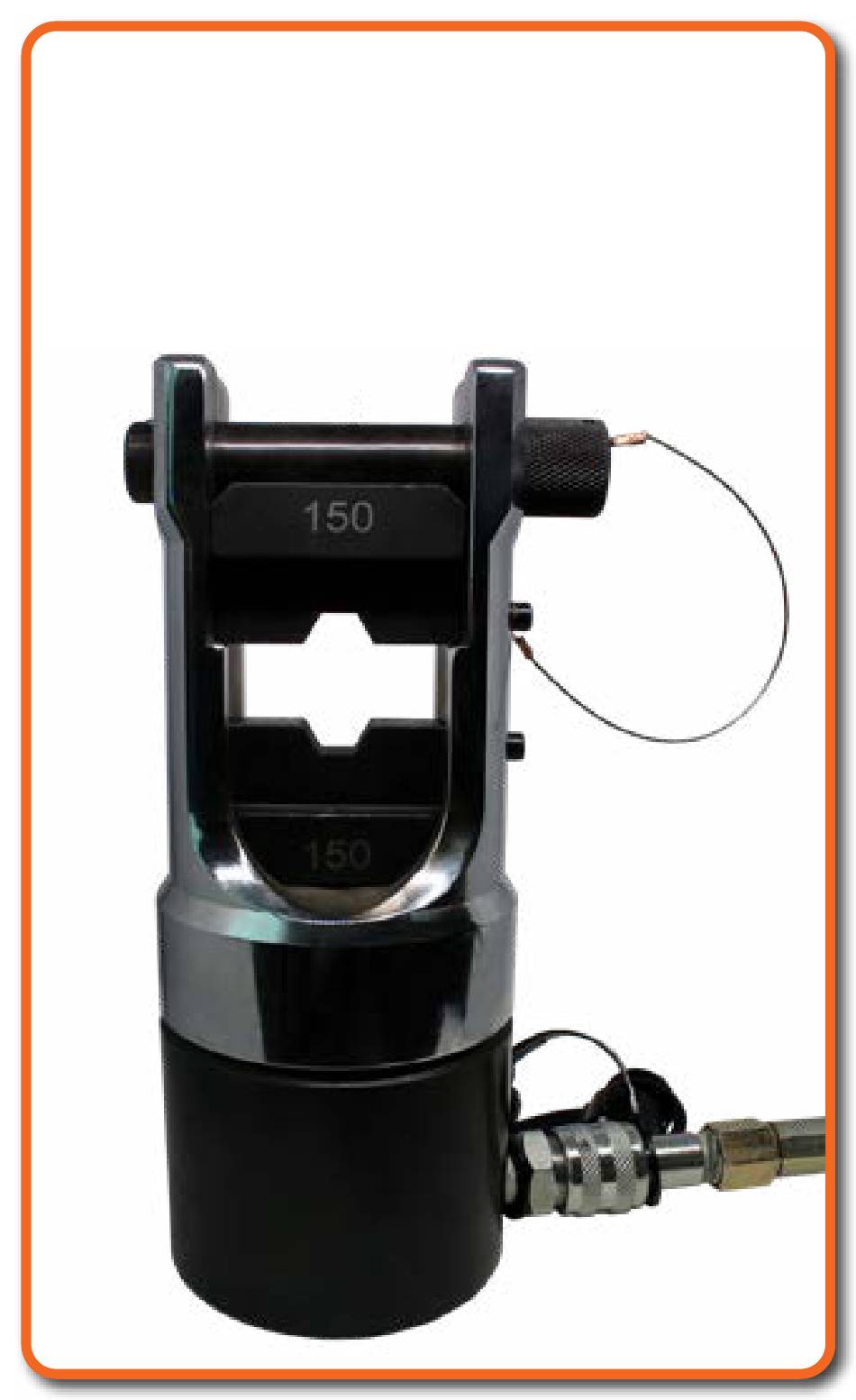

- Page 1 FD630B Operating Manual Hydraulic Press...
- Page 2 Die Pin terminals ranging from 250 to 1250MCM (150 to 630mm • Reliable: A veritable work horse, the FD630B press is ideal for crimping large quantities of terminals and compression lugs. • Versatile: compatible with the FD700HP and FD800HP hydraulic pump.
- Page 3 Crimping Press FD630B FD630B FD630B FD630B Crimping Press Die Installation Optional Dies Loosen the securing screw and slide the bottom die Remove the die pin. into available crimping FD630B150 FD630B185 slot. Slide in the top half of the Tighten the screw on the die set and re-insert the bottom die to secure it.
- Page 4 Keep bystanders clear of your work space during assembly by adding Premium ISO (VG) 32 Anti-Wear Oil. and operation. • When storing the FD630B, cover the hydraulic port to prevent • Maintain proper footing and balance at all times, ensuring debris from collecting.
- Page 5 Find us on social media! Facebook.com/FerrulesDirect Twitter.com/FerrulesDirect Instagram.com/FerrulesDirect Youtube.com/FerrulesDirect Have any Questions? Sales@FerrulesDirect.com...
