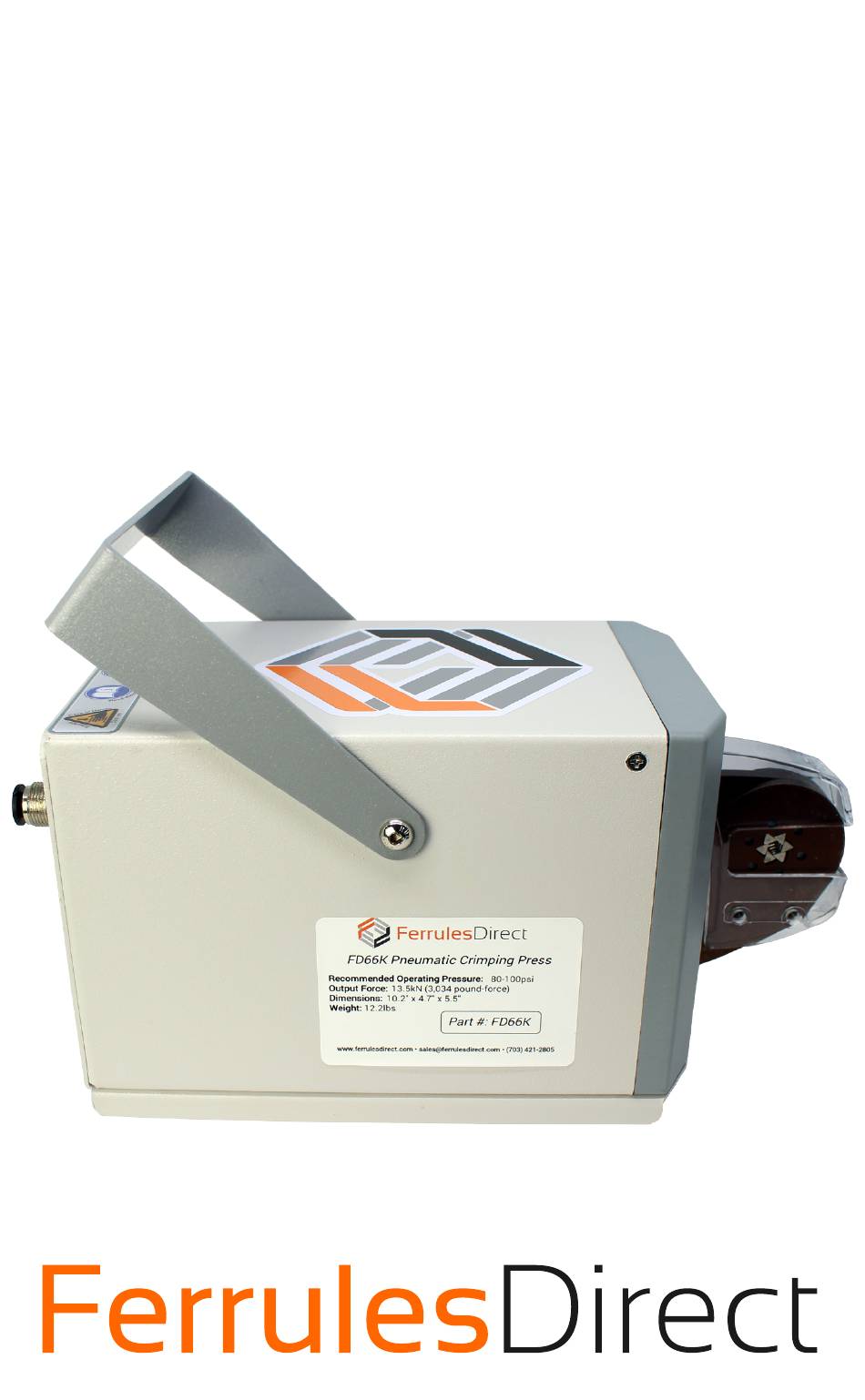

- Page 1 FD66K Pneumatic Crimping Press Operating Instructions...
- Page 2 Technical Specifications Model # ..................FD66K Output Force ................1.2 Tons Recommended Air Pressure ....... Between 80 and 100 psi (0.5 to 0.7 Mpa) Crimping Range ......28 to 6AWG (.08mm to 10.00mm Dimensions ......11.2 x 4.9 x 6.5” (286 x 125 x 165 mm) Weight .................
- Page 3 1. Place the FD66K on a flat surface, it can be operated without securing out to a flat surface 2. Connect the FD66K and foot pedal at port A and B with the included air tubing 3. Connect the air compressor and foot pedal at port P 4.
- Page 4 Do not operate the FD66K in extreme temperature or humidity (recomended operating conditions: 40 °F to 120 °F). • When not in use unplug the FD66K and block all open ports with dust caps. • Store the FD66K in a cool and dry place along with suitable covering to prevent a build up of rust and debris.
