1. Tractor identification
1.1
Locating serial numbers
1

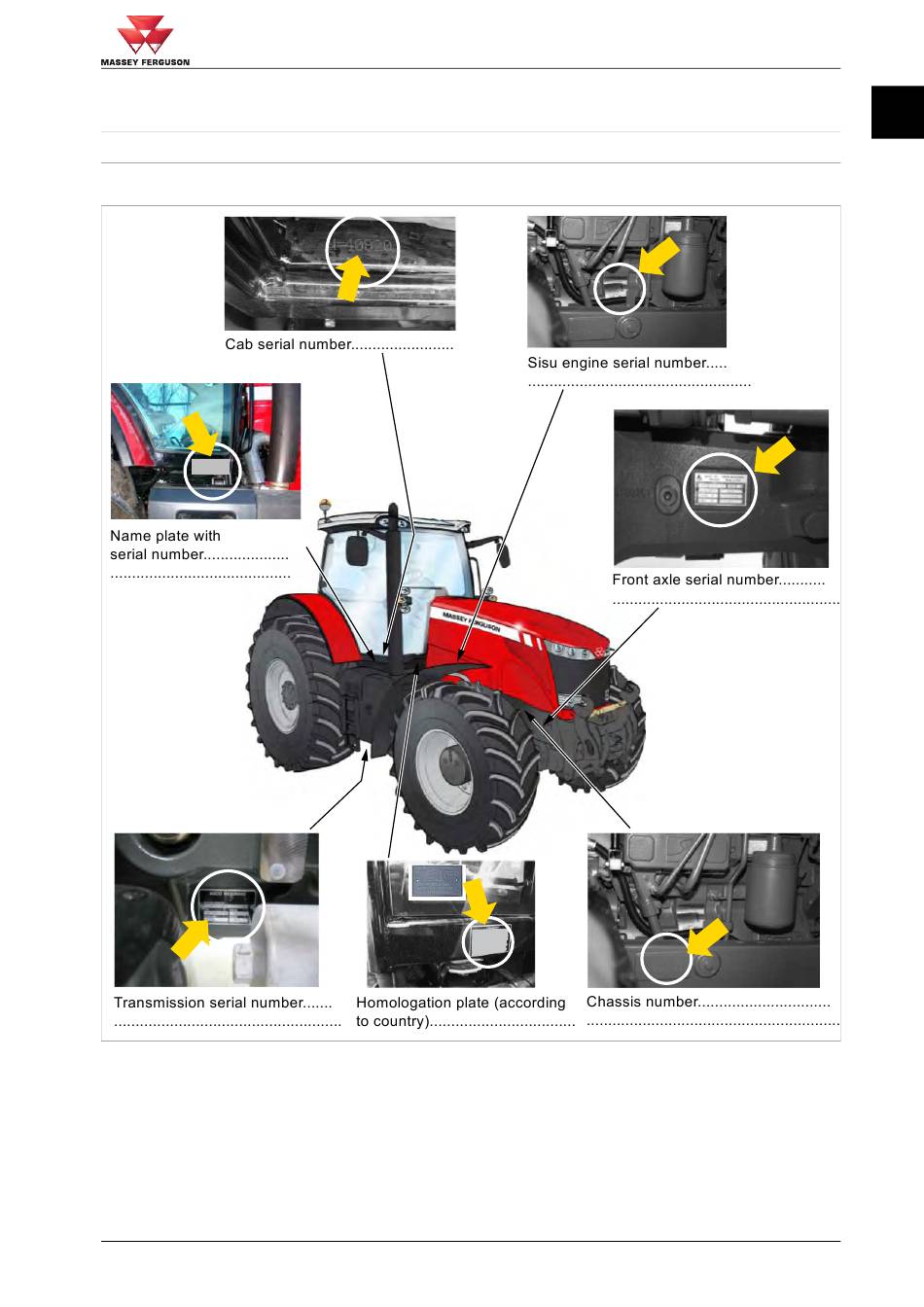

1.1.1 Locating serial numbers
T002037
I
:
Please quote the serial number of your tractor in all correspondence with your dealer or agent.
MPORTANT
Fig. 1.
I006204
8600 - EAME
13
4315972M4 - 2

Advertisement

Table of Contents
loading

Related Manuals for MASSEY FERGUSON 8650

Summary of Contents for MASSEY FERGUSON 8650

  • Page 1 1. Tractor identification Locating serial numbers 1.1.1 Locating serial numbers T002037 Please quote the serial number of your tractor in all correspondence with your dealer or agent. MPORTANT Fig. 1. I006204 8600 - EAME 4315972M4 - 2...

  • Page 2: Filling The Fuel Tank

    2. Safety instructions and safety points - Warranty – ARNING In poor conditions, slow down and be extra careful, and engage 4-wheel drive if fitted. It is important to have good knowledge of the operation of the tractor as well as all of its ac- cessories and attached implements.

  • Page 3: Operation

    3. Operation 3.1.1 Steering console T001269 Fig. 1. I004626 Instrument panel see §3.1.2, page 52 Steering wheel adjustment see §3.1.6, Control unit see §3.1.3, page 56 page 58 This assembly controls the direction indicator, Access controls to menusDash Control Cen- windscreen wiper, front and rear windscreen washer and horn.

  • Page 4: Control Unit

    3. Operation Access controls to Dash Control Center menu (11) Up scrolling key (12) Down scrolling key (13) Left scrolling key. (14) Right scrolling key. (15) Confirmation key (16) Cancel key. (17) Parameter display selector. Fig. 10. I004852 3.1.3 Control unit T001274 Windscreen wiper J.
  • Page 5 3. Operation Fig. 15. I004797 8600 - EAME 4315972M4 - 2...
  • Page 6 3. Operation 3.1.8 Right-hand console T001279 Fig. 16. I004397 Hazard warning lights indicator light and (15) Draft control and position control knob (Inter- switch mix) Main lighting, sidelight/dipped light activation (16) Linkage height control knob switch (17) Linkage lowering speed control knob Variable steering switch (with the Auto-Guide (18) Quick steering setting potentiometer (SpeedS- option fitted)
  • Page 7 3. Operation (34) Onboard computer 3.1.10 Work lights module T001483 Controlling the headlights A keyboard on the right-hand pillar of the cab is used to control the various tractor headlights and rotary bea- con. Switch and indicator light for main beams on hand rails (available as an option, depending on the country) (maximum power 2x55 W).

  • Page 8: Automatic Air Conditioning

    3. Operation Automatic air conditioning Manual/automatic fan control Digital display (LCD) Compressor ON/OFF button Defroster button Recirculation button Temperature control knob Left-hand side fan ON/OFF switch Using the main fan The temperature inside the cab is controlled auto- matically by the air conditioning system, which con- trols the air temperature at the air vents, fan speed, recirculation and compressor operation.

  • Page 9: Filling With Fuel

    3. Operation Engine 3.4.1 Running-in T000953 – Experience has shown that the first 50 hours of tractor operation have a significant effect on the perfor- mance and life of the engine. – From the first operation, the tractor must run with the engine at full load. The engine should be allowed to reach a temperature of 60 °C before being subjected to full load.

  • Page 10: Limp Home Mode

    3. Operation ANGER The ParkLock parking brake will not operate once its screws have been loosened. Before loosening, chock the tractor to prevent the wheels from drifting. Release the ParkLock parking brake by loosen- ing the right and left-hand brake fittings ((1)) lo- cated on the top of the rear axle until the hard point is felt (approximately 9 turns) Fig.

  • Page 11: Auxiliary Hydraulics

    3. Operation 3.13 Auxiliary hydraulics 3.13.1 General T001314 8600 series tractors are available with the 200 l/min, 200 bar hydraulic system The tractor may be fitted with a maximum of 6 spool valves, each delivering 100 l/min. It may be fitted with up to 6 pairs of couplers at the rear and 2 pairs of couplers at the front.

  • Page 12: Maintenance

    4. Maintenance Service guide 1200 2000 Every day Check the operation of the injectors. ° Change the main urea filter (E3 engine with 4000 hours or every 2 years AdBlue/DEF technology). Change the urea inlet prefilter (E3 engine with 8000 hours or every 2 years AdBlue/DEF technology) Change the filter inside the metering module E3 If blocked by impurities...

  • Page 13: Recommended Products

    Transmission SAE 15W40 oil complying with MF specifications CMS M1145. Hydraulic clutch. Pentosin CHS 11S oil. Rear final drives Models 8650/8660: SAE 85W90 Models 8670/8680/8690: SAE 85W140 4.4.2 Checking the transmission oil level T001409 Frequency Check the transmission oil level every day.

  • Page 14: Electrical Equipment

    4. Maintenance 4.11 Electrical equipment 4.11.1 Batteries T001066 The tractor's electrical circuit operates on 12 V. The negative terminal is the earth. Wipe the battery top and smear the terminals with liquid paraffin every 400 hours. ARNING Batteries produce explosive gases. Sparks, flames, lit cigarettes or any flammable source must be kept at a distance.
  • Page 15 4. Maintenance 4.11.5 Fuses T001913 X361 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 F19 F20 F21 F22 F23 F24 X360 F26 F27 F28 F29 F30 F31 F32 F35 F36 F37 F38 F39 F40 F41 F42 F43 F44 F45 F46 F47 F48 X268 X162...
