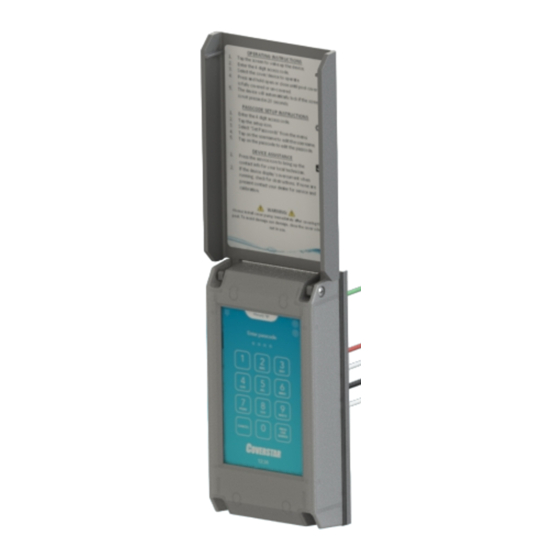

Touch Screen Pool Cover Controller Wiring and
Table of Contents
Important Safety Instructions .................................................................................................................... 1
Installation Notes ....................................................................................................................................... 1
Product Summary ...................................................................................................................................... 2
Mounting Instructions ................................................................................................................................ 2
Wiring Description ..................................................................................................................................... 3
Standard Setup Procedure ......................................................................................................................... 4
Accessing the Setup Menu .................................................................................................................. 4
Set a Primary Controller ...................................................................................................................... 4
Configure Devices ............................................................................................................................... 4
Verify Connections and Lock Network ................................................................................................ 5
Assign Main Device ............................................................................................................................. 5
Calibrate each device .......................................................................................................................... 5
Set Passwords ..................................................................................................................................... 5
Edit Service Screen .............................................................................................................................. 5
User Settings ....................................................................................................................................... 6
Wi-Fi Setup .......................................................................................................................................... 6
Menu Structure .......................................................................................................................................... 7
Mesh Configuration Options ........................................................................................................... 9
⚠
WARNING! IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
Warning: To avoid fire or electrocution.
Identify GFCI breaker at distribution panel and turn off power before attempting to service or install equipment.
Only install the touch controller to a single gang box rated for outdoor use.
Make motor connections in an all-weather junction box as high as possible in the cover box.
Install this device in accordance with national and local electrical codes (NEC 680-26).
Electrical wiring and service work should only be performed by a qualified individual.
Warning: To avoid injury or drowning.
The control switch must be mounted in a fixed location where 100% of the pool surface is visible.
Installation Notes
Use water tight connections at all wire junction locations.
Install device in location where exposure to sun and water sources (e.g. sprinklers, water downspouts) are limited.
Make sure all gaskets are undamaged and are clean and free of dirt and debris.
To reverse motor spin directions, see the "Configure Devices" section in "Standard Setup Procedure."
The power circuit should be sized for 15 amps and must be sized accordingly.
Perform a pool calibration on touch pad after installation for accurate current limits and operational cycle counts.
Wi-Fi features require a Wi-Fi network to be present and associated to the device to receive alerts.
Keep remote devices in line of sight of controlling devices for best performance.
L0311 Rev 3 6-21
Installation Instructions
© Latham Pool Products, Inc. 2021. All rights reserved.
Page 1 of 9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POOL Latham
Summary of Contents for POOL Latham
-
Page 1: Table Of Contents
Electrical wiring and service work should only be performed by a qualified individual. Warning: To avoid injury or drowning. The control switch must be mounted in a fixed location where 100% of the pool surface is visible. Installation Notes ... -
Page 2: Product Summary
Product Summary: Product Applications: The touch screen pool cover controller is designed to operate all of Electric 3 Wire motor offerings Latham’s 3 wire motor offerings either directly or through a control Hydraulic systems (with compatible control board) board. -
Page 3: Wiring Description
Option 2: High Voltage Motor Connect AC leads, Connect AC leads, Match motor wiring, Cap Motor leads Connect all grounds Leads Leads Motor Leads L0311 Rev 3 6-21 Page 3 of 9 © Latham Pool Products, Inc. 2021. All rights reserved. -
Page 4: Standard Setup Procedure
1. Access the Setup Menu 2. Select Device Setup to enter the Device Setup Menu. 3. Select Device Setup to select a device to configure. L0311 Rev 3 6-21 Page 4 of 9 © Latham Pool Products, Inc. 2021. All rights reserved. -
Page 5: Verify Connections And Lock Network
4. Select the top Node listed to configure the device you’re operating. Enable Connection: If the device is wired to a pool cover through a motor or motor control board select enabled. If the device is only wired to power and is remotely controlling another device, select “disabled.”... -
Page 6: User Settings
3. Tap under Company Name to input a desired name. 4. Tap under Telephone to input a telephone number. 5. Tapping the button under the brand logo will allow switch between Coverstar and Pool Cover Specialists logos. User Settings 1. Log into the device using any user code and navigate to the Setup Menu. -
Page 7: Menu Structure
The Other Covers button will allow the user to select other covers in the network to operate if available. Cover Operation Screen: Allows operation of a pool cover via the Open and Close buttons. For safety, the cover will only operate when an operation button is held. - Page 8 Other Covers Lock (Unlock): iv) Setup (1) Set Passwords Locks or Unlocks the Latham Mesh Network. When the network is (2) User Settings unlocked, other unlocked devices will automatically connect to each (a) Key Beep other. Locking the network will assign the connected devices to each (b) Touchpad Timeout other and not allow new devices to connect.
-
Page 9: Mesh Configuration Options
Spa and Pool: A touch controller is wired to pool cover is located near pool. An additional touch controller is wired to a spa pool cover and is located near the spa. Both controllers can operate both covers and one can be setup to connect to the internet for notifications.
