Use and maintenance manual
Round belt welder
Model: PRC-15
____________________________________________________________________________________________________________________
(Original) Use and maintenance manual
Type: Round belt welder
Model: PRC-15
IMPORTANT:
Read this user manual and follow the instructions and warnings before operating this device.
Any modification or transformation performed on this machine may cause loss of the
manufacturer's guarantee and liability.
This manual must always remain near to the machine and visible to all the operating and
maintenance staff, for any future consultation, forming part of the equipment.
www.ermengineering.com
info@ermengineering
✆
(+34)937632525
P a g . 1
Advertisement
Table of Contents
Related Manuals for ermengineering PRC-15
Summary of Contents for ermengineering PRC-15

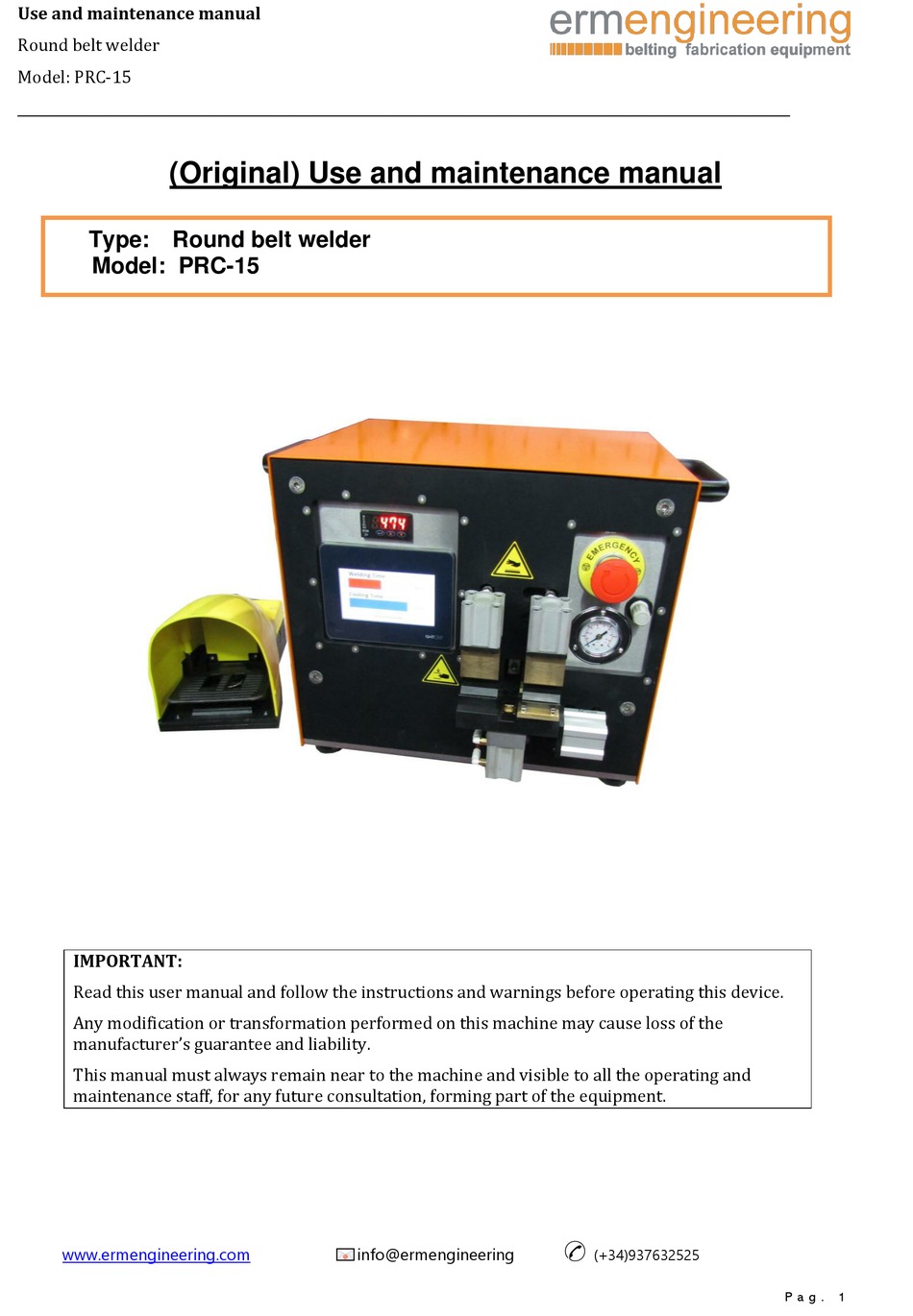

- Page 1 Use and maintenance manual Round belt welder Model: PRC-15 ____________________________________________________________________________________________________________________ (Original) Use and maintenance manual Type: Round belt welder Model: PRC-15 IMPORTANT: Read this user manual and follow the instructions and warnings before operating this device. Any modification or transformation performed on this machine may cause loss of the manufacturer’s guarantee and liability.
-
Page 2: Table Of Contents
Use and maintenance manual Round belt welder Model: PRC-15 ____________________________________________________________________________________________________________________ Index: Page CE Declaration of Conformity: ............................... 3 Description: ....................................4 Technical characteristics:................................ 4 Installation and connection: ..............................4 Using instructions: ..................................4 Temperature programming ....................................5 Time scheduling ........................................6 Pressure adjustment ....................................... -
Page 3: Ce Declaration Of Conformity
Use and maintenance manual Round belt welder Model: PRC-15 ____________________________________________________________________________________________________________________ - CE Declaration of Conformity WE DECLARE, under our responsibility, that the machine: - Type: Round belt welder - Brand: ERM Engineering - Model: PRC-15 - Serial No.: xxxxxx - Manufacturer date: 2021... -
Page 4: Description
Use and maintenance manual Round belt welder Model: PRC-15 ____________________________________________________________________________________________________________________ - Description: Welding equipment for heat-weldable round belts with a heating plate that is automatically interposed between the two ends of the belt at a certain temperature and time, and automatically withdraws, closing the joint and cooling. -
Page 5: Temperature Programming
Use and maintenance manual Round belt welder Model: PRC-15 ____________________________________________________________________________________________________________________ Note: We must wait 2/3 minutes once the temperature is reached for the heat of the solder plate to stabilize. Temperature programming To set the desired temperature, press once on the (F) key of the controller where the programmed temperature will be shown, and then we will modify the value through the arrows (G and H). -
Page 6: Time Scheduling
Use and maintenance manual Round belt welder Model: PRC-15 ____________________________________________________________________________________________________________________ Time scheduling To enter the welding and cooling times, we must touch on the screen on the numerical value to the right of each time bar, and another screen will open with a keyboard to enter the value (always in seconds) and accept it by pressing ENTER. -
Page 7: Strap Introduction
Use and maintenance manual Round belt welder Model: PRC-15 ____________________________________________________________________________________________________________________ To regulate the closing stroke mechanically, we will adjust the bolt located at the bottom of the sliding base with an 8mm wrench. Strap introduction WARNING: For this operation, it is important that the operator leaves enough space between the fingers and the end of the belt to avoid entrapment of the jaws. - Page 8 Use and maintenance manual Round belt welder Model: PRC-15 ____________________________________________________________________________________________________________________ WARNING: ATTENTION: During the welding cycle, the heating plate is outside the protective compartment, which may cause serious burns. For this reason, it is recommended to exercise extreme caution during this operation, keeping the extremities away from this area.
-
Page 9: Electrical Schemes
Use and maintenance manual Round belt welder Model: PRC-15 _________________________________________________________________________________________________________________________________________________________________________ - Electrical schemes: P a g 9... - Page 10 Use and maintenance manual Round belt welder Model: PRC-15 _________________________________________________________________________________________________________________________________________________________________________ P a g 1 0...
- Page 11 Use and maintenance manual Round belt welder Model: PRC-15 _________________________________________________________________________________________________________________________________________________________________________ P a g 1 1...
- Page 12 Use and maintenance manual Round belt welder Model: PRC-15 _________________________________________________________________________________________________________________________________________________________________________ P a g 1 2...
- Page 13 Use and maintenance manual Round belt welder Model: PRC-15 _________________________________________________________________________________________________________________________________________________________________________ P a g 1 3...
- Page 14 Use and maintenance manual Round belt welder Model: PRC-15 _________________________________________________________________________________________________________________________________________________________________________ P a g 1 4...
