Use and maintenance manual
Longitudinal profile welding
Model: LRW-200
____________________________________________________________________________________________________________________
Type:
Longitudinal profile welding 2000 mm
Model: LRW-200
IMPORTANT:
Read this user manual and follow the instructions and warnings before operating this device.
Any modification or transformation performed on this machine may cause loss of the
manufacturer's guarantee and liability.
This manual must always remain near to the machine and visible to all the operating and
maintenance staff, for any future consultation, forming part of the equipment.
www.ermengineering.com
(Original) Use and maintenance manual
info@ermengineering
✆
(+34)937632525
P a g . 1
Advertisement
Table of Contents
Related Manuals for ermengineering LRW-200
Summary of Contents for ermengineering LRW-200

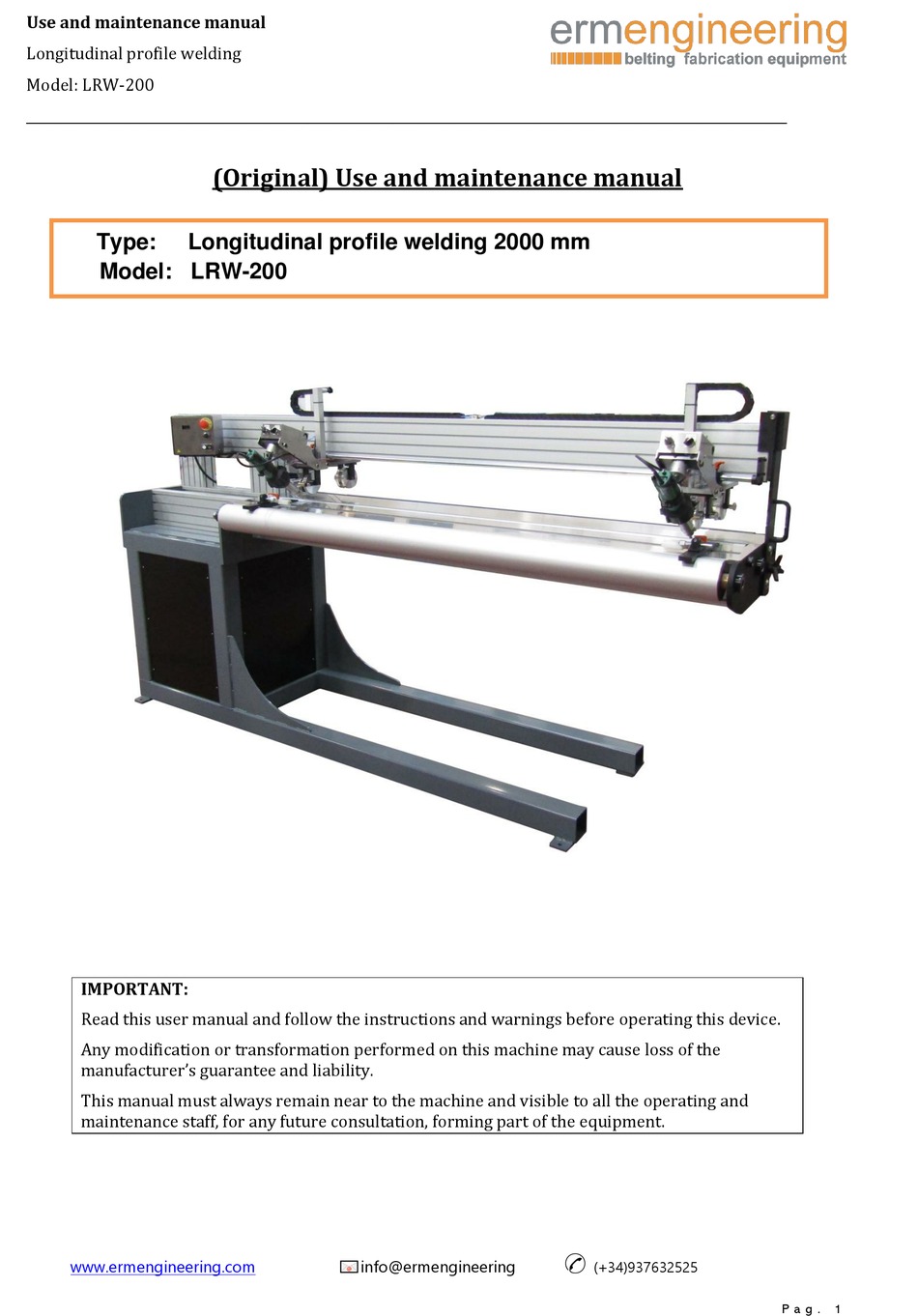

- Page 1 Use and maintenance manual Longitudinal profile welding Model: LRW-200 ____________________________________________________________________________________________________________________ (Original) Use and maintenance manual Type: Longitudinal profile welding 2000 mm Model: LRW-200 IMPORTANT: Read this user manual and follow the instructions and warnings before operating this device. Any modification or transformation performed on this machine may cause loss of the manufacturer’s guarantee and liability.
-
Page 2: Table Of Contents
Use and maintenance manual Longitudinal profile welding Model: LRW-200 _______________________________________________________________________________________________________________________ Index: Page CE Declaration of conformity: ..............................3 Description: ....................................4 Technical Characteristics: ............................... 4 Standard equipment: ................................4 Optional equipment: ................................. 4 Warnings and safety:................................. 4 Installation and start-up:................................. 5 Electrical Connection: ................................ -
Page 3: Ce Declaration Of Conformity
Use and maintenance manual Longitudinal profile welding Model: LRW-200 _______________________________________________________________________________________________________________________ - CE Declaration of conformity: WE DECLARE, under our responsibility, that the machine: - Type: Longitudinal welder - Brand: ERM Engineering - Model: LRW-200 - Serial No.: xxxxxx - Manufacturer date: 2021... -
Page 4: Description
Use and maintenance manual Longitudinal profile welding Model: LRW-200 _______________________________________________________________________________________________________________________ - Description: Continuous longitudinal profile welder for conveyor belts using a jet of hot air at the point of intersection of the two materials. Fitted with speed, temperature and pressure controls for different types of material. -
Page 5: Installation And Start-Up
Use and maintenance manual Longitudinal profile welding Model: LRW-200 _______________________________________________________________________________________________________________________ − During use of the machinery and industrial use, people are subject to the risk of damage or injury by mechanical elements in linear or gyrating movement, high voltage electric components and static components under high temperature, due to which, during design and construction of its equipment, ERM Engineering. -
Page 6: Using Instructions
Use and maintenance manual Longitudinal profile welding Model: LRW-200 _______________________________________________________________________________________________________________________ - Using instructions: Select and change, if necessary, the pulley corresponding to the profile to be processed by the machine: Place the belt on the welding table and centre the side guides so that the belt advances evenly and without any side travel. - Page 7 Use and maintenance manual Longitudinal profile welding Model: LRW-200 _______________________________________________________________________________________________________________________ For endless belts, remove the bolt of arm and open it. Once the belt is placed in position, close the frame using the arm and fix the bolt again to prevent any movement or deformation caused by the pressure of the pulleys.
- Page 8 Use and maintenance manual Longitudinal profile welding Model: LRW-200 _______________________________________________________________________________________________________________________ Lower the pulleys using the drive system located on the front of the welding carriage so that they press the belt and are driven by turning the control knob (P):...
- Page 9 Use and maintenance manual Longitudinal profile welding Model: LRW-200 _______________________________________________________________________________________________________________________ Change the position of the welder by first loosening the screws (R) and then tightening them again once it is adjusted: Note that any changes made to the temperature will not become effective until a few minutes have elapsed.
- Page 10 Use and maintenance manual Longitudinal profile welding Model: LRW-200 _______________________________________________________________________________________________________________________ NOTE: Check the weld by attempting to pull the welded joint apart. It should not come apart cleanly, that is, without tearing. If this test is to be performed on a profile welded to fabric, wait at least 12 hours to allow the components of the size to set before performing the test.
-
Page 11: Care And Maintenance
Use and maintenance manual Longitudinal profile welding Model: LRW-200 _______________________________________________________________________________________________________________________ After overlapping the weld and once the profile has cooled, cut it and form the excess to match the original shape. Shut the welder down by adjusting the temperature of the Leister to 0 and allowing it to operate for about 5 minutes to cool the heater element. -
Page 12: Electrical Drawings
Use and maintenance manual Longitudinal profile welding Model: LRW-200 _________________________________________________________________________________________________________________________________________________________________________ - Electrical drawings: P a g 1 2... -
Page 13: Pneumatic Drawings
Use and maintenance manual Longitudinal profile welding Model: LRW-200 _________________________________________________________________________________________________________________________________________________________________________ - Pneumatic drawings:_ P a g 1 3... -
Page 14: Spare Parts
Use and maintenance manual Longitudinal profile welding Model: LRW-200 _________________________________________________________________________________________________________________________________________________________________________ - Spare parts: P a g 1 4... - Page 15 Use and maintenance manual Longitudinal profile welding Model: LRW-200 _________________________________________________________________________________________________________________________________________________________________________ P a g 1 5...
