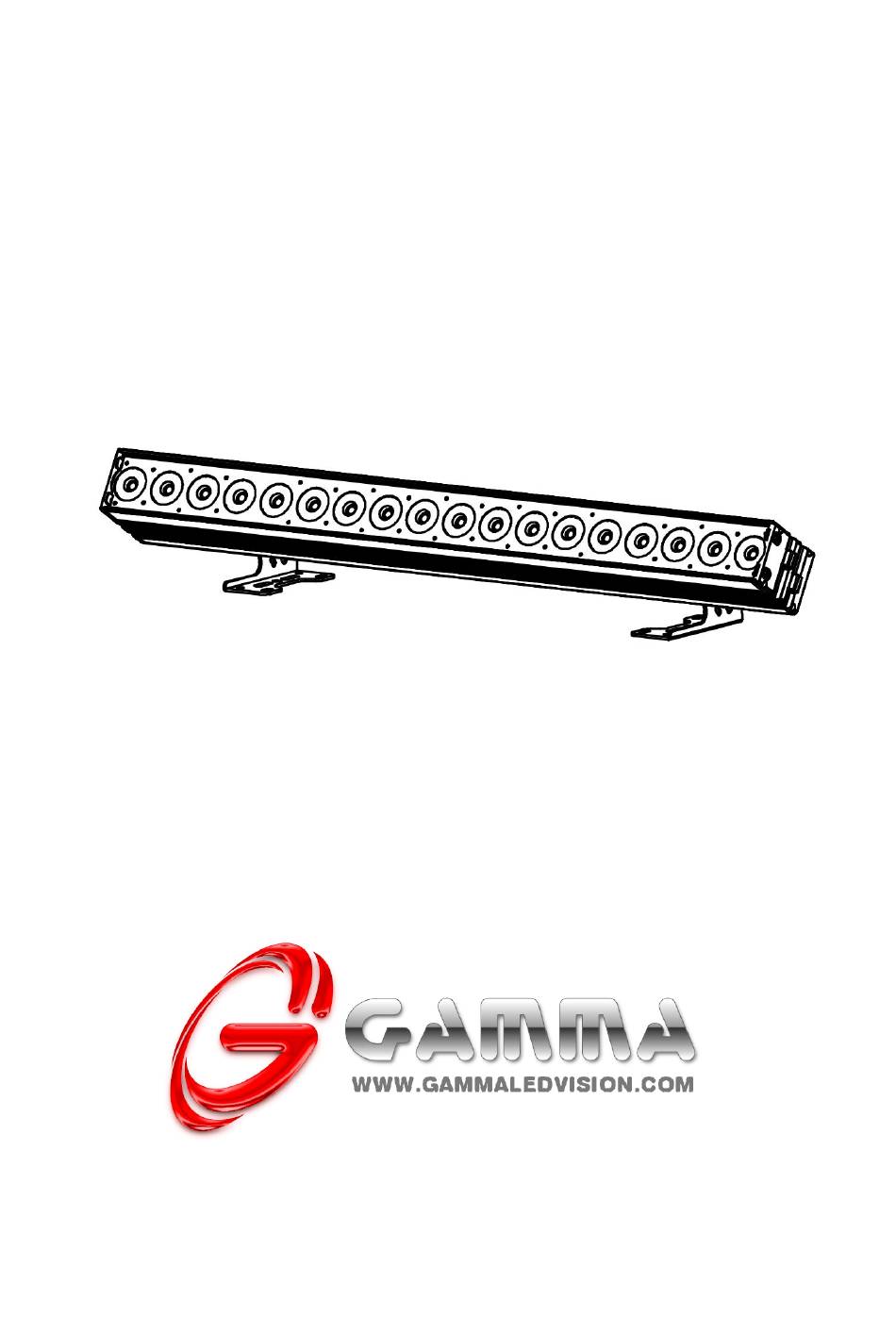

- Page 1 Starburst Versa 18x30w RGBWA+UV (6IN1) User Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction and Setup ............................. 3 Unpacking and In the Box ..........................3 Features ..................................3 Safety Precautions………………………………………………………………………………………………………………..4 Customer Support………………………………………………………………………………………………………………..5 2. Setup & Operation……………………………………………………………………………………………………………….6 LCD Buttons Operation………………………………………………………………………………………………………...6 Menu Operation………………………………………………………………………………………………………………..7/8 DMX Setup……………………………………………………………………………………………………………………………9 DMX Basics/Wiring…………………………………………………………………………………………………………10 DMX Modes/Channels……………………………………………………………………………………….12/13/14/15 3. Maintenance……………………………………………………………………………………………………………………….16 4. -
Page 3: Introduction And Setup
• Mounting and Operation Use a clamp rated for the full weight of the Starburst Versa to hang the fixture from the mount(s) on the fixture’s yoke. As an added safety measure be sure to attached at least one properly rated safety cable to the fixture using on of the safety cable rigging point integrated in the base assembly or on the yoke. -
Page 4: Safety Precautions
fixtures together horizontally, align the grooves and connect the quick release pins on each side for a seamless design. 4. Horizontal Hanging Installation: Using the Omega Brackets, each fixture should get 2 Omega brackets locked into the backside of the fixture. Then attach a clamp on each one and you’re now ready to horizontally hang the fixture. -
Page 5: Customer Support
Customer Support WARRANTY POLICY GAMMA LED Vision warrants its products for the periods set below from the date of purchase to be free of manufacturer and workmanship defects. Warranty does not cover normal wear and tear caused by force, negligence or misuse of products. GAMMA LED Vision is not responsible for any damages or injury caused by misuse or improper handling of the products and in accordance with instructions and specifications of manual. -
Page 6: Setup & Operation
2. Setup and Operation Using the LCD Menu and Buttons Turn on the light, press the MENU button to enter the menu mode, use the UP and DOWN buttons to find the menu, When the preset menu is displayed on the display screen, press the ENTER button to confirm, use the UP and DOWN buttons to select the sub menu, press the ENTER button to save the settings or automatically return to the... -
Page 7: Menu Operation
Menu Operation LEVEL1 LEVEL2 LEVEL3 LEVEL4 Addr(Address) 001-512 11CH Chmd(Channel mode) 29CH/11CH/119CH/108CH 0-255 0-255 0-255 Stat(Static control) 0-255 0-255 0-255 20--255 20--255 20--255 CAL(Calibration) 20--255 Set(Set) 20--255 P(UV) 20--255 Reverse YES/NO DMX HOLD ON/OFF DMX LOCK(Key 2 minutes lock) YES/NO Sound 1 AUTO 3 Sound 2... - Page 8 G (0-255) B (0-255) W (0-255) Color: 1-32 Sound Sens Sense 0-100 Dimmer Curve Curve Linear Sine 1 Sine 2 Auto Test Temp Fixture Time Firmware...
- Page 9 DMX Address Select the DMX address, press ENTER to confirm, and the current DMX address will be displayed on the display. Use UP / DOWN button to select 001-512 address, and press ENTER button to save. Press the MENU button to return to the previous menu or wait one minute for the menu mode to exit automatically.
-
Page 10: Dmx Setup
to save. Press the MENU button to return to the previous menu or wait one minute for the menu mode to exit . DMX Setup DMX Basics DMX512 stands for digital multiplex 512. This means that 512 channels are controlled digitally through 1 data cable. - Page 11 DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-pin only pins 1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at least 110 ohms resistance.
- Page 12 DMX Modes and Configuration The Starburst Versa has multiple DMX modes, sometimes called “personalities”, “profiles”, or as we will use here “modes”. In general, modes with more DMX channels offer a greater level of control or options but take up more of your output channels on your lighting console or software.
- Page 13 B dimmer B dimming,0~100% linear dimming,dark ->bright W dimmer W dimming,0~100% linear dimming,dark ->bright CH10 Y dimmer Y dimming,0~100% linear dimming,dark ->bright CH11 UV dimming,0~100% linear dimming,dark ->bright dimmer 29 Channel Mode: Channels Function Description Dimmer RGBWYUV master dimmer, 0~100% linear dimming,dark ->bright Strobe RGBWYUV master strobe, slow->fast 0--14: Empty...
- Page 14 LED4 CH15 RGBWYUV dimming dimmer ....... LED18 CH29 RGBWYUV dimming dimmer 108 Channel Mode: Channels Function Description R1 dimmer R1 dimming,0~100% linear dimming,dark ->bright G1 dimmer G1 dimming,0~100% linear dimming,dark ->bright B1 dimmer B1 dimming,0~100% linear dimming,dark ->bright W1 dimmer W1 dimming,0~100% linear dimming,dark ->bright A1 dimmer...
- Page 15 B dimmer B dimming,0~100% linear dimming,dark ->bright(priority)) W dimmer W dimming,0~100% linear dimming,dark ->bright(priority) CH10 Y dimmer Y dimming,0~100% linear dimming,dark ->bright(priority) CH11 UV dimmer UV dimming,0~100% linear dimming,dark ->bright(priority) R1 dimmer R1 dimming,0~100% linear dimming,dark ->bright G1 dimmer G1 dimming,0~100% linear dimming,dark ->bright B1 dimmer B1 dimming,0~100% linear dimming,dark ->bright W1 dimmer...
-
Page 16: Maintenance
3. Maintenance Routine Maintenance The cleaning of lens must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smokey, or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. •... -
Page 17: Technical Specifications
4. Technical Specifications Voltage:AC100~240V,50/60HZ ¬ Light source: (18) 30 watt - RGBWAUV (6in1) LED’s ¬ DMX Channel:11/29/108/119CH ¬ Dimmer: High resolution dimmer 0~100% ¬ Lenses: 45mm 10/12/25/40degree optional ¬ Pixel Pitch: 52MM ¬ Filter: Quick release diffusion filter ¬ RDM: Supported ¬...
