Thank you for choosing a WELL product. Please read carefully the following instructions and keep them within reach in order to avoid damage due to incorrect use.
Please pay particular attention to the safety information.
SPECIFICATIONS:
Diameter: 40 cm
Power: 45W
Voltage: 220-240V
Frequency: 50/60 Hz
3 speed motor: 950RPM- 1100RPM- 1250RPM
Color: white
Cross base: 60* 60 cm
Height: 1.1 M- 1.3 M adjustable
Oscillation: 90 degree
Noisy level: : <65 dB
Mesh grill

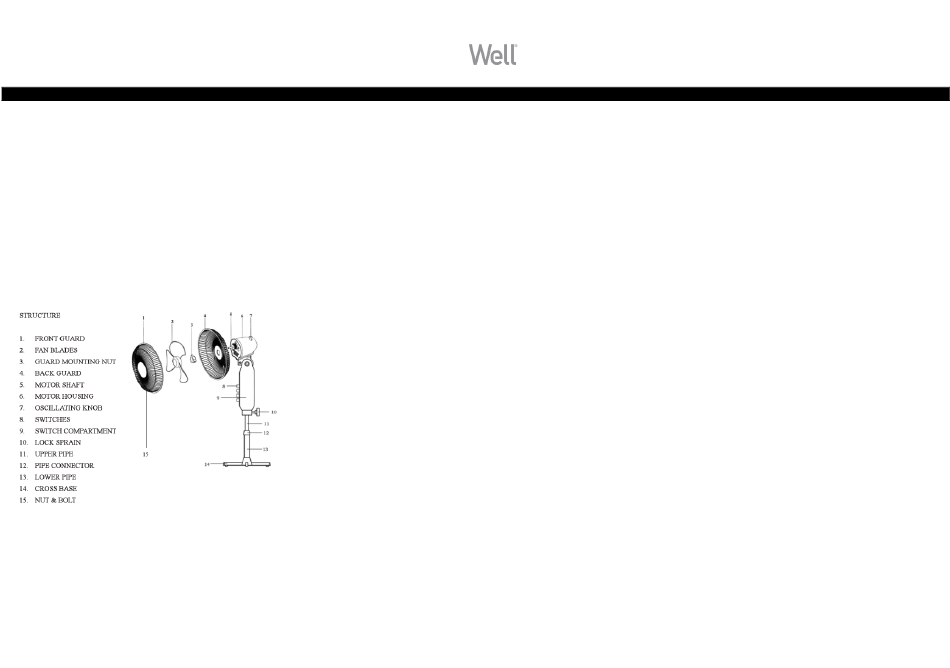

INSTRUCTION FOR ASSEMBLY.
1.
Be sure to shut off electric supply at main switch or circuit breaker before installation.
2.
Secure lower pipe with pipe support to the hub of cross base with screws provided.
3.
Extend upper pipe, insert the pipe connector through upper pipe onto lower pipe and tighten.
4.
Attach the motor with switch compartment onto the upper pipe. Ensure the switch compartment is pushed fully onto the upper pipe and secured with the screw provided.
5.
Loosen guard mounting nut from the motor housing.
6.
Position back guard firmly to motor housing and then fasten by turning guard mounting nut clockwise tightly.
7.
Push the blade along motor shaft and fasten firmly with the mounting nut..
8.
Hang the front guard to back guard with the position fixer provided at the rim of guard, and then fix together with clips provided. The guard bottom nut & bolt must be fitted to ensure secure fitting.
MANUAL DE UTILIZARE
Cod: FAN-STAND-CHILLY-WL
ENGLISH
Advertisement
Table of Contents
Related Manuals for Well FAN-STAND-CHILLY-WL
Summary of Contents for Well FAN-STAND-CHILLY-WL
- Page 1 MANUAL DE UTILIZARE Cod: FAN-STAND-CHILLY-WL ENGLISH Thank you for choosing a WELL product. Please read carefully the following instructions and keep them within reach in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. SPECIFICATIONS:...
- Page 2 WARNING: Improper installation may result risk of fire, electric shock, or serious injury to persons. If the supply cord is damaged, it must be replaced by qualified service persons in order to avoid a hazard. To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely.
- Page 3 ROMANA Vă mulţumim că aţi ales un produs WELL! Vă rugăm citiţi cu atenţie instrucţiunile de mai jos şi să le păstraţi la îndemână. În manual apar cele mai importante instrucţiuni de sigurantă şi atenţionări, dar acesta nu acoperă toate posibilităţile ce pot apărea pe parcursul folosirii. Este responsabilitatea şi interesul fiecărei utilizator folosirea aparatelor cu atenţie, grijă, şi cu respectarea instrucţiunilor de protecţie în vederea evitării accidentelor şi deteriorării produsului.
- Page 4 INSTRUCŢIUNI DE ASAMBLARE: Pentru eviterea accidentelor, înainte de asamblare asiguraţi-vă că aparatul este deconectat de la reţeaua electrică. Fixaţi stâlpul de susţinere în baza ventilatorului cu ajutorul şuruburilor şi aşezaţi capacele din plastic pe piciorul ventilatorului. Ataşaţi tubul de extensie în stâlpul de susţinere al ventilatorului şi fixaţi-l cu ajutorul elementului de fixare. Înseraţi cutia de control pe tubul de extensie asigurându-vă...
- Page 5 MAGYAR Köszönjük, hogy WELL terméket választott! Kérjük olvassa el figyelmesen és tartsa kéznél a használati utasítást! A termék helytelen használata károkat okozhat! Kérjuk fordítson figyelmet a használati utasításban feltüntetett legfontosabb biztonsági eljárásokra, használja a terméket vigyázattal és odafigyeléssel a balesetek elkerülése végett.
- Page 6 15. Csavar és anya ÖSSZESZERELÉSI ÚTMUTATÓ: Mielőtt az összeszerelést elkezdené, a balesetek elkerülése végett bizonyosodjon meg, hogy a tápkábel csatlakozója el van távolítva a hálózati konnektorból. Rögzítse a ventilátort tartó oszlopot a talapzathoz a rendelkezésre álló csavarok segítségével és helyezze a 4 csuszás gátlót a talapzat lábaira. Illessze a hosszabító...
