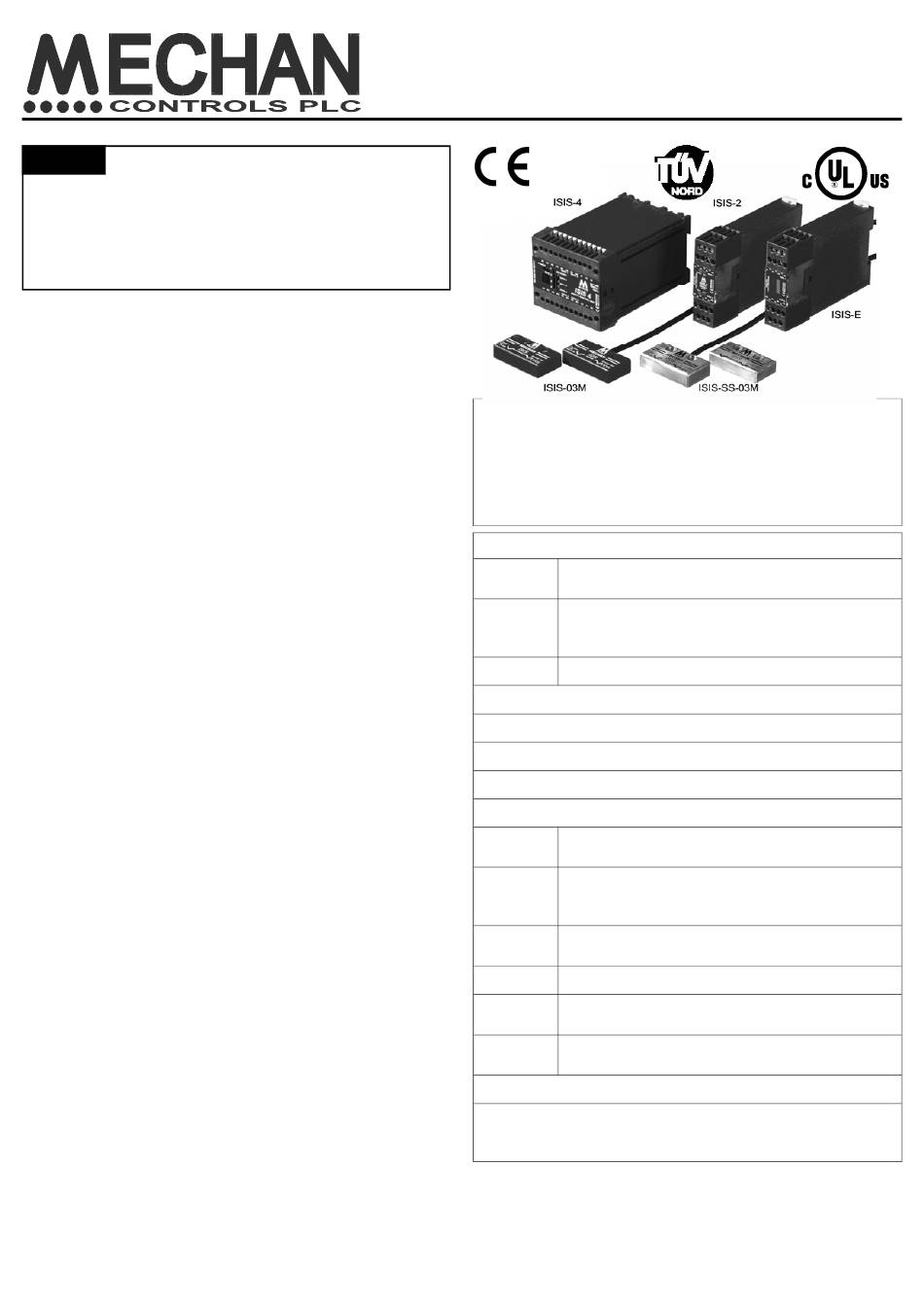

Mechan ISIS Installation Manual

CAUTION
This information is designed to help suitably qualified
personnel install and operate Mechan Safety Switch
equipment. Before using this product, read this guide thoroughly along with
any relevant European and/or National standards e.g. Machinery Directive
89/392/EEC and it's amendments, Provision and Use of Work Equipment
Regulations.
Further information can be obtained from Mechan Controls PLC
***** KEEP THIS GUIDE FOR FUTURE REFERENCE *****

DESCRIPTION

The ISIS safety system is a tamper resistant non-contact
safety switch system, suitable for use in most types of
machine guarding applications where guard locking is not
required. The system comprises of a control unit and 1 or
more safety switches and actuators. The ISIS non-contact
safety switches are easy to install, tolerant to misalignment
and suitable for use in harsh or wet environments.
ISIS-4 - Control Unit
The ISIS-4 is a combined Safety Switch and E-Stop control
unit. Along with the ability to monitor up to four ISIS safety
switches it can also monitor the normally closed contacts of
emergency stop buttons or mechanical safety switches in
dual channel control circuits.
The ISIS-4 has 2 normally open safety contact outputs and 1
normally closed auxiliary output, an external re-set/proving
circuit and LED indication for 'Power', 'Run' and the status of
each activated gate switch.
ISIS-2 - Control Unit
The ISIS-2 control unit is a 24V ac/dc system that can
monitor up to 2 ISIS safety switches.
The ISIS-2 has 2 normally open safety contact outputs and 1
normally closed auxiliary output, an external re-set/proving
circuit and LED indication for 'Power', 'Run' and the status of
each activated gate switch.
ISIS-E - Extender Module
The ISIS-E Extender module is a 24V ac/dc unit that can be
added to either the ISIS-4 or ISIS-2 to monitor an additional
5 ISIS safety switches. Connection to the main control unit is
by a simple 2-wire bus connection. The status of each guard
switch is shown by the YELLOW LED's. Additional ISIS-E
extender modules can be added to monitor larger systems.
ISIS-03M / ISIS-SS-03M - Safety Switches
The ISIS safety switches are non-contact, tamper resistant
safety switches. Resin encapsulated into an ABS or
Stainless Steel case providing environmental protection to
IP67, the switches can withstand most conditions including:
water, dust and high pressure hose cleaning.
The 2-wire connection to each safety switch is
monitored by the control unit, detecting both open and
short circuit faults immediately and returning the control
unit to the off state even if the gate is not operated.
___________________________________________________________________________________
Pneutrol International Limited
UK Office
5 Caulside Drive, Antrim, BT41 2DU
United Kingdom
TEL: +44 (0) 28 9448 1800
www.pneutrol.com/industrialspares
ISIS
SAFETY SYSTEM

APPLICATIONS

Interlocked guards where door locking is not required.
Food and Beverage packing/filling systems; Diary,
Pharmaceutical, Paper Industry, Can Forming and Filling,
(Aluminum, Steel, Plastic), Semiconductor Manufacture/
Assembly. Concrete Block Manufacture.

APPROVALS

CE Complies with the relevant sections of the CE
marking directive.
UL Tested by the Underwriters Laboratories, USA,
to comply with the relevant USA and Canadian
requirements. UL 508 Industrial Control
TUV CAT 3 SIL 3 PLe

EUROPEAN DIRECTIVES

Machinery Directive 2006/42/EC
Low Voltage Directive 2006/95/EC
Electromagnetic Compatibility Directive 2004/108/EC

EUROPEAN STANDARDS

EN ISO Safety of Machinery - Safety related parts of
13849-1 control systems
EN ISO Safety of Machinery - Functional safety of safety
62061 related electrical,
programmable electronic control systems
EN 60204 Safety of Machinery - Electrical equipment of
machines.
EN 1088 Interlocking devices associated with guards.
EN 60947- Low voltage switchgear and control gear.
5-1
EN Safety of Machinery - Specification for low
60947-5-3 voltage switchgear and control gear.

CERTIFICATE OF CONFORMITY

A certificate of conformity can be supplied covering Mechan
non-contact safety switch equipment.
Call our technical help-line on +44 (0)1695 722264
sales@pneutrol.com
European Office
Unit 6, Saint Anthony's Business Park, Ballymount Road, D22 VW95
Ireland
TEL: +353 (0) 1 4373653
www.pneutrol.com/industrialspares
Installation guide
and electronic and
