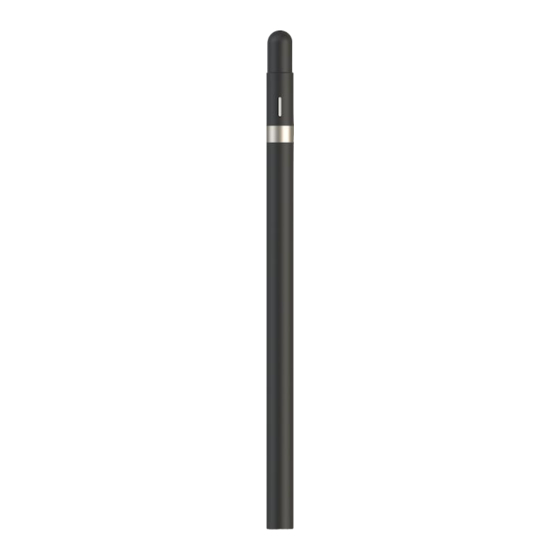

M2 ION CHAMBERS WITH GAS FLOW
™
EXRADIN
T2 ION CHAMBERS WITH GAS FLOW
™
U S E R
M A N U A L
Standard Imaging, Inc. // 3120 Deming Way // Middleton, WI 53562 USA
TEL 608.831.0025 // TEL 800.261.4446 // FAX 608.831.2202
www.standardimaging.com
©2020 Standard Imaging, Inc. // July 2020 // DOC #80652-01
Advertisement
Table of Contents
Related Manuals for Standard Imaging EXRADIN M2
Summary of Contents for Standard Imaging EXRADIN M2

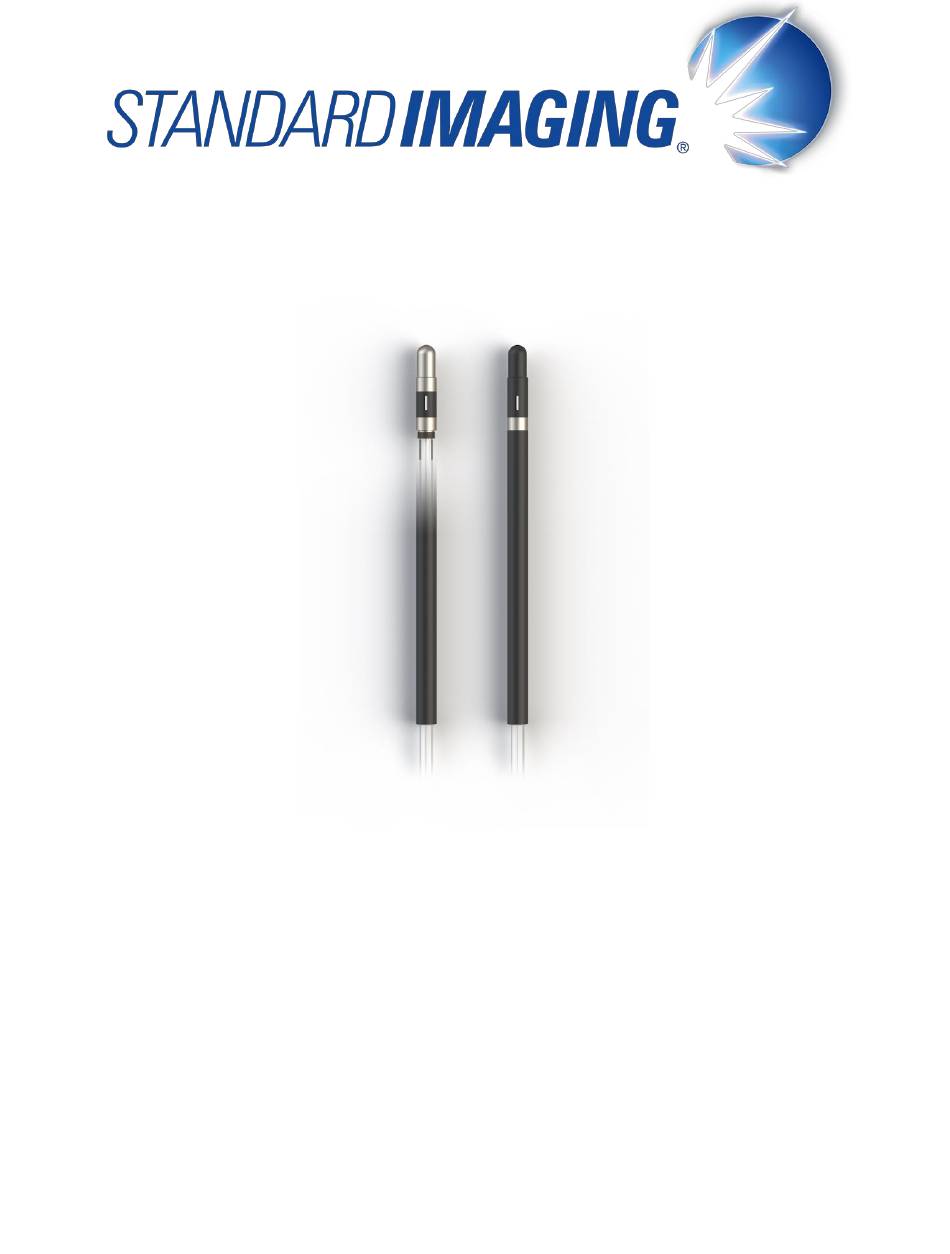

- Page 1 ™ U S E R M A N U A L Standard Imaging, Inc. // 3120 Deming Way // Middleton, WI 53562 USA TEL 608.831.0025 // TEL 800.261.4446 // FAX 608.831.2202 www.standardimaging.com ©2020 Standard Imaging, Inc. // July 2020 // DOC #80652-01...
-
Page 2: General Precautions
This manual applies to the following thimble chamber models: Model M2 with Gas Flow 92742 T2 with Gas Flow 92743 EXRADIN M2 & T2 ION CHAMBER WITH GAS FLOW... -
Page 3: Table Of Contents
Cleaning Triax Connectors on Ion Chambers and Extension Cables ......... 10 WARRANTY STATEMENT – 4424-17 ..........................12 Serialization Information ................................. 14 Customer Care Policy Statement ............................. 14 Customer Responsibility ................................15 Service Policy ....................................16 Return Policy ....................................16 EXRADIN M2 & T2 ION CHAMBER WITH GAS FLOW... -
Page 4: General Operation
However, it is good practice to pause a minute or two after changing the potential to allow switching transients induced in the electrometer to completely subside. Such transients are most evident in the rate (current) mode. EXRADIN M2 & T2 ION CHAMBER WITH GAS FLOW... -
Page 5: Operating Instructions
If measured in the presence of background sources, note that this signal will add to the leakage of the chamber. 6. Some electrometers, such as the Standard Imaging MAX-4000 Electrometer, allow the user to zero the device at any time. If desired, perform this system zeroing now. -
Page 6: Calibration
Dosimetry Calibration Laboratory (ADCL). Standard Imaging offers calibrations from the University of Wisconsin ADCL. You need only one purchase order to cover calibrations, shipping and handling, and service. Standard Imaging hand carries all instruments to and from the University of Wisconsin ADCL. - Page 7 Outside Diameter of Shell Collecting Volume: 11.4 mm Wall Thickness: 1.0 mm Shell, Collector, and Guard Material: M2 – Magnesium (99.5% pure) T2 – Shonka Tissue-Equiv. plastic A150 Product Standards: IEC 60601-1 , IEC 61674 Designed to Meet EXRADIN M2 & T2 ION CHAMBER WITH GAS FLOW...
-
Page 8: Service Notes
– to thus push the vent tube off the vent port. Pulling on the vent tubes is to be avoided as such action may dislodge the vent ports and also stretch the vent tubes. EXRADIN M2 & T2 ION CHAMBER WITH GAS FLOW... -
Page 9: Underwater Operation
REF 92742 M2 with Gas Flow (magnesium) and REF 92743 T2 with Gas Flow (Shonka tissue-equivalent plastic A150) require the use of waterproof sleeves for all underwater measurements. Contact Standard Imaging to purchase a waterproofing kit or for the chamber’s exterior dimensions if you wish to create your own. -
Page 10: Activation (M2 Only)
5.6 Activation (M2 only) Due to the inherent activation of metal in epithermal neutron beams, the Exradin M2 ionization chamber can become radioactive. The activated metal in the ionization chamber (ie collector, guard and shell) could contribute more than 2% to the chamber’s signal. The primary isotope created is Mg which has a half-life of about 9.5 min. - Page 11 If this procedure does not resolve the drift or leakage issues, contact the Customer Service Administrator to coordinate the return the product to Standard Imaging for further service. If there are any questions or comments regarding this information, please contact Standard Imaging or your authorized dealer.
-
Page 12: Warranty Statement - 4424-17
6 WARRANTY STATEMENT – 4424-17 Standard Imaging, Inc. sells this product under the warranty herein set forth. The warranty is extended only to the buyer purchasing the product directly from Standard Imaging, Inc. or as a new product from an authorized dealer or distributor of Standard Imaging, Inc. - Page 13 This warranty represents the current standard warranty of Standard Imaging, Inc. Please refer to the labeling or instruction manual of your Standard Imaging, Inc. product or the Standard Imaging, Inc. web page for any warranty conditions unique to the product.
-
Page 14: Serialization Information
Standard Imaging, at its discretion, may extend customer support only to the buyer purchasing the product directly from Standard Imaging, Inc. or as a new product from an authorized dealer or distributor of Standard Imaging, Inc. This customer care statement is in lieu of all other customer support statements, express or implied, whether statutory or otherwise, including any implied statements of fitness for a particular purpose. -
Page 15: Customer Responsibility
It is the responsibility of the customer or user to determine if the Standard Imaging product can be properly used with these products or systems. -
Page 16: Service Policy
If unable to address the issue, a return material authorization (RMA) number will be issued. With the RMA number, the product can be returned to Standard Imaging. It is the responsibility of the customer to properly package, insure and ship the product, with the RMA number clearly identified on the outside of the package. - Page 17 Authorized Representative for the EU is Emergo Europe, Prinsessegracht 20, 2514 AP The Hague, The Netherlands. 3120 DEMING WAY MIDDLETON, WI 53562 USA WWW.STANDARDIMAGING.COM EXRADIN M2 & T2 ION CHAMBER WITH GAS FLOW...
