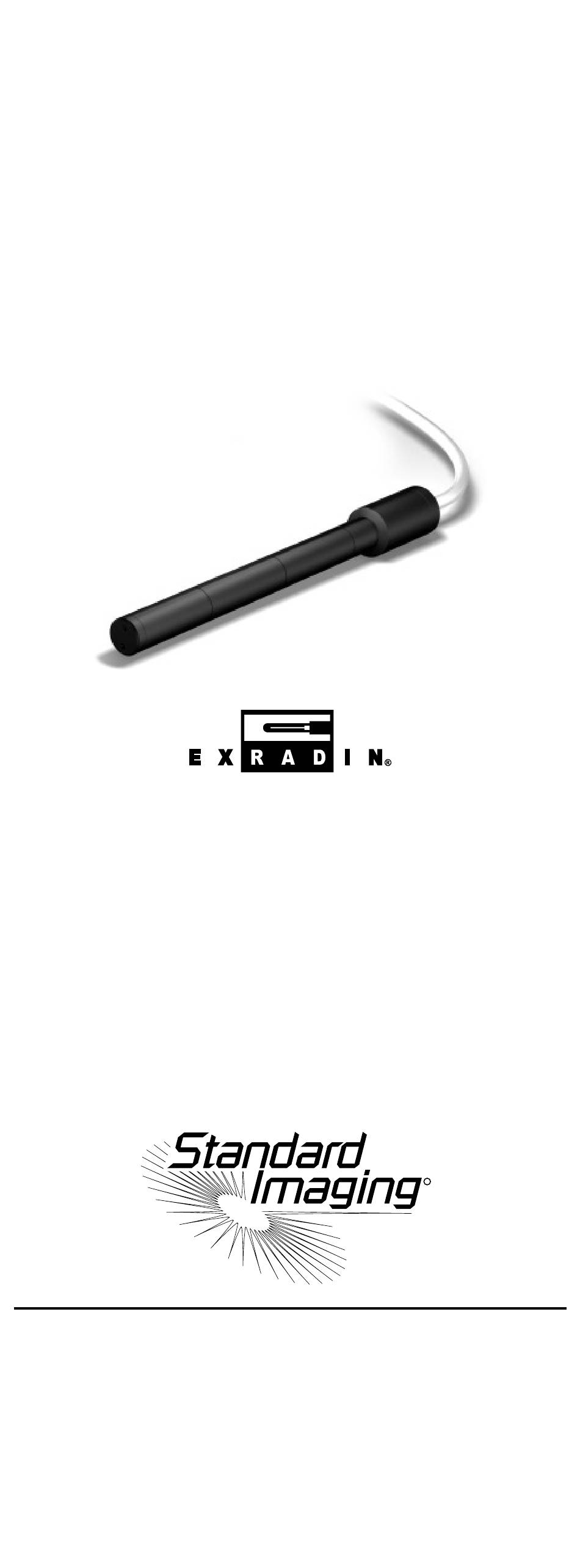

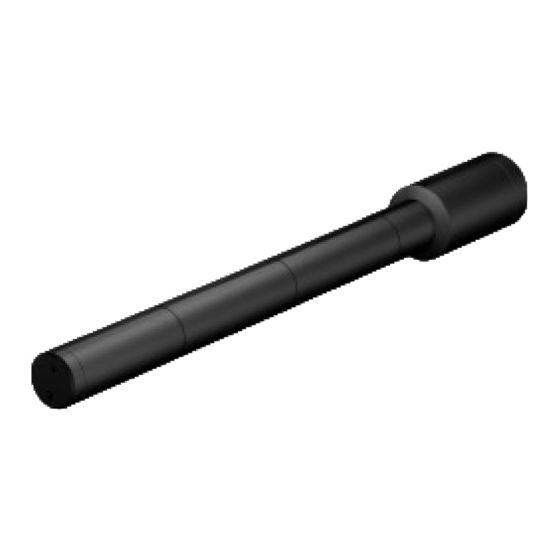

  • Page 1 A17 Slice Therapy Ionization Chamber REF 92675 User Manual...
  • Page 3 WWW. .COM A17 Slice Therapy Ionization Chamber REF 92675 STANDARD IMAGING INC. TEL 800.261.4446 7601 Murphy Drive TEL 608.831.0025 Middleton, WI 53562-2532 FAX 608.831.2202 Feb / 2005 ©2005 Standard Imaging Inc. DOC #80444-02...

  • Page 4: General Precautions

    General Precautions Warnings and Cautions alert users to dangerous con- ditions that can occur if instructions in the manual are not obeyed. Warnings are conditions that can cause injury to the operator, while Cautions can cause dam- age to the equipment. WARNING: Electrical shock hazard when connected to 300 V bias supply.

  • Page 5: Table Of Contents

    Table of Contents PAGE General Precautions General Operation Parts and Accessories Features and Specifications Service Notes Service Policy Customer Responsibility Warranty 7601 MURPHY DRIVE MIDDLETON, WI 53562-2532 USA WWW.STANDARDIMAGING.COM General Operation Exradin chambers are attached to a 1.5 m length of low- noise flexible triaxial cable that is terminated by a triaxial or coaxial connector.
  • Page 6 Such transients are most evident in the rate (current) mode. The A17 chamber is designed to have an extremely flat response across its active volume. In addition, its water- proof design and built-in wall thickness for Co energies make it a valuable tool for tomotherapy applications, such as weekly QA checks or patient dose verification.

  • Page 7: Parts And Accessories

    8. Measure atmospheric temperature and pressure. 9. Position the A17 chamber as desired, and take at least 3 measurements. Generally, the measurements should not be moving in only one direction (i.e. three readings that continue to drop and hence may not yet be stabilized).

  • Page 8: Features And Specifications

    Features and Specifications Collecting Volume: 1.91 cc Collecting Volume Length: 8.0 cm Collector Diameter: 2.4 mm Body Tube Outside Diameter: 12.7 mm Wall Thickness: 3.3 mm Chamber Length: 17.0 cm Body Tube and Guard Mate- Shonka air-equivalent C552 rial: plastic Response Uniformity over the central 8.0 cm of chamber length:...
  • Page 9 Notes...
  • Page 10 Notes...

  • Page 11: Service Notes

    Service Notes External Marks The Exradin A17 Slice Therapy Chamber is provided with (3) external groove marks on the chamber body, signifying important locations of the collecting volume. The middle groove represents the center of the axial length of the col- lecting volume.

  • Page 12: Service Policy

    (RMA) number will be issued. With the RMA number, the product can be returned to Standard Imaging. It is the responsibility of the customer to properly package, insure and ship the product, with the RMA number clearly identi- fied on the outside of the package.

  • Page 13: Customer Responsibility

    Should repair or replacement of this product become necessary after the warranty period, the customer should seek advice from Standard Imaging Inc. prior to such re- pair or replacement. If this product is in need of repair, it should not be used until all repairs have been made and the product is functioning properly and ready for use.

  • Page 14: Warranty

    Standard Imaging, Inc. sells this product under the warranty herein set forth. The warranty is extended only to the buyer purchasing the product directly from Standard Imaging, Inc. or as a new product from an authorized dealer or distributor of Standard Imaging, Inc.
