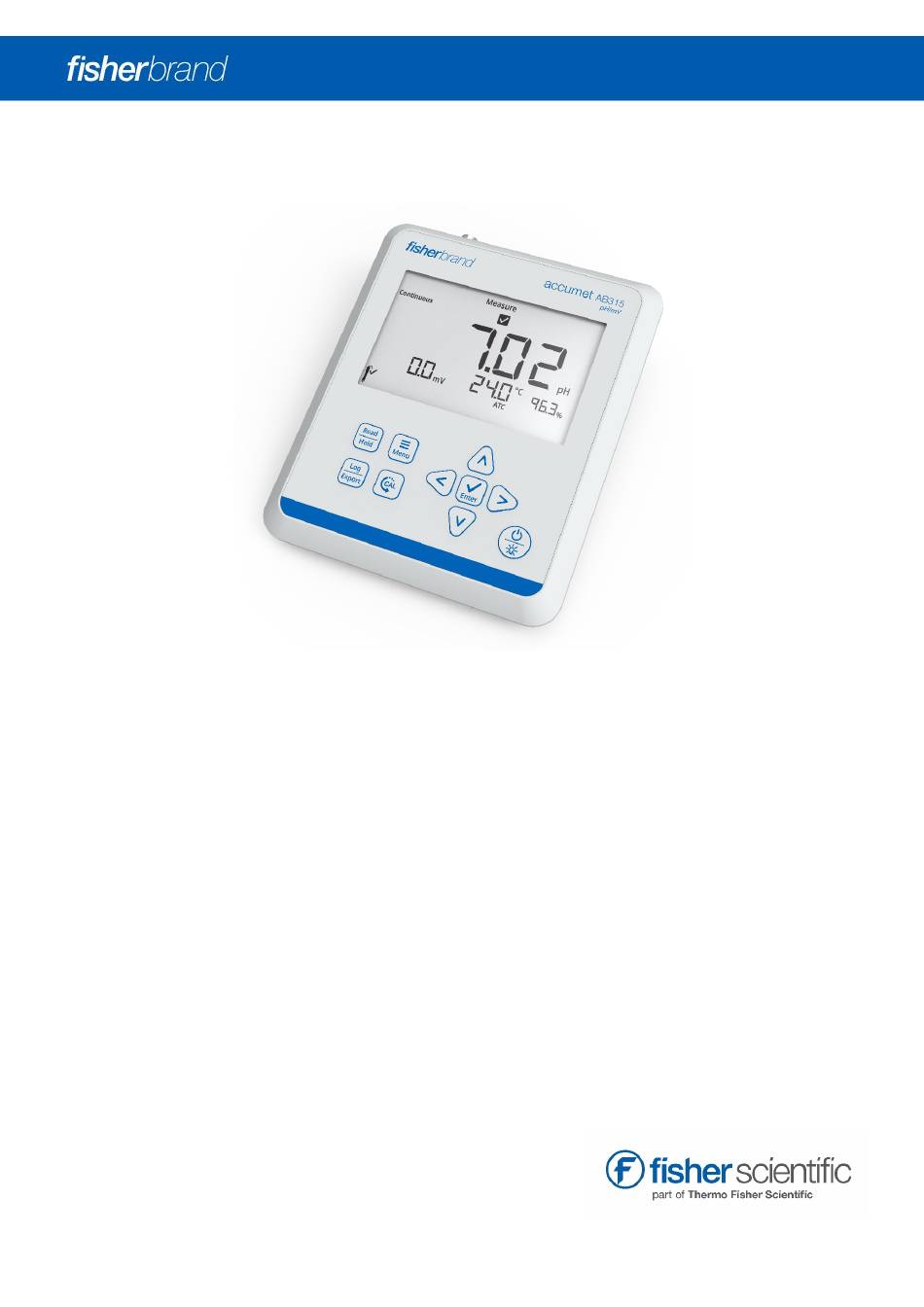

- Page 1 Operations Manual Electrochemistry Meters accumet AB315 pH/mV Meter User Manual 68X002124 | Revision 01 | September 2021...
-
Page 3: Table Of Contents
Contents Chapter 1 ..............6 Introduction ............. 6 1.1 Intended Use ........6 1.1.1 Intended Use ..........6 1.1.2 Non-Intended Use ........6 1.1.3 Safety ............6 1.1.4 Power Connection ........6 1.2 Cleaning Instructions (Meter Only) ..6 Chapter 2 ..............7 Getting Started .......... - Page 4 3.2.4a Temperature Calibration ....... 14 3.2.4b Manual Temperature Input ....14 3.2.5 Measure Mode ........15 3.2.6 pH Resolution .......... 15 3.2.7 Calibration Buffer Set ....... 15 3.2.8 Read Type ..........16 3.2.9 Timed Interval .......... 16 3.2.10 Calibration Due Alarm ......17 3.2.11 Temperature Units .........
- Page 5 Chapter 6 ............... 27 Troubleshooting ..........27 6.1 Meter Troubleshooting ......27 6.2 Measurement Troubleshooting .... 27 6.3 Technical Support ....... 27 Chapter 7 ............... 28 Meter Info ............28 7.1 Meter Specifications ......28 7.2 Meter Dimensions ....... 29 7.3 Warranty ..........
-
Page 6: Chapter 1
Before using it, verify that this product is suitable for its The accumet AB315 pH meters are capable of measuring intended use. If the product is used in a pH, mV, relative mV (RmV) and temperature and offer a... -
Page 7: Chapter 2
CAUTION: Use of a surge protector or uninterrupted power supply (UPS) is recommended, as an unintended power surge of electricity to the meter may damage the meter and void the warranty. Place the electrodes into the electrode holder. accumet AB315 pH/mV Meter... -
Page 8: Keypad Functions
2.3 Keypad Functions 2.3.1 Setup Menu Scrolling To scroll through the Setup Menu list: • Press the “Menu” key to enter the Setup Menu. • The first Setup Menu item will always be show. • Press the key to scroll to the second item or press the ... -
Page 9: Display Overview
Setup Menu to enter the On-screen text prompt shown sample temperature. when changes must be saved ATC Icon: Indicates a temperature by pressing the “Enter” key on probe is connected to the meter and the keypad. actively sending temperature readings. accumet AB315 pH/mV Meter... -
Page 10: Meter Connections
2.6 Electrode Information Icon Description Electrode Good Icon: Indicates the pH The accumet AB315 pH/mV meter is compatible with pH electrode condition is good, based on electrodes and ORP (redox) electrodes with a BNC the last saved calibration data and resulting slope value. -
Page 11: Chapter 3
Erase all data logs or erase all Setup Menu Item 17 Clear Data calibration logs Setting Options for Erase all data logs, calibration Setup Menu Item 18 Factory Reset logs and settings and return the meter to its factory default state. accumet AB315 pH/mV Meter... -
Page 12: Setup Menu Items
3.2 Setup Menu Items 3.2.1a Viewing the Data Log Press the “Enter” key to view the display log. 3.2.1 View Logs View up to 500 data log points and active pH, RmV and temperature calibrations. When the “Menu” key is pressed, the View Logs setup menu item is always shown first. -
Page 13: Viewing The Calibration Log
CSV format. If printer is selected, the logs are exported in list format. Press the or key to scroll through the Setup Menu list until the Log Export Type item is shown. Press key accumet AB315 pH/mV Meter... -
Page 14: Export All Logs
Press the or key to change the setting to Menu list until the Temp. Calibration item is shown. computer or printer. The temperature value will blink, indicating the Press the “Enter” key to save the change. reading from the ATC probe is being measured. Once the reading is stable, the value will stop blinking and the checkmark icon will be shown. -
Page 15: Measure Mode
Press the or key to scroll through the Setup Menu list until the Calibration Buffer Set item is shown. Press the “Enter” key to save the change. Press the or key to set the pH buffer set. accumet AB315 pH/mV Meter... -
Page 16: Read Type
Press the or key to set the read type. Press the “Enter” key to save the change. Press the “Enter” key to save the change. 3.2.8 Read Type 3.2.9 Timed Interval Set the Read Type as Continuous, Auto-Read or Timed to define how measurements are performed and when When Timed is set as the Read Type, set the time interval measurements are saved and exported. -
Page 17: Calibration Due Alarm
Press the or key to scroll through the Setup Menu list until the Set Date Format item is shown. Press the “Enter” key to save the change. Press the or key to set the date format. accumet AB315 pH/mV Meter... -
Page 18: Set Date Value
b. Press the key to decrease by one day. Press and hold the key to quickly decrease. Press the “Enter” key to save the change. Press the “Enter” key to save the change. The year value will flash. Press the or key to adjust the year. -
Page 19: Audio Mode
Press the or key to select the data log (dAtA) or calibration log (CAL) to be cleared. 3.2.16 Sleep Mode Set the sleep mode on or off. When the meter sleep mode is on, the meter will enter sleep mode when no keys are accumet AB315 pH/mV Meter... -
Page 20: Factory Reset
Press the “Enter” key to confirm the selection. Press the “Enter” key again to ensure all meter data is not accidentally erased. Press the “Enter” key again to ensure the selected log is not accidentally erased. The meter will confirm when the factory reset is fully complete. -
Page 21: Chapter 4
During calibration, each auto-recognized pH buffer value can be accepted or edited as needed. If the pH buffer value needs to be manually adjusted, use the or key to edit the value of the pH buffer at its measured temperature. accumet AB315 pH/mV Meter... -
Page 22: Ph Calibration Example
4.1.3 pH Calibration Example The following is an example of a three point pH calibration using auto-recognized pH 4.01, 7.00 and 10.01 pH buffers. The pH buffers can be read in any order. For this example, pH buffers are read lowest to highest. Press the “Cal”... -
Page 23: Ph Value Vs. Temperature
2.00 4.02 6.97 9.93 11.79 1.02 2.97 6.16 7.79 9.58 11.51 2.00 4.03 6.97 9.89 11.66 2.00 4.06 6.96 9.83 11.43 2.00 4.09 6.97 9.79 11.22 2.01 4.12 7.00 9.78 11.01 2.01 4.16 7.03 9.78 10.81 accumet AB315 pH/mV Meter... -
Page 24: Millivolt (Mv) Offset Adjustment
4.2 Millivolt (mV) Offset 4.3 Temperature Adjustment Calibration Oxidization Reduction Potential (ORP or Redox) is useful as The thermistor sensor used for automatic temperature a relative indicator of the oxidizing or reducing nature of a compensation and measurement is both accurate and sample solution. -
Page 25: Chapter 5
• Replace all pH buffers exported at the selected time intervals, from 5 seconds to 60 minutes, the entire time the meter is in the • Replace pH electrode measurement mode. Refer to the Troubleshooting section for more recommended actions. accumet AB315 pH/mV Meter... -
Page 26: Data Viewing
5.4 Data Viewing • Only one command can be executed at a time. A new command cannot be issued until the previous command is done and prompt is given, shown as Store up to 500 data points in the meter memory. Use the the greater than symbol (“>”) followed by a space. -
Page 27: Chapter 6
Perform a factor reset on the meter Fisher Scientific • pH Electrode Icon: 300 Industry Drive Pittsburgh, PA 15275 o Troubleshoot pH buffers and pH electrode o Replace pH buffers o Clean and condition pH electrode o Replace pH electrode as needed accumet AB315 pH/mV Meter... -
Page 28: Chapter 7
Chapter 7 Memory Non-volatile Input BNC, ATC Data Output Computer or printer Meter Info Data Output CSV or print Format Warranty 3 years Certifications CE, TUV 3-1, FCC Class A 7.1 Meter Specifications Enclosure IP-54 100-240 VAC, 50-60Hz, 9 DC Power adapter, 1.3A Range... -
Page 29: Meter Dimensions
The manufacturer will not be responsible for damage resulting from careless or insufficient packing. A restocking charge will be made on all unauthorized returns. Note: The manufacturer reserves the right to make improvements in design, construction, and appearance of products without notice. accumet AB315 pH/mV Meter... -
Page 30: Chapter 8
Chapter 8 Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference Regulatory when the equipment is operated in a commercial environment. -
Page 31: Weee Compliance
Mehr Informationen über die Einhaltung dieser Anweisungen durch Thermo Scientific, dieVerwerter und Hinweise die Ihnen nützlich sein können, die Thermo Fisher Scientific Produkte zu identizfizieren, die unter diese RoHS. Anweisungfallen, finden Sie unter accumet AB315 pH/mV Meter... -
Page 32: Chapter 9
Catalog Number accumet AB315 pH/mV bench meter with electrode stand, universal 110-240V power supply 13-636-AB315 accumet AB315 pH/mV bench meter standard kit with pH/ATC epoxy-body double junction gel- 13-636-AB315A filled electrode, electrode stand, universal 110-240V power supply accumet AB315 pH/mV bench meter bio kit with pH glass-body double junction refillable...
