superbrightleds BRI819P-B-D User Manual

Important: Read all instructions prior to installation.

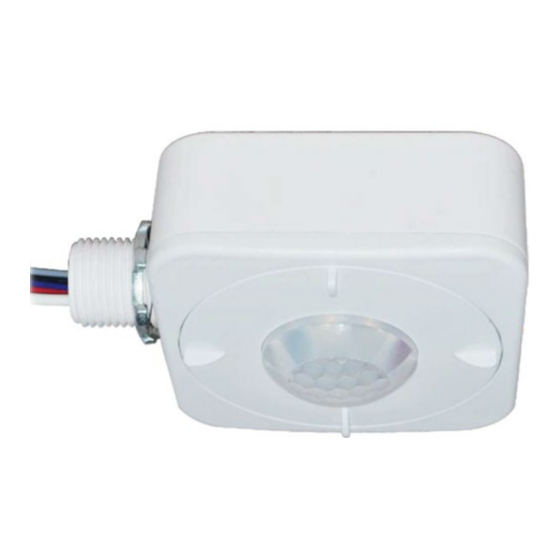

Fixture-Mounted Motion Sensor

Specifications

Model
Maximum Detection Radius
Maximum Mounting Height
Operating Temperature
Dimming
¹Lights that use a 1–10 V dimming driver will not completely turn off when at the zero setting on the sensor.

DIP Switch Settings

UP
UP
UP
UP
UP
1 2
1 2
1 2
1 2
1 2 3
Setting
Switch Pair Position
Sensitivity adjusts detection area.
Time adjusts the amount of time between when motion is detected and when the light enters standby mode.
Light adjusts the daylight threshold which allows the light to stay off if motion is detected and the room is already sufficiently illuminated.
Standby Level adjusts the dimming level of the light during standby mode. It should be noted that "0" setting on a 1–10 V light will result in the
light being set at 10% as the driver in this case cannot dim beyond this level.
Standby Time adjusts the amount of time the light stays in standby mode before shutting off completely.
BRI819P-B-D
30 ft (9.14 m)
40 ft (12.2 m)
-40°–167° F (-40°–75° C)
3 4 5 6 7
3 4 5 6 7
3 4 5 6 7
3 4 5 6 7
4 5 6 7 8
Sensitivity
1 and 2
20% 10 seconds
50% 1 minute
75% 5 minute
100% 15 minute
Safety and Notes
• Product should be installed and serviced in accordance with applicable
national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power
source and circuit breakers are switched off before performing
any installation or wiring procedures.
0–10 V¹
8 9 10
8 9 10
8 9 10
8 9 10
9 10
Time Light
3 and 4 5 and 6
disabled
10 lx
30 lx
50 lx
Rev Date: V1 07/15/2021
4400 Earth City Expy, St. Louis, MO 63045
User Manual
BRI819P-B-D
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
Standby Level Standby Time
7 and 8 9 and 10
0 always on
10 1 minute
30 30 minute
50 60 minute
866-590-3533 superbrightleds.com
