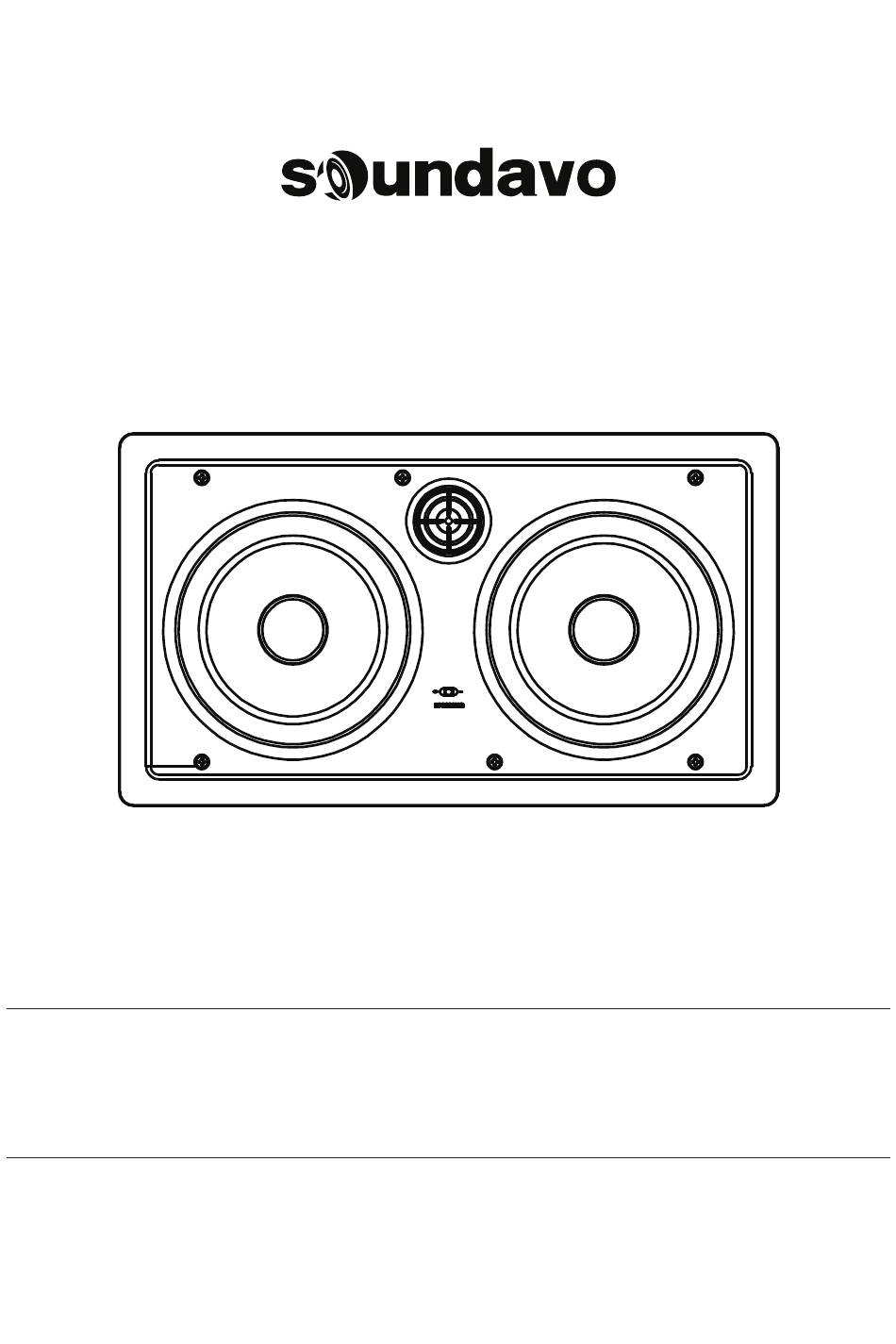

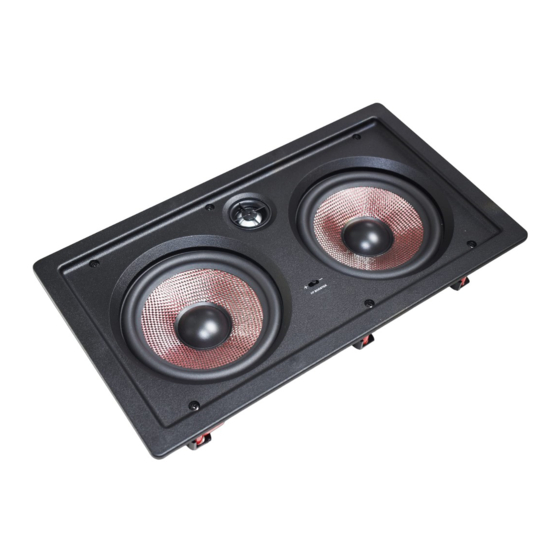

IW-680CF
Dual 6.5" 2-Way In-Wall LCR Speaker
Dear Customer, Thank you for choosing Soundavo speaker products. Take the time to read this
manual carefully before installing your speakers. It contains tips for getting the most benefit and
instructions for using them safely. We strongly recommend that you keep the packaging and this
manual for future use.
OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IW-680CF and is the answer not in the manual?

Questions and answers

Related Manuals for Soundavo IW-680CF

Summary of Contents for Soundavo IW-680CF

  • Page 1 IW-680CF Dual 6.5” 2-Way In-Wall LCR Speaker Dear Customer, Thank you for choosing Soundavo speaker products. Take the time to read this manual carefully before installing your speakers. It contains tips for getting the most benefit and instructions for using them safely. We strongly recommend that you keep the packaging and this manual for future use.

  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES • These speakers are intended for indoor use • Do not use cleaning fluids, solvents, or other only. chemicals to clean the speaker frames or grilles. • Do not expose these speakers to water or moisture of any kind. •...

  • Page 3: Speaker Wire Preparation

    SPEAKER WIRE PREPARATION Before attempting to make any connections it on each channel the same, which ensures that is best to look at the situation, get all the the volume levels, frequency ranges, and necessary materials together, and then make tonalities are identical.

  • Page 4: Speaker Placement

    Vertically lining up the cabinet with the left the cabinet positioned horizontally, install the and right speakers while not necessary, will IW-680CF into the wall as close to the screen as improve the performance. possible. This most often means it will need to be...
  • Page 5 Please check with installer/dealer for mounting hole. more information about cable installation. After • Mark the hole. A template of the IW-680CF the cable has been properly installed, you are included in the box. position the template in the ready to mount the speakers.

  • Page 6: Speaker Installation

    SPEAKER INSTALLATION The unique integral six foot mounting system 3. Once the mounting feet are turned inward to incorporated into each IW-680CF speaker clear the opening, and insert the speaker into allows for a quick installation by following these the wall. Position the speaker into the hole in...

  • Page 7: Mounting Feet

    Speaker Mounting Feet 4. Locate the opposing dogleg screw and repeat the process, as these two tightened dogleg screws will hold the speaker in place temporarily. 5. Repeat the same process with the other doglegs to rmly secure the speaker in place. 6.

  • Page 8: Tone Controls

    For home theater use, we recommend the Your IW-680CF speaker tweeter come from the following tips: factory with the facing straight. This will result in the overall direct and smooth response. • If the speakers are being used as main front...

  • Page 9: Painting The Speakers

    Only PRODUCT SPECIFICATIONS IW-680CF Dual 6.5” 2-Way In-Wall LCR Speaker • Stereo / Center Channel In-Wall LCR Speaker • 25MM Aluminum with +/- 3dB Boost • Dual 6.5” carbon fiber woofer with rubber surround •...
  • Page 10 The list of authorized distributors is available on the website: http://www.soundavo.com To validate your warranty, you must produce as proof of purchase the original of your invoice containing the date of your purchase and the stamp of your dealer.
