Soundavo AT-6CF Owner's Manual

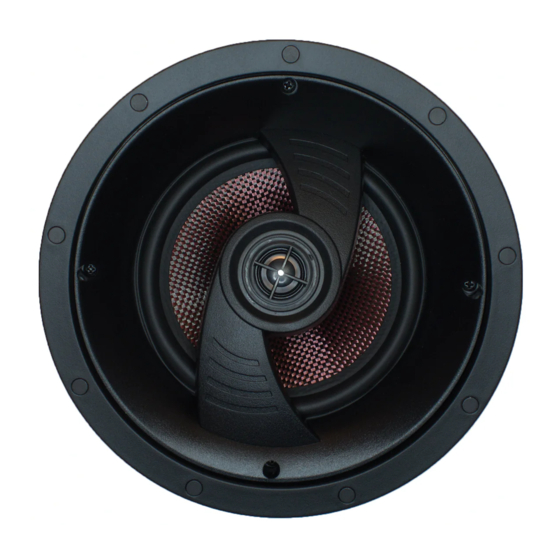

2-way angled in-ceiling loudspeaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

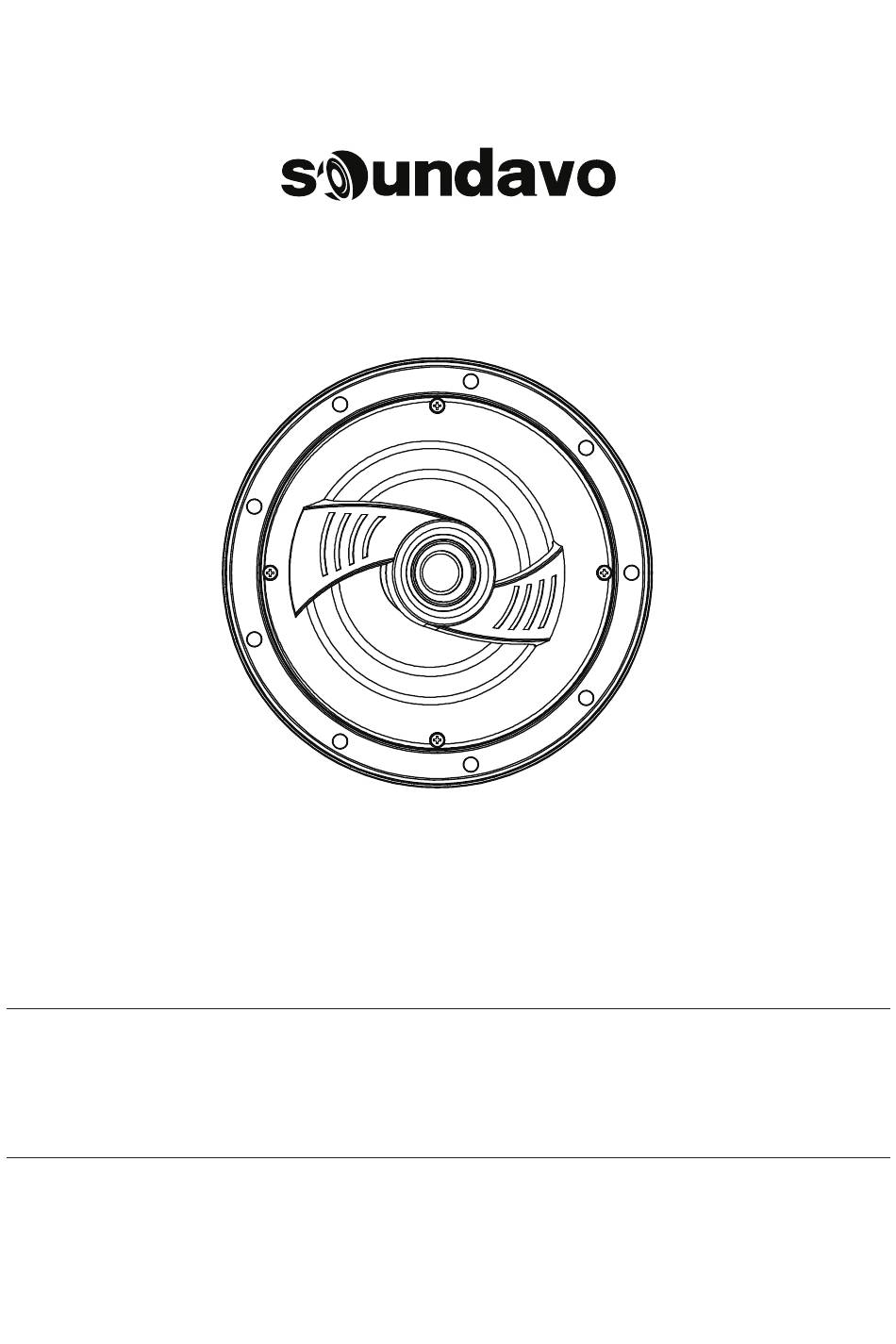

www.soundavo.com
AT-6CF
2-Way Angled In-Ceiling Loudspeaker
Dear Customer, Thank you for choosing Soundavo speaker products. Take the time to read this
manual carefully before installing your speakers. It contains tips for getting the most benefit and
instructions for using them safely. We strongly recommend that you keep the packaging and this
manual for future use.
OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-6CF and is the answer not in the manual?

Questions and answers

Related Manuals for Soundavo AT-6CF

Summary of Contents for Soundavo AT-6CF

  • Page 1 AT-6CF 2-Way Angled In-Ceiling Loudspeaker Dear Customer, Thank you for choosing Soundavo speaker products. Take the time to read this manual carefully before installing your speakers. It contains tips for getting the most benefit and instructions for using them safely. We strongly recommend that you keep the packaging and this manual for future use.

  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES • These speakers are intended for indoor use • Do not use cleaning fluids, solvents, or other only. chemicals to clean the speaker frames or grilles. • Do not expose these speakers to water or moisture of any kind. •...
  • Page 3 Wall Our In-ceiling speakers are special designed speakers are traditionally square, like windows and fine tuned by Soundavo engineering team, and doors, while ceiling speakers are tradition- provide the excellent sound quality and styling ally round, like light fixtures.

  • Page 4: Speaker Wire Preparation

    SPEAKER WIRE PREPARATION Before attempting to make any connections it on each channel the same, which ensures that is best to look at the situation, get all the the volume levels, frequency ranges, and necessary materials together, and then make tonalities are identical.

  • Page 5: Positioning The Speakers

    For the Home Theater setup, the AT-6CF In-ceiling speakers can be used as front or rear channel speakers, and it should be located behind the main listening position and above ear level, if possible.

  • Page 6: Installation

    INSTALLATION Mounting surface preparations / Finished ceilings and walls Preparing the surfaces / finishes of walls and ceilings Before installing the speakers, it is necessary to install the cables in the intended location. Contact your dealer for more information on cable installa- tion.
  • Page 7 4. Cutting the hole Caution : this is the most important part of the entire installation. If you are uncertain about obstruc- tions in the mounting area, you should start by cutting a small hole within the penciled area with a drywall saw.
  • Page 8 3. Make sure the mounting feet are turned inward to clear the opening and insert the speaker into the ceiling or wall. Position the speaker into the hole.
  • Page 9 Note : The flange of the speaker is designed to flex and conform to any small imperfections in the wall surface. Tighten the 6 screws on the front of the baffle only enough to make the flange become snug against the ceiling or wall. As you tighten the screws, the feet will automatically flip into an outward position, thereby clamping the drywall between the feet and the flange.

  • Page 10: Painting Instructions

    The surface should be cleaned with a light solvent to remove any dust or residue. Soundavo recommends a light spray-painting using 5 parts thinning agent to 1 part paint. Do not paint the grid while they are attached to the speaker, before proceeding with installation.

  • Page 11: Product Specifications

    PRODUCT SPECIFICATIONS AT-6CF 2-way 15 Degree Angled In-Ceiling Loudspeaker • Drivers are angled at 15° to direct sound towards your listening position • Ideal for the front/rear left, right, or center channel of an in-ceiling home theater system • 20mm Aluminum dome tweeter •...
  • Page 12 The list of authorized distributors is available on the website: http://www.soundavo.com To validate your warranty, you must produce as proof of purchase the original of your invoice containing the date of your purchase and the stamp of your dealer.
