  • Page 1 GDG360BT Request To Exit Button User Manual...

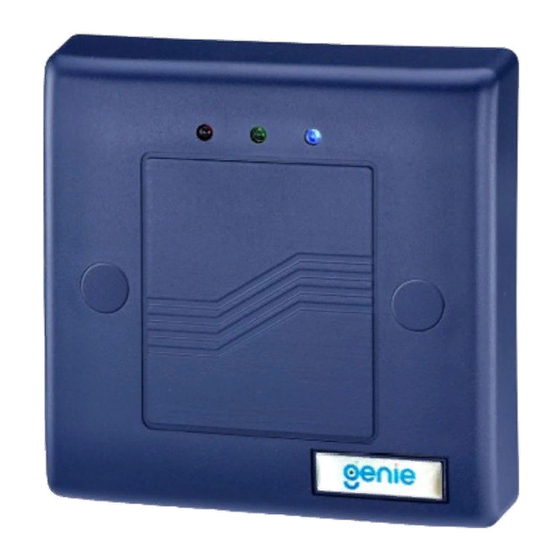

  • Page 2 The CAP-REX-1G is a contactless proximity exit button based on capacitive technology. It also equipped with mechanical override function. In the event of power failure or electronic component failure, the button will still function as a normal mechanical exit button. Function •...
  • Page 3 Wiring Label Description +VDD Power input (+12V ~ +24VDC) RTE_COM RTE_NO Exit button output (dry contact) RTE_NC External device to trigger the door open, active low Signal ground (0 VDC) DIP Switch Setting No. 1,2,3,4 are used for adjusting door open duration. ON = Valid OFF = Invalid Door open duration = To add all the ON position switch numbers...
  • Page 4 www.genieaccess.com...
